SUN SATFRITHU
WED
TUE
MON
OFF
TIMER
ON
WEEKLYWEEKLY
NON STOPNON STOP
12
NEXT DAY
ONON
OFFOFF
OFFOFF
CLOCK
ADDRESSADDRESS
PM
AM
PM
AM
PM
AM
LOUVER
AUTO
OPERATION
TEMP
ENERGY
SAVE
C
F
ON
OFF
ANTI
FREEZE
COOL
FAN
DRY
HEAT
AUTO
FIXED
DEFROST
ON OFF
ON OFF
8080 8181 8282 8383 8484 8585 8686 8787 8888 8989 9090 9191 9292 9393 9494 9595 9696 9797 9898 9999
6060 6161 6262 6363 6464 6565 6666 6767 6868 6969 7070 7171 7272 7373 7474 7575 7676 7777 7878 7979
4040 4141 4242 4343 4444 4545 4646 4747 4848 4949 5050 5151 5252 5353 5454 5555 5656 5757 5858 5959
2020 2121 2222 2323 2424 2525 2626 2727 2828 2929 3030 3131 3232 3333 3434 3535 3636 3737 3838 3939
0000 0101 0202 0303 0404 0505 0606 0707 0808 0909 1010 1111 1212 1313 1414 1515 1616 1717 1818 1919
x100x100
ZONE
CENTRAL CONTROL
SETTINGMONITOR MEMORY
ALL
ERROR
TEST
ON OFF
FILTER
3
2
1
0
14
1
All ON/OFF button
13
ON/OFF button
2
All ON/OFF LED
3
Back button
4
Zone button
5
Energy save button
6
Fan control button
7
Master control button
8
Anti freeze button
9
Horizontal Air flow direction and swing button
10
Vertical Air flow direction and swing button
11
Temp button
Filter reset button
15
Delete button
16
Test button
19
Check button
17
Set button
18
Set LED
20
Group setting button
21
Memory setting button
22
Timer set button
23
Time button
12
Day off button
24
Timer copy button
25
Timer mode button
26
Clock adjust button
27
Day button
28
Timer delete button
29
Memory operation button
30
Central button
31
All/Group button
32
Select 100 button
33
34
Day of the week display
35
Status display
37
Central control display
38
Filter reset display
Zone display
39
Temperature display
40
Master control display
43
Energy save display
41
Fan control display
42
Transmit indicator display
36
Fixed cooling or heating
operation display
44
Anti freeze display
45
Defrost display
46
Air flow direction display
47
ON/OFF display
48
Group control display
49
ON/OFF time display
50
Timer mode display
51
Clock and address
display
52
Select button
Changeover the timer mode (NON STOP, OFF, ON1, ON2, WEEKLY).
Setting of dates, hours, minutes and on-off time.
Copying the timer condition (the day before).
Temporary cancellation of one day timer.
Setting of on-off time.
Setting of group of some remote controller group connected to the central remote controller.
Operating the memorized condition.
Forbid some operation of the individual remote controller.
Changeover of control unit (ALL GROUP R.C.GROUP).
Remote controller group indication by hundreds.
Confirmation of address setting and error code.
Change to remote controller and group number.
Change over the zone.
Delete of setting.
Transmission of all changed setting details.
Blinks when transmission is necessary.
Starting energy save operation.
Setting of indoor temperature.
ON/OFF setting by groups.
38
37
36
3534
39
40
45
44
43
4241
46
47
52
51
50
49 48
Memory the setting contents of all.

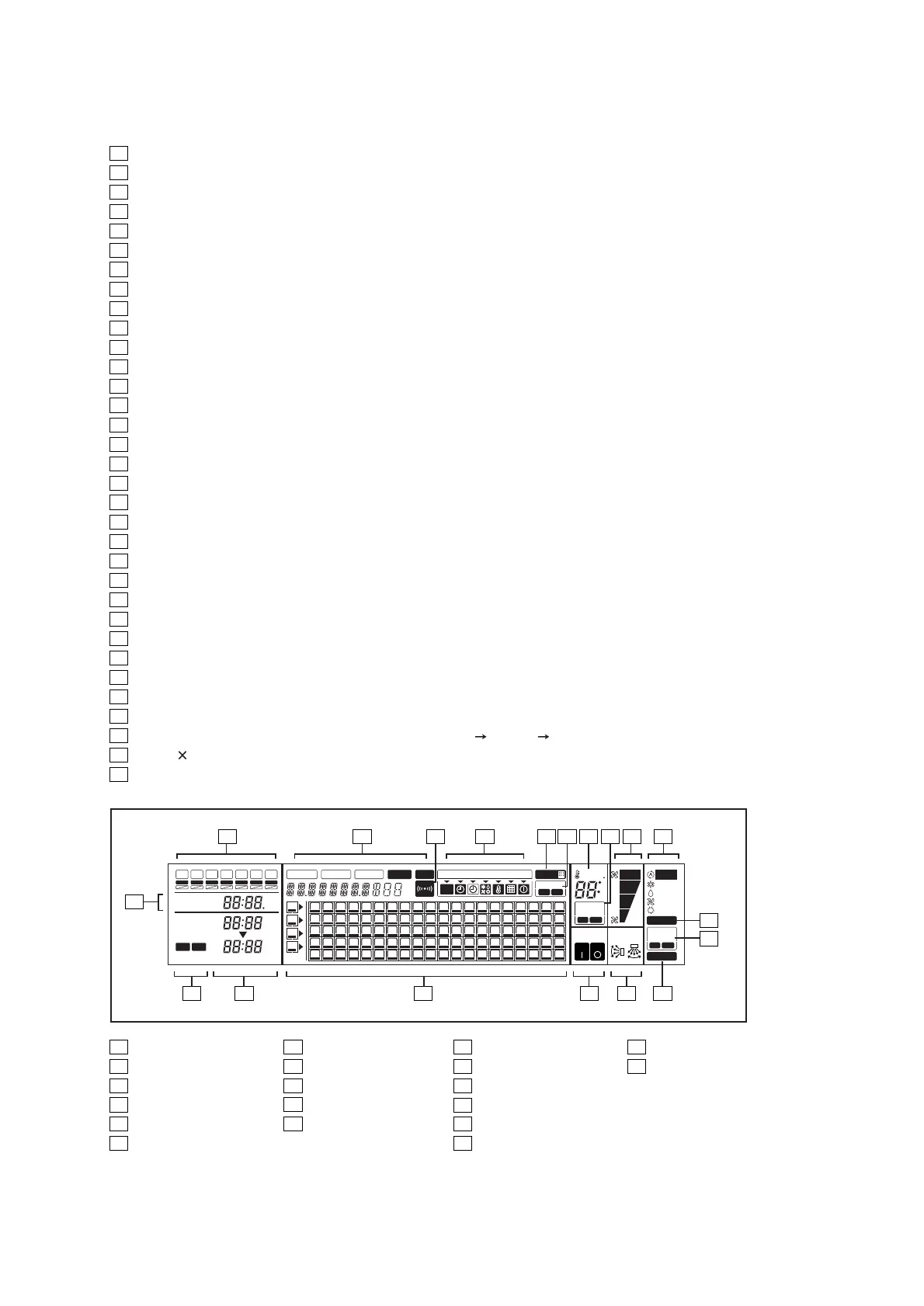

Display panel
