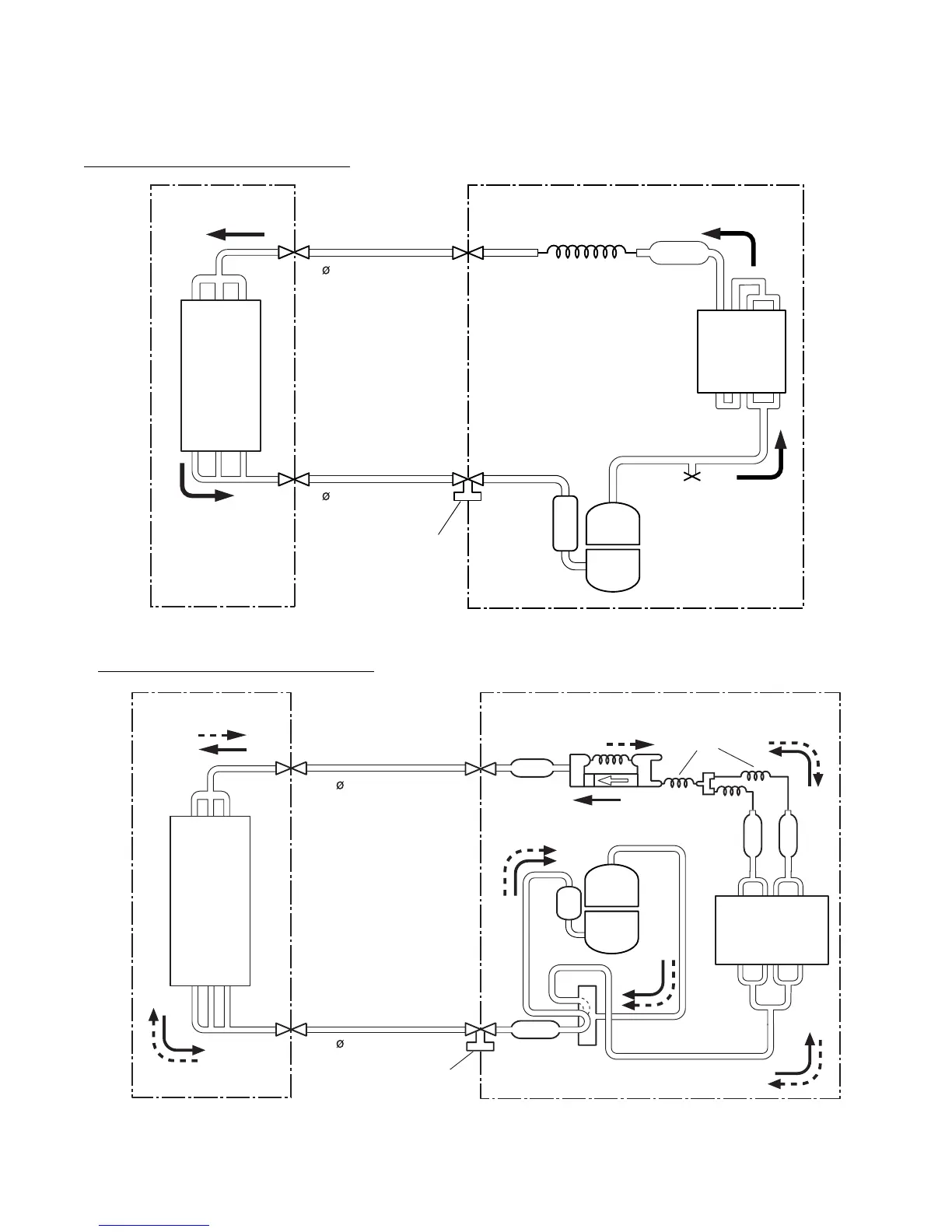

REFRIGERANT SYSTEM DIAGRAM
Models
:
ABY14FBBJ / AOY14FSDJ
Refrigerant pipe
12.7 mm (1/2")
Refrigerant pipe
6.35 mm (1/4")
Charging valve
INDOOR UNIT
Evaporator
Capillary tube
Compressor
Strainer
OUTDOOR UNIT
Condenser
Models : ABY14UBBJ / AOY14USDJL
2004.03.19 5
Evaporator
Refrigerant pipe
12.7mm(1/2")
Refriger
Distributor
ant pipe
6.35mm(1/4")
INDOOR UNIT
Strainer Strainer
Strainer
Charging valve
4-W
Muffler
ay
valve
Compressor
Capillary
tube
OUTDOOR UNIT
Condenser
