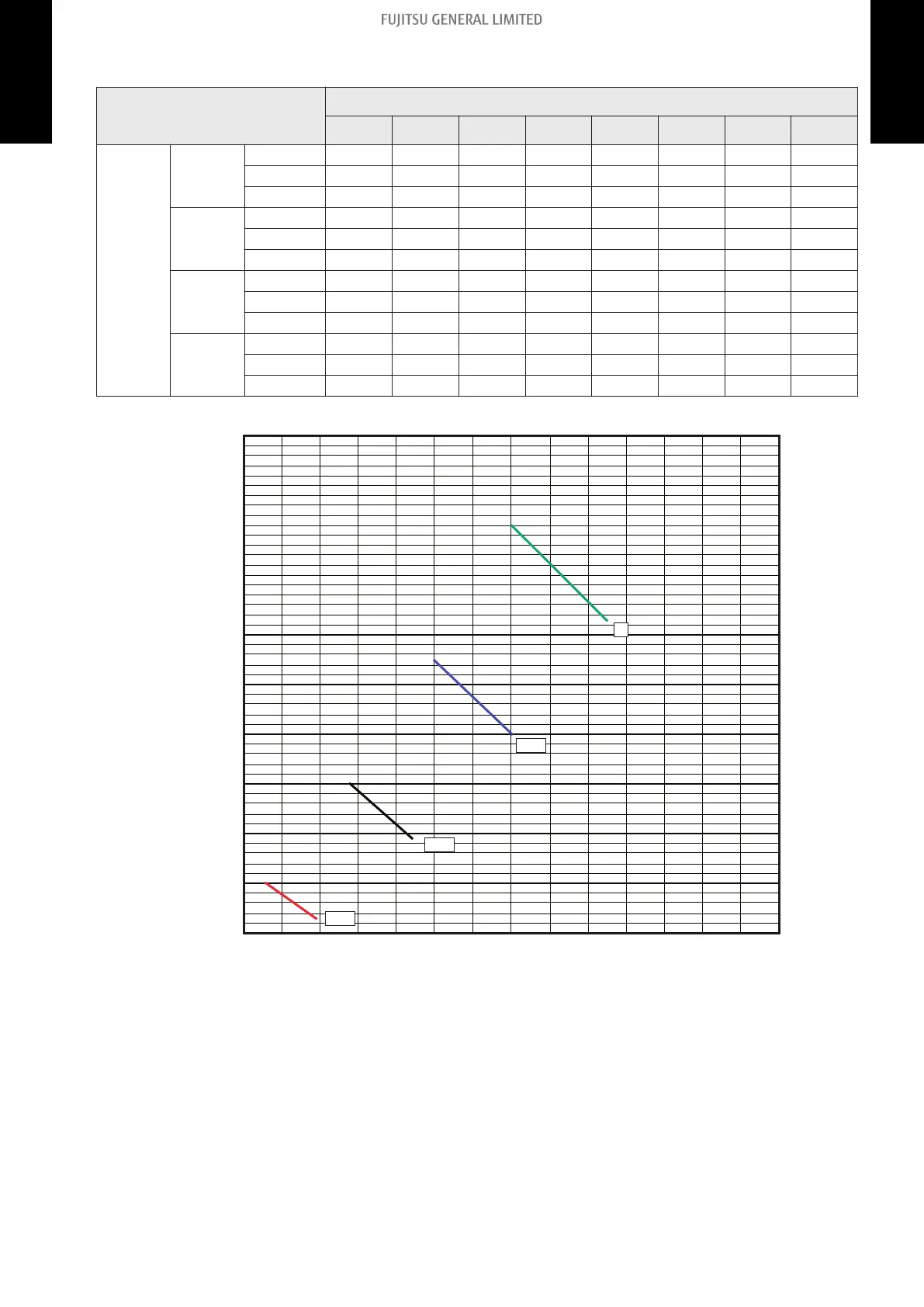

Fujitsu ABYG36LRTE - Model: ARYG36 LMLE (Static pressure mode 2)

¢ Model: ARYG36LMLE (Static pressure mode 2)
Static pressure (Pa)
33 40 49 60 70 85 93 112
Fan
speed
HIGH
m3/h — — — — — — 1,850 1,600
l/s — — — — — — 514 444
CFM — — — — — — 1,089 942
MED
m3/h — — — — 1,600 1,400 — —
l/s — — — — 444 389 — —
CFM — — — — 942 824 — —
LOW
m3/h — — 1,340 1,180 — — — —
l/s — — 372 328 — — — —
CFM — — 789 695 — — — —
QUIET
m3/h 1,090 960 — — — — — —
l/s 303 267 — — — — — —
CFM 642 565 — — — — — —
Airflow (m
3
/h)
60
40
130
Static pressure (Pa)
900 1,100 1,500 1,700 1,900 2,100 2,300
Q-h Characteristic curve
1,300
50
30
100
90
70
80
120
110
Low
Quiet
Med
Hi
- 83 -
6-2. Duct type 6. Fan performance
