Fujitsu ADUH18LUAS1 - 4-2. Slim duct type

¢ Models: ASUH07LPAS, ASUH09LPAS, ASUH12LPAS, and
ASUH15LPAS
Unit: in (mm)
32-13/16 (834)
10-5/8 (270)
8-3/4 (222)
1/8 (3.0)
(32-13/16 [834])
13-5/8 (346) 14 (356)
12-7/8 (327) 4-7/16 (113)12-7/8 (327)2-5/8 (67)
2-1/2 (64)
1-7/8 (48)
3-5/16 (84)
1-11/16 (43)
(10-5/8 [270])
1-11/16 (43)

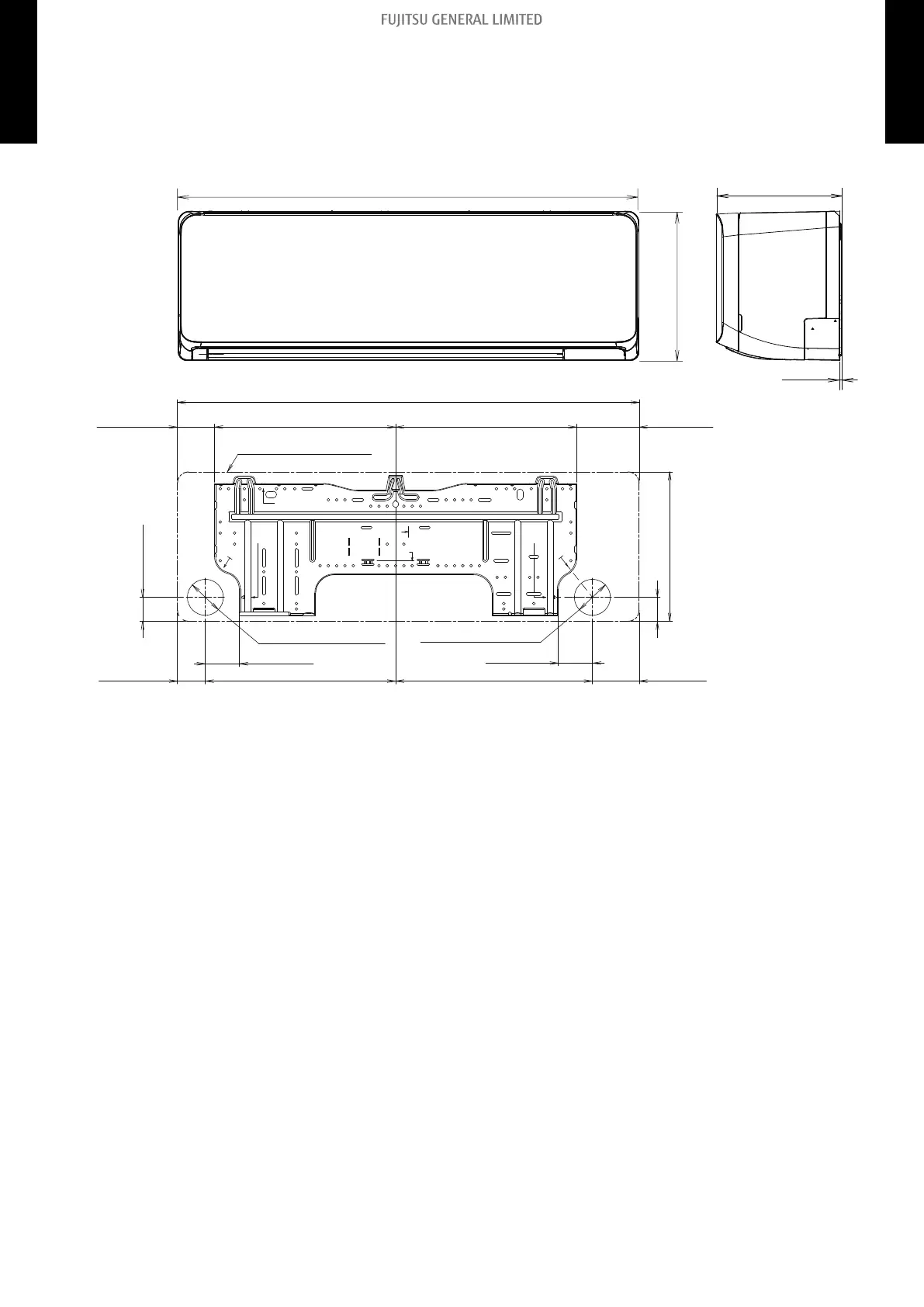

Outline of indoor unit
for pipe inlet Ø 2-9/16 (65) for pipe inlet Ø 2-9/16 (65)
2-7/16 (62)
- 22 -
