5. CONTROL SYSTEM

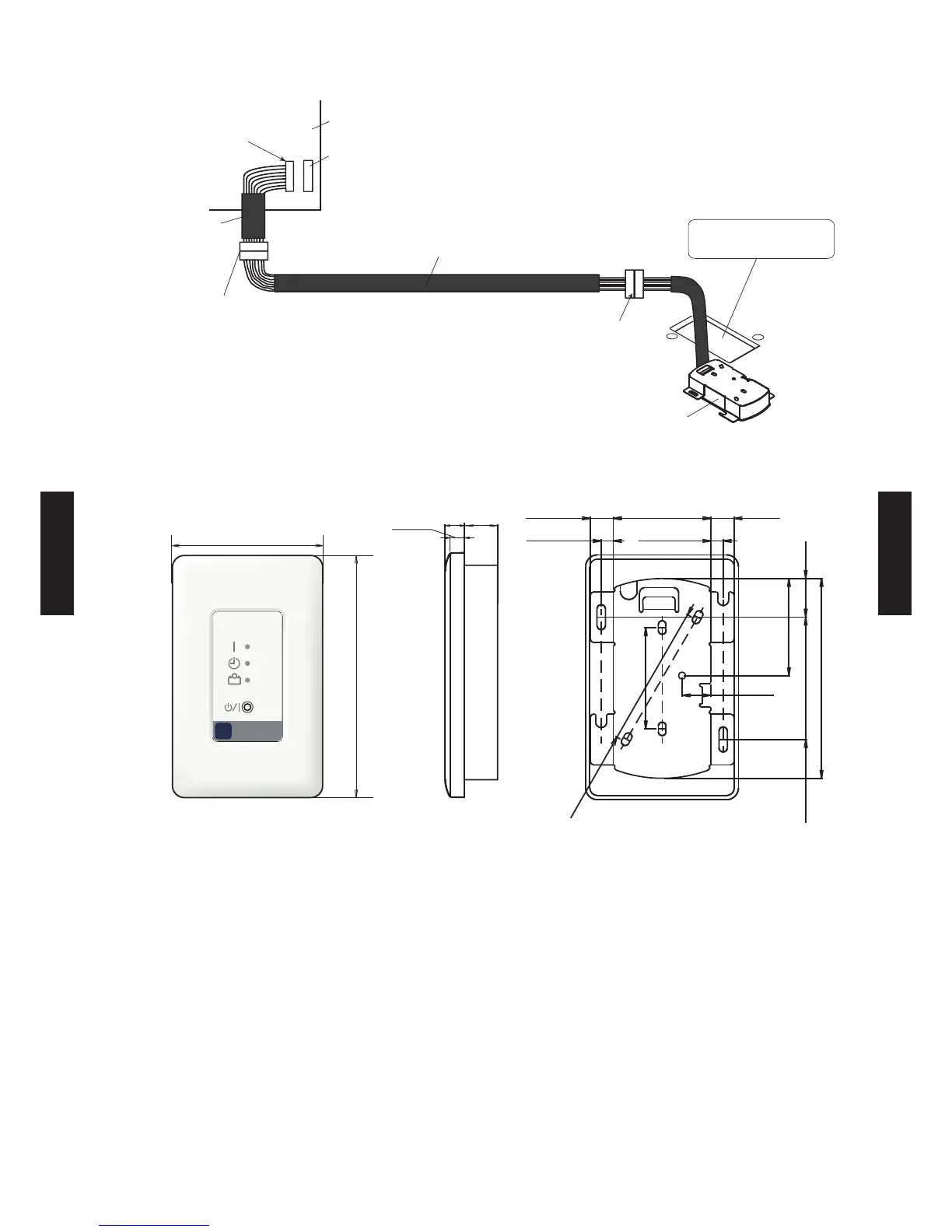

ELECTRICAL WIRING

Connection cable A
(
L = 5m)...Standard accessory
Connection cable C
(
L = 10m
)
...Optional service parts
Connection cable B
(
L = 0.2m
)
...Standard accessory
PCB
Connected to
CN13 of PCB
CN13
Connected to IR Receiver Unit
IR Receiver Unit
Connected to
Connection cable
60mm x 120mm
hole
DIMENSIONS

Front View Side View
Rear View
11.5
8.5
145
90
18.5
60
57.6
83.5
22.9
118.4
72.4
13.6 13.6
57.4
7.2 7.2
17
[Unit : mm]
- (05 - 49) -
