Fujitsu AGYF14LAC - Page 20

192008.05.08

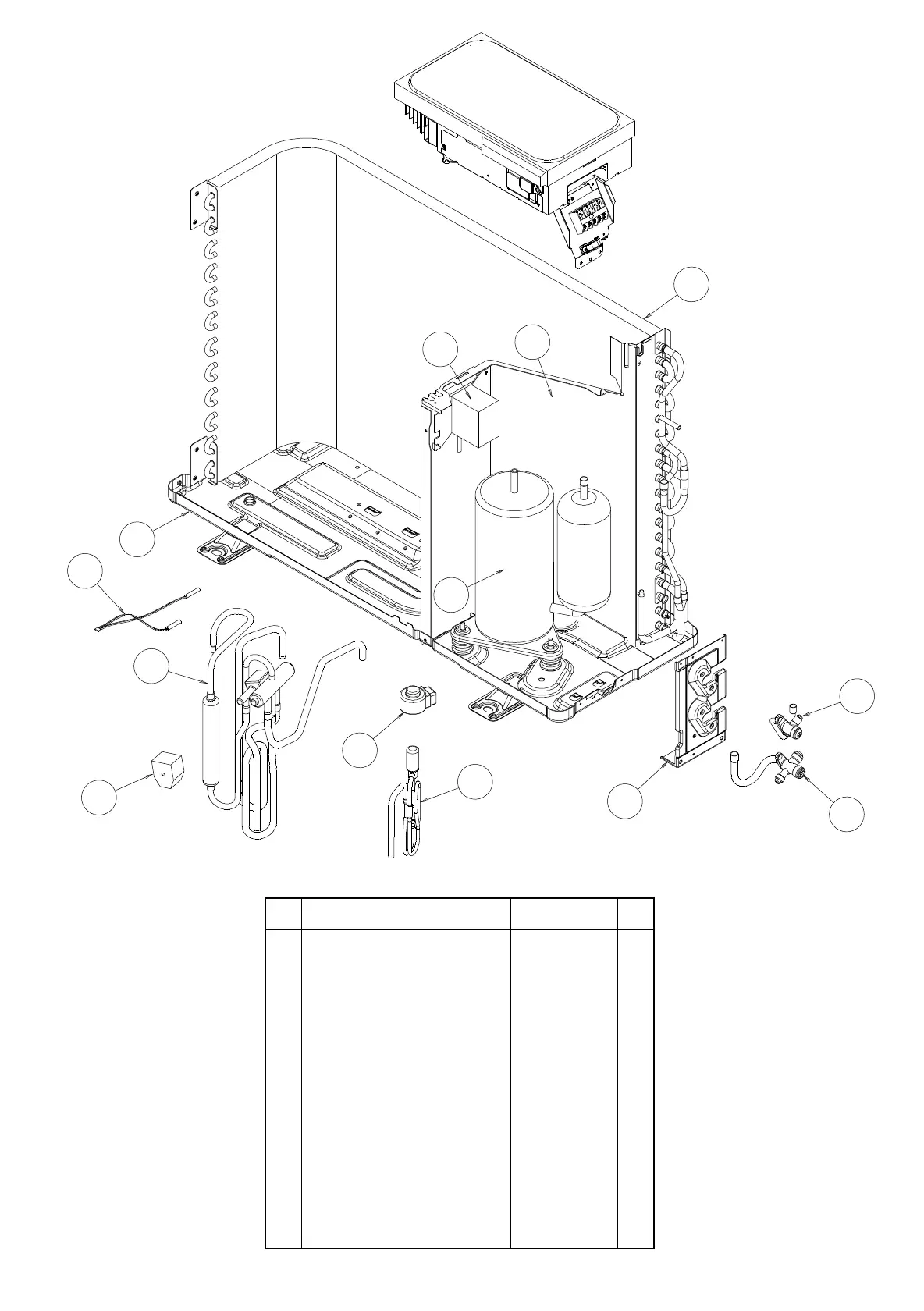

OUTDOOR UNIT
AOYV09LAC
AOYV12LAC
17
16
18
15
19
20
21
23
22
24
25
27
15 Condenser Assy
Separater B
17 Reactor Assy
18 Compressor Assy
19 2-Way Valve Assy
20 3-Way Valve Assy
Parts numberDescriptionRef
9314106019
9313815011
9900343019
9315206015
9314554018
9314022012
16
21 Bracket (Valve) 9331649001
27 Base Assy 9316885004
26 Thermistor Assy (Discharge) 9900473013
25 4-Way Valve Assy 9314093012
24 Solenoid 9970033018
23 Coil (Expansion Valve) 9900057039
22 Pulse Motor Valve Assy 9314557019
26
