En-3
*1) Before starting operation, make sure that the intake grille is closed
completely. Incomplete closing may aect the proper function or
performance of the product.
*2) Indicator lamps light in the following conditions.
Name
Color Operation or condition
Operation Green Normal operation
Timer Orange Timer operation
Economy Green Economy operation
10°C Heat operation
-
Orange Function not available.
(If this indicator lamp blinks, refer
to page 11 to page 13.)
3.2. Remote controller
When you use the optional remote controller, the appearance
and the operation procedure may dier.
For details, refer to the operation manual of each remote
controller.
: The setting must be done while the setting screen is displayed
for each function.
: The button is controllable only when the air conditioner is
operating.

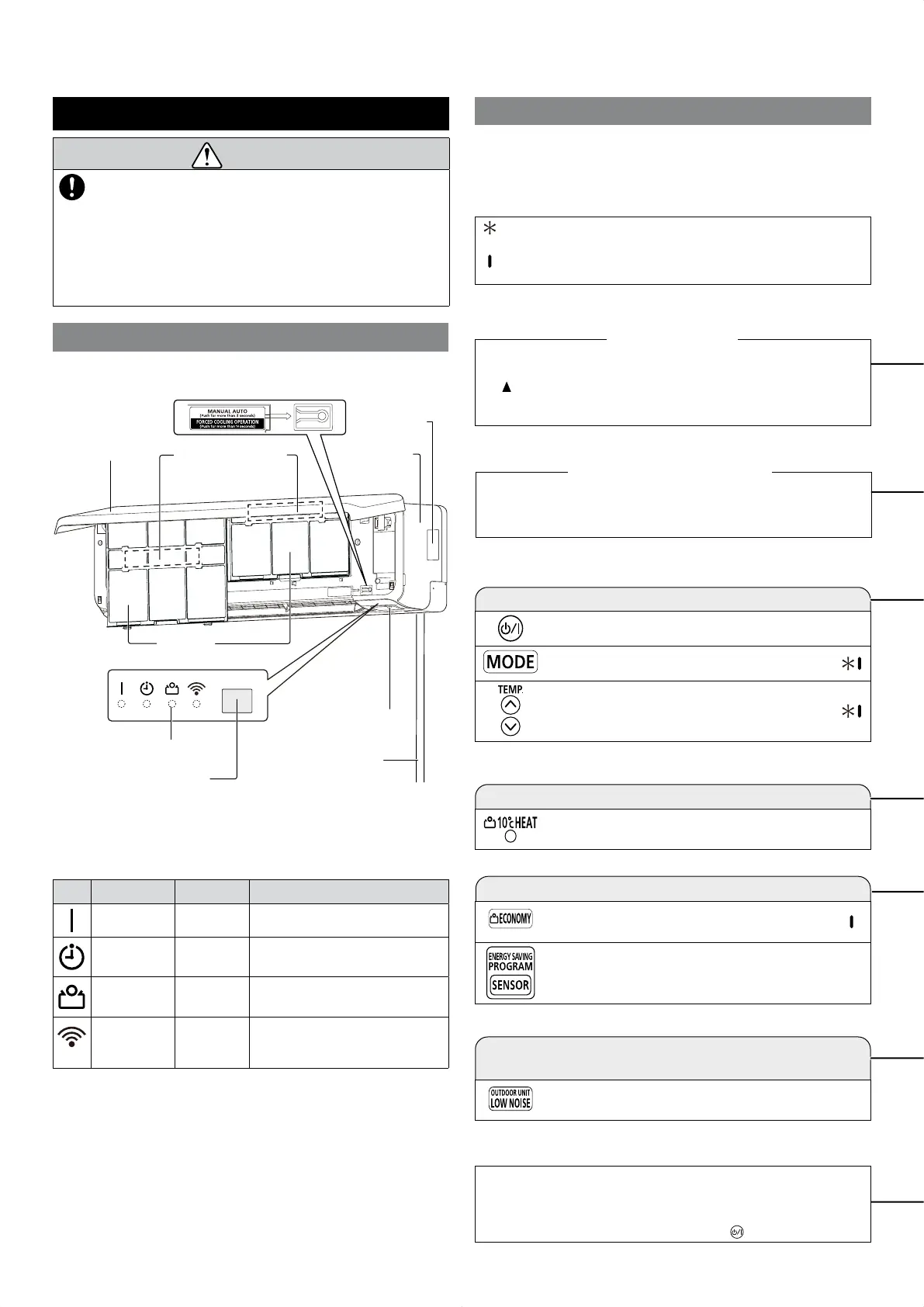

3. NAME OF PARTS
CAUTION
For appropriate signal transmission between the remote
controller and the indoor unit, keep the signal receiver
away from the following items:
- Direct sunlight or other strong lights
- Flat-panel television screen
In rooms with instantaneous uorescent lights, such as
inverter type ones, the signal may not be transmitted
properly. In such a case, consult the store of purchase.
For Energy saving operations ...... Refer to page 7.
Activates or deactivates the Economy
operation.
Activates or deactivates the Energy saving
program that uses the occupancy sensor
.
For Basic operations ..................... Refer to page 5.
Starts or stops the air conditioner operation.
Changes the operation mode.
Adjusts the setting temperature.
For Outdoor Unit Low Noise operation
... Refer to page 9.
Activates or deactivates the Outdoor Unit Low
Noise operation.
Remote controller display
In this section, all the possible indicators are displayed for description.
In actual operation, the display is linked with the button operation, and
only shows the necessary indicators for each setting.
Do not press this button in normal use.
It starts the test run (for use by authorized service personnel only).
NOTE:
• If the test run starts unintentionally, press
to quit the test run.
Signal transmitter
Aim at the signal receiver of the indoor unit properly.
• Operating range is approximately 7 m.
• [
] will appear when the signal is transmitted.
• The indoor unit will emit a beep when it receive the signal
properly. If there is no beep, press the button again.
For 10°C Heat operation ............... Refer to page 9.
Activates the 10°C Heat operation.
Rating label
For Manual Auto operation and Filter indicator reset
(Refer to page 13.)
Air cleaning lters
(Apple catechin lter,
Ion deodorization lter)
Intake grille
*1)
Front panel
Air lters
Occupancy sensor
(Refer to page 7.)
Drain hose
Indicator lamps
*2)
Remote controller
signal receiver
3.1. Indoor unit
