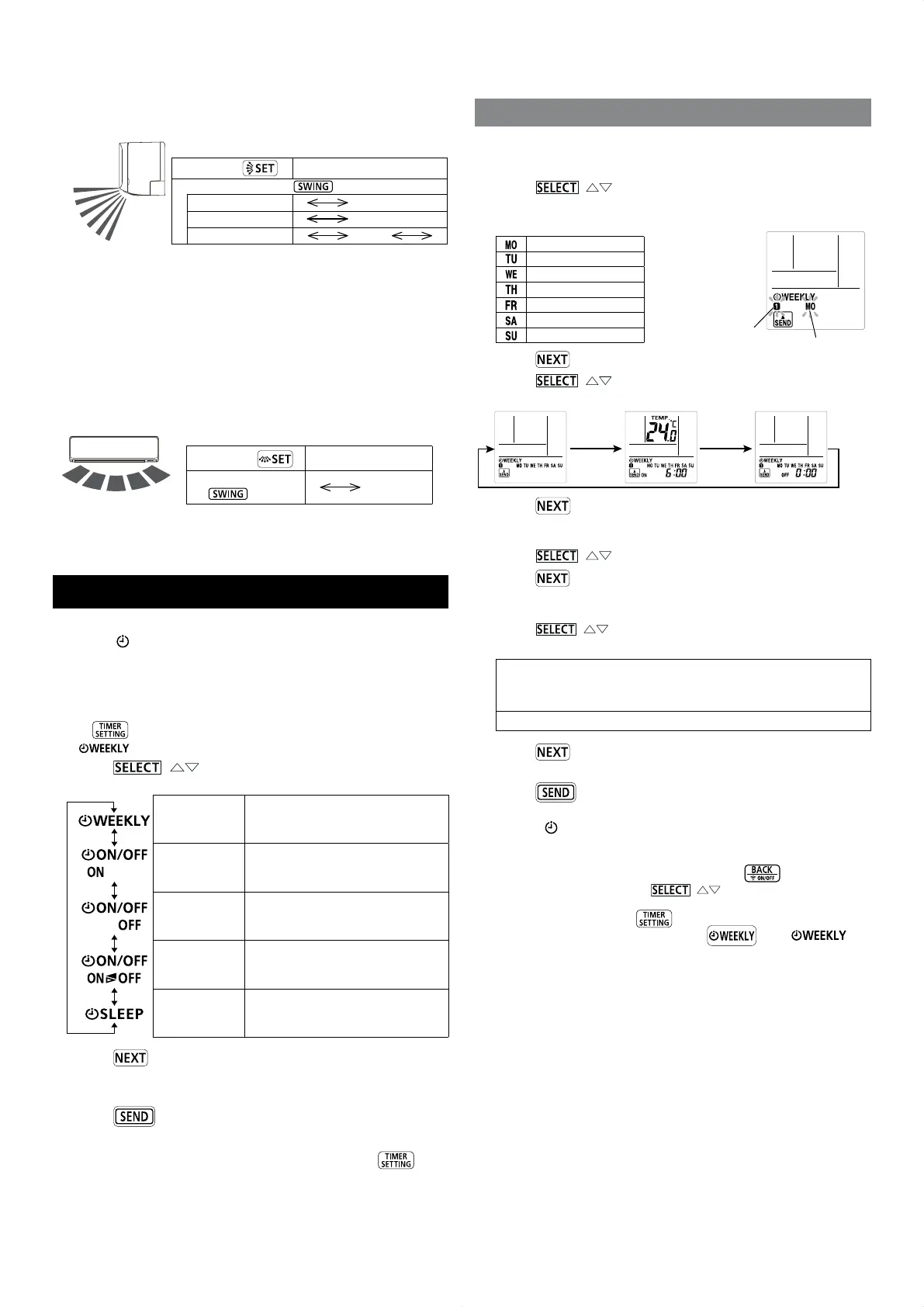

En-6
Airow direction range
Up/down airow direction
1
2
3
4
5
6
Change by
1
2
3
4
5
6
Swing operation by
Cooling, Dry 1 4
Heating 3 6
Fan * 1 4 or 3 6
* The Swing operation range depends on the airow direction set before
the Swing operation.
NOTES:
Do not adjust the horizontal louver position by hand.
In the Auto or Heating mode, the airow direction stay position 1 for
a while from the start of the operation.
In the Cooling or Dry mode, position 1-3 is recommended to prevent
condensation drips damaging your property. If position 4-6 keeps for
30 minutes or more in these modes, the airow direction changes to
position 3 automatically.
Left/right airow direction
3
4
5
2
1
Change by
1
2
3
4
5
Swing operation
by
1 5
NOTE:
In the Auto mode operation, you cannot change the airow direction
for a while from the start of the operation.
6. TIMER OPERATIONS
NOTE:
When [
] indicator on the indoor unit blinks, set the clock and
timer again. This blinking shows that the internal clock go wrong due
to an interruption of the power supply. (Refer to page 11.)
Timer setting procedure
Before setting the timer, adjust the clock.
Press .
on the remote controller display will blink.
5. Press
()
to choose timer operation.
The timer operation will change as follows:
[]
[]
[]
Weekly timer
Enables you to set operation
schedules up to 4 setting for each
day of the week.
On timer
Starts the operation at your desired
time.
O󰀨 timer
Stops the operation at your desired
time.
Program timer
Operates as the combination of the
On timer and O󰀨 timer.
Sleep timer
Supports your comfortable sleep
by moderating the air conditioner
operation gradually.
6. Press
.
7. Set each timer operation.
For details, refer to the following instructions of each timer setting.
8. Press
to complete the timer setting.
Be close to the indoor unit.
To cancel the timer setting during the procedure, press
again.
6.1. Weekly timer
Setting details
1. Select Weekly timer in step 2 of "Timer setting procedure".
2. Press
()
to select the program number and the
day of the week.
Selected program number (1~4) and the day of the week will blink.
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
3. Press
.
4. Press
to choose the timer operation.
5. Press
.
* When you chose "Without a timer" in step 4, the setting display will
return to step 1.
6. Press
()
to set on time or o󰀨 time.
7. Press
.
* When you chose "O󰀨 timer" in step 4, the setting display will return
to step 1.
8. Press
()
to set the temperature.
Temperature setting range
Auto, Cooling,
or Dry mode:
18.0-30.0°C
*Even if you set to 10.0, 16.0-17.5°C, the air
conditioner will run at 18.0°C.
Heating mode: 10.0 or 16.0-30.0°C
9. Press
.
The setting display will return to step 1.
10. Press
to complete the setting.
Be close to the indoor unit.
NOTE: [
] indicator on the indoor unit will not turn on even if the
setting is complete.
If you want to return the previous step, press
.
To check the schedule, use
()
to browse the Weekly
timer settings in step 1.
To nish checking, press
.
To deactivate the Weekly timer, press
while is
shown on the remote controller display.
The indicator will disappear.
NOTES:
The operation modes will be the same as the mode at the last time
operation was stopped, so Cooling → Heating → Cooling → Heating
type of operations cannot be set automatically.
If you set the On timer and O󰀨 timer on the same time, the On timer
will work.
If two On timers are set on the same time, the air conditioner will run
in the order of the program number.
You cannot the Weekly timer and the other timers simultaneously.
If you use the On/O󰀨 timer, the Program timer, or the Sleep timer
while the Weekly timer is activated, the Weekly timer will be
deactivated.
In such a case, activate the Weekly timer after the other timer
nishes.
If the wired remote controller (optional) is connected, this function is
restricted.
Day of the week
Program number
(Without a timer)
(On timer) (O󰀨 timer)
(Refer to "3.3. Inserting batteries")
