Fujitsu Airstage Series User Manual

En-5

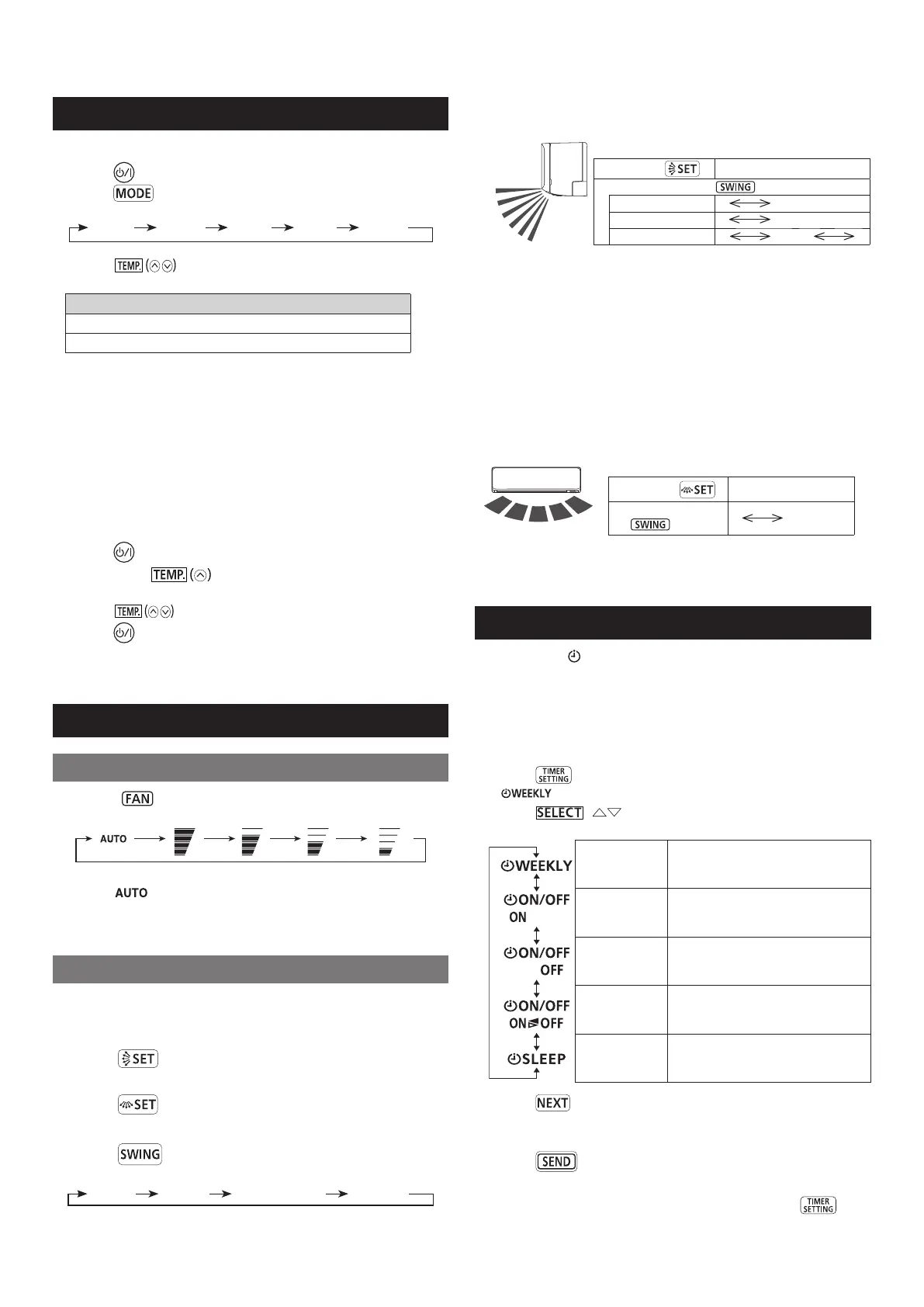

5. AIRFLOW SETTINGS
5.1. Fan speed setting

Press to control the fan speed.
The fan speed changes as follows.
(Auto) (High) (Med) (Low) (Quiet)
When
is selected, the fan speed depends on the operating
condition.
To increase the air cleaning eff ect, set the fan speed to High.
5.2. Airfl ow direction setting
For details of the airfl ow ranges, refer to "Airfl ow direction
range".
■
Vertical airfl ow direction setting

Press to adjust the vertical airfl ow direction.
■
Horizontal airfl ow direction setting

Press to adjust the horizontal airfl ow direction.
■
Swing operation setting

Press to select the Swing operation.
The Swing operation changes as follows.
Up/down Left/right Up/down/left/right Stop swing
NOTES:
The Swing operation may stop temporarily when the indoor
unit fan is rotating at very low speed or is stopped.
6. TIMER OPERATIONS
NOTES:
When [
] indicator on the indoor unit blinks, set the clock
and timer again. This blinking shows that the internal clock go
wrong due to an interruption of the power supply. (Refer to
page 13.)
■
Timer setting procedure
Before setting the timer, please adjust the clock. (Refer to "remote
controller preparation").
1.
Press
.
on the remote controller display will blink.
2.
Press
()
to choose timer operation.
The timer operation will change as follows:
[]
[]
[]
Weekly timer
Enables you to set operation
schedules up to 4 setting for each
day of the week.
On timer
Starts the operation at your desired
time.
Off timer
Stops the operation at your desired
time.
Program timer
Operates as the combination of the
On timer and Off timer.
Sleep timer
Supports your comfortable sleep
by moderating the air conditioner
operation gradually.
3.
Press
.
4.
Set each timer operation.
For details, refer to the following instructions of each timer setting.
5.
Press
to complete the timer setting.
Be close to the indoor unit.
• To cancel the timer setting during the procedure, press
again.
4. BASIC OPERATIONS
■
3 steps to start operation
1.
Press
to start or stop the operation.
2.
Press
to select the operation mode.
The operation mode changes as follows.
AUTO COOL DRY FAN HEAT
3.
Press
to set the desired temperature.
The temperature changes by 1 °F (0.5 °C) increments.
Temperature setting range
Auto/Cooling/Dry 64-88 °F (18.0-30.0 °C)
Heating 60-88 °F (16.0-30.0 °C)
NOTES:
• In the Cooling or Dry mode, set the temperature lower than the
current room temperature.
• In the Heating mode,
- set the temperature higher than the current room temperature.
- at the beginning of the operation, the indoor unit fan rotates at very
low speed for 3-5 minutes.
- the Automatic defrosting operation overrides the Heating operation
when necessary.
• In the Fan mode, temperature control is not available.
■
Temperature unit switching
1.
Press
until only the clock is displayed.
2.
Press down
for more than 5 seconds.
The current temperature unit will be displayed. (Factory setting: °F)
3.
Press
to switch the temperature unit. (°F
⇔
°C)
4.
Press
to fi nish the setting.
If you do not press the button for 30 seconds, the displayed
temperature unit will be set.
■
Airfl ow direction range
Vertical airfl ow direction
1
2
3
4
5
6
Change by
1
⇄
2
⇄
3
⇄
4
⇄
5
⇄
6
Swing operation by
Cooling, Dry 1 4
Heating 3 6
Fan * 1 4 or 3 6
* the Swing operation range depends on the airfl ow direction set before
the Swing operation.
NOTES:
• Do not adjust the airfl ow direction louvers by hand.
• In the Auto or Heating mode, the airfl ow direction stay position 1 for
a while from the start of the operation.
• In the Cooling or Dry mode, position 1-3 is recommended to prevent
condensation drips damaging your property. If position 4-6 keeps for
30 minutes or more in these modes, the airfl ow direction changes to
position 3 automatically.
• When using the mobile app, the vertical airfl ow can be selected from
4 positions.
Horizontal airfl ow direction
3
4
5
2
1
Change by
1
⇄
2
⇄
3
⇄
4
⇄
5
Swing operation
by
15
NOTES:
In the Auto mode operation, you cannot change the airfl ow
direction for a while from the start of the operation.
9387602098OM.indb59387602098OM.indb5 2022/09/2619:41:392022/09/2619:41:39

Fujitsu Airstage Series Specifications

General

Type	Split System
Energy Efficiency	High Efficiency
Refrigerant	R32 or R410A (varies by model)
Control	Remote control, Wi-Fi (optional)
Zones	Multi-Zone (varies by model)
Installation	Wall-mounted, Ceiling-mounted, or Cassette (varies by model)
Operating Modes	Cooling, Heating, Fan, Dehumidification, Auto
Indoor Unit Options	Wall-mounted, Ceiling Cassette
Features	Inverter Technology, Quiet Operation
Noise Level	Indoor: 19 - 45 dB
HSPF	Varies by model (typically 8 - 12)
