Fujitsu AMUG24LMAS Design & Technical Manual

¢

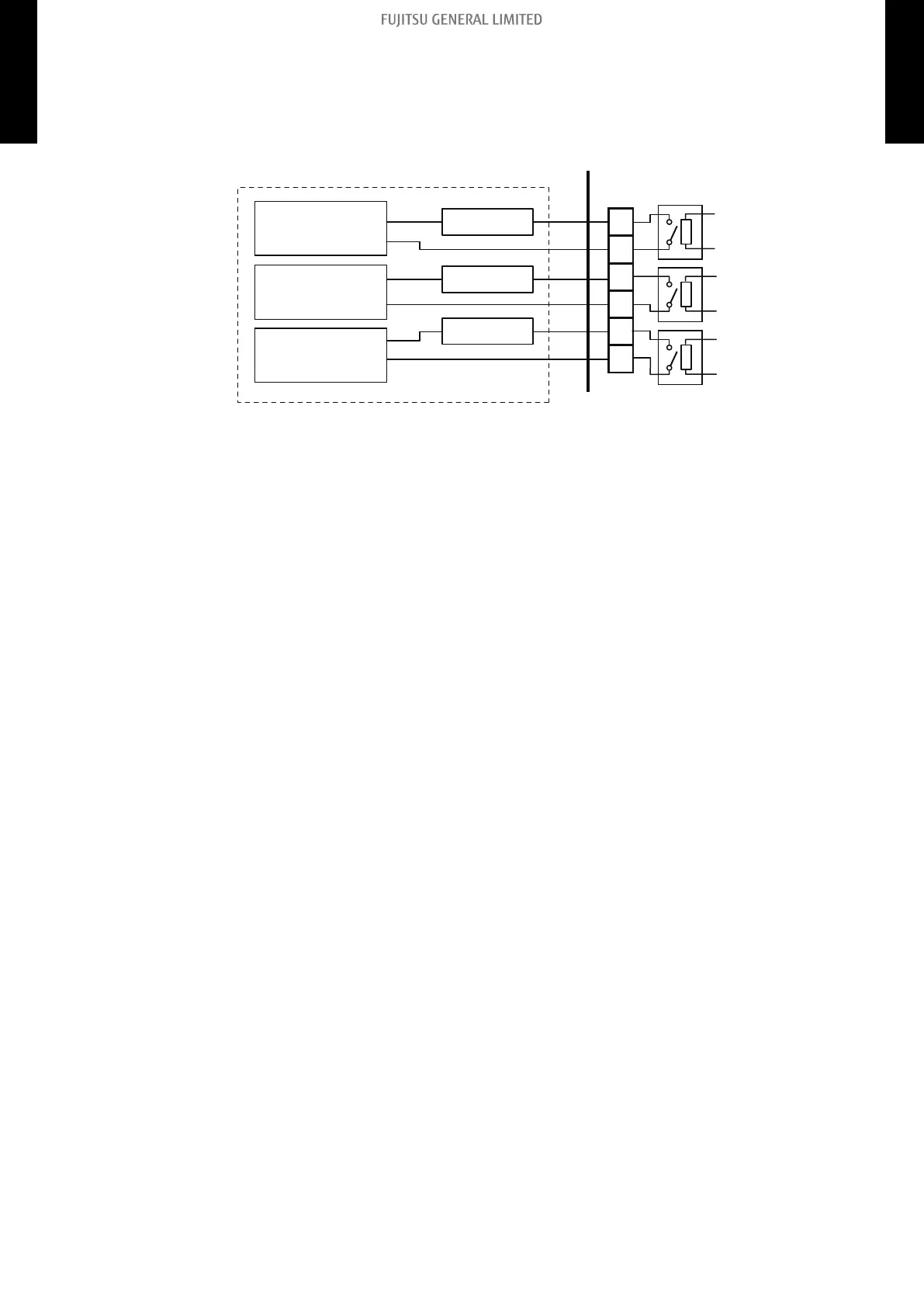

External input and output PCB
• A twisted pair cable (22AWG) should be used.
• Permissible voltage and current: DC 5 V to 30 V / 3 A, AC 30 V to 250 V / 3 A
• For details, refer to Chapter 6-3. "Combination of external input and output" on page 24.
1
2
3
4
5
6
Power supply
Power supply
Power supply
PCB
Connected device 1
(Operation status)
Connected device 2
(Error status)
(Indoor unit fan
operation status)
Connected device 3
Example
- 23 -
6-2. External output 6. External input and output
DUCT TYPE AMUG24-48LMAS DUCT TYPE AMUG24-48LMAS

Fujitsu AMUG24LMAS Specifications

General

Brand	Fujitsu
Model	AMUG24LMAS
Category	Air Conditioner
Language	English
