7. Function settings
To adjust the functions of this product according to the installation environment, various types of
function settings are available.
NOTE:
Incorrect settings can cause a product malfunction.
7-1. Function settings on indoor unit
¢
Models: AMUG24LMAS, AMUG30LMAS, AMUG36LMAS, and
AMUG48LMAS
By using some components on the PCB, you can change the function settings.
Related components on the PCB and the applicable settings
Component Setting content
DIP switch101
1 Setting change prohibited
2 Setting change prohibited
3 Fan delay setting

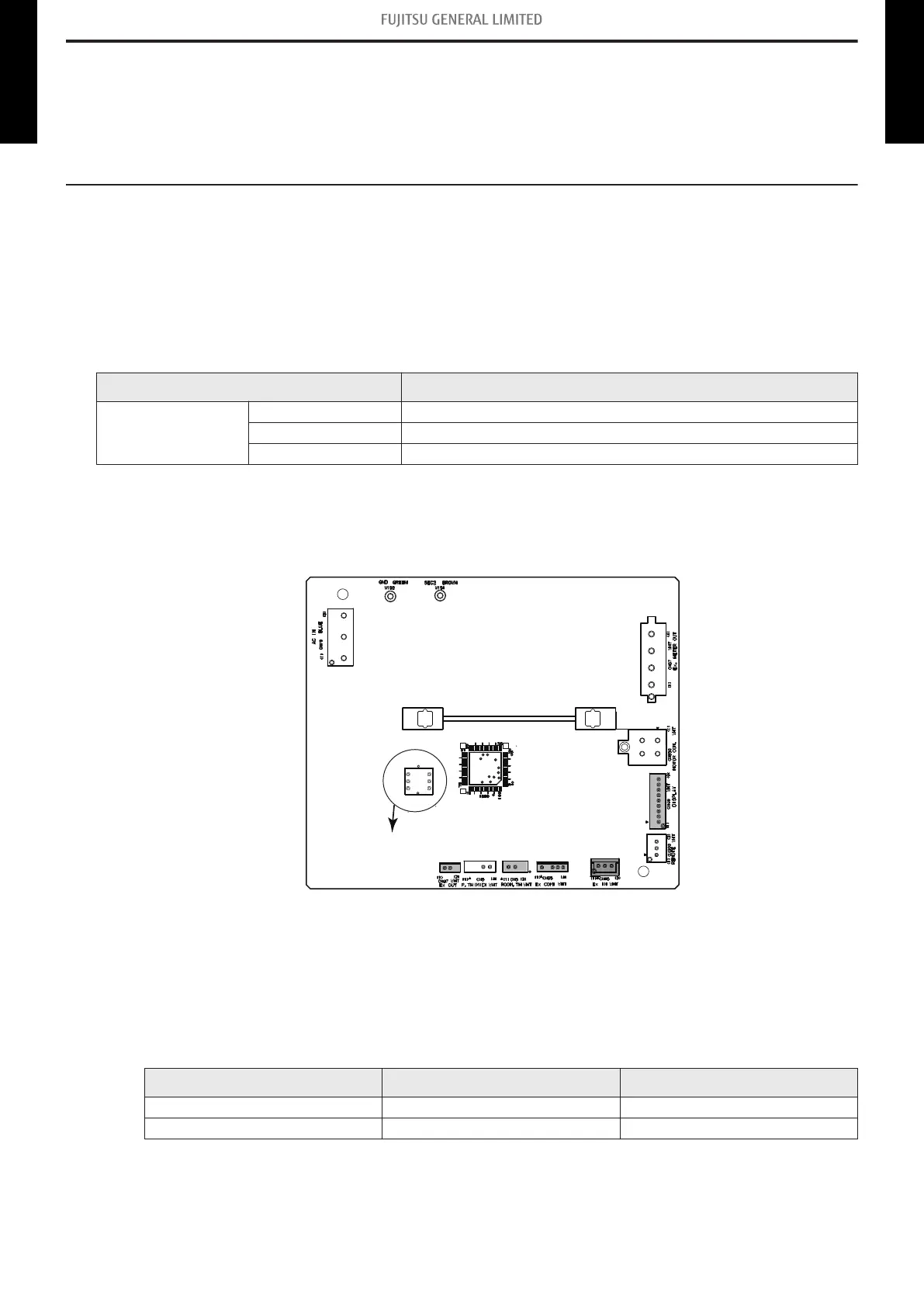

Component location
Components on the indoor unit main PCB used for the function settings are located as shown in
the following figure.
DIP switch setting
• Switch 1: Setting change prohibited (SW101)
• Switch 2: Setting change prohibited (SW101)
• Switch 3: Fan delay setting (SW101)
When the indoor unit is stopped while operating in conjunction with auxiliary heater, the indoor
unit fan operation will continue for 1 minute.
Switch 3 Fan delay Factory setting
ON Enabled
OFF Disabled ♦
- 52 -
7-1. Function settings on indoor unit 7. Function settings
DUCT TYPE
AMUG24-48LMAS
DUCT TYPE
AMUG24-48LMAS
