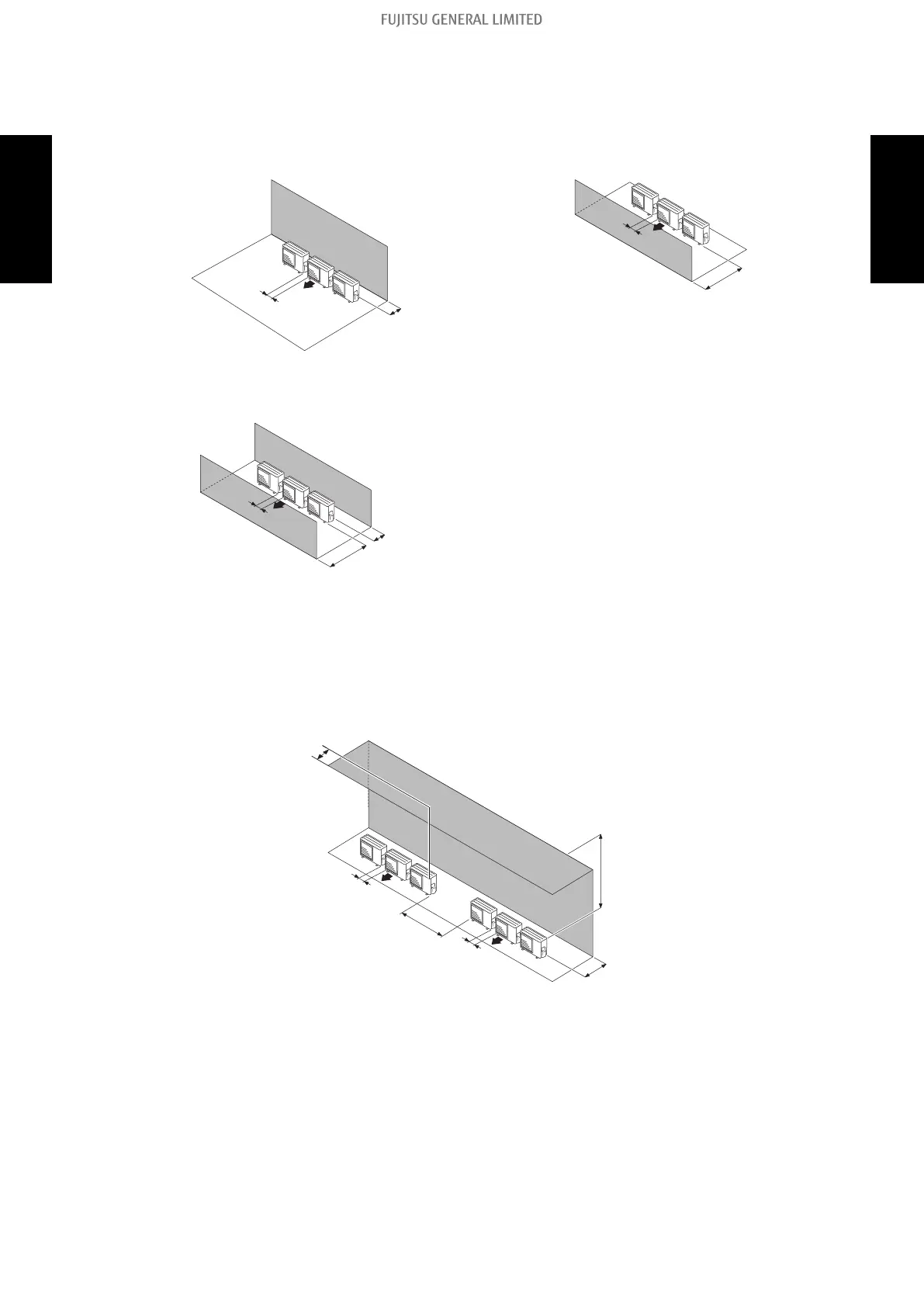

 Multiple outdoor unit installation
• When the upper space is open:
Unit: in (mm)
When there are obstacles at the rear only. When there are obstacles at the front only.
12 (300)
or more
10 (250)
or more
60 (1,500)
or more
10 (250) or more
When there are obstacles at the front and
rear.
20 (500)
or more
60 (1,500)
or more
10 (250)
or mor
e
• When there is an obstruction in the upper space:
Unit: in (mm)
When there are obstacles at the rear and above.
60 (1,500) or more
20 (500) or more
10 (250)
or more
10 (250)
or more
Max. 11
(300)
60 (1,500)
or more
- 71 -
3-1. Models: AOU24RGLX and AOU30RGLX 3. Installation space
OUTDOOR UNIT AOU24-30RGLX, AOUG36-48LMAS1 OUTDOOR UNIT AOU24-30RGLX, AOUG36-48LMAS1
