Fujitsu AMUG36LMAS

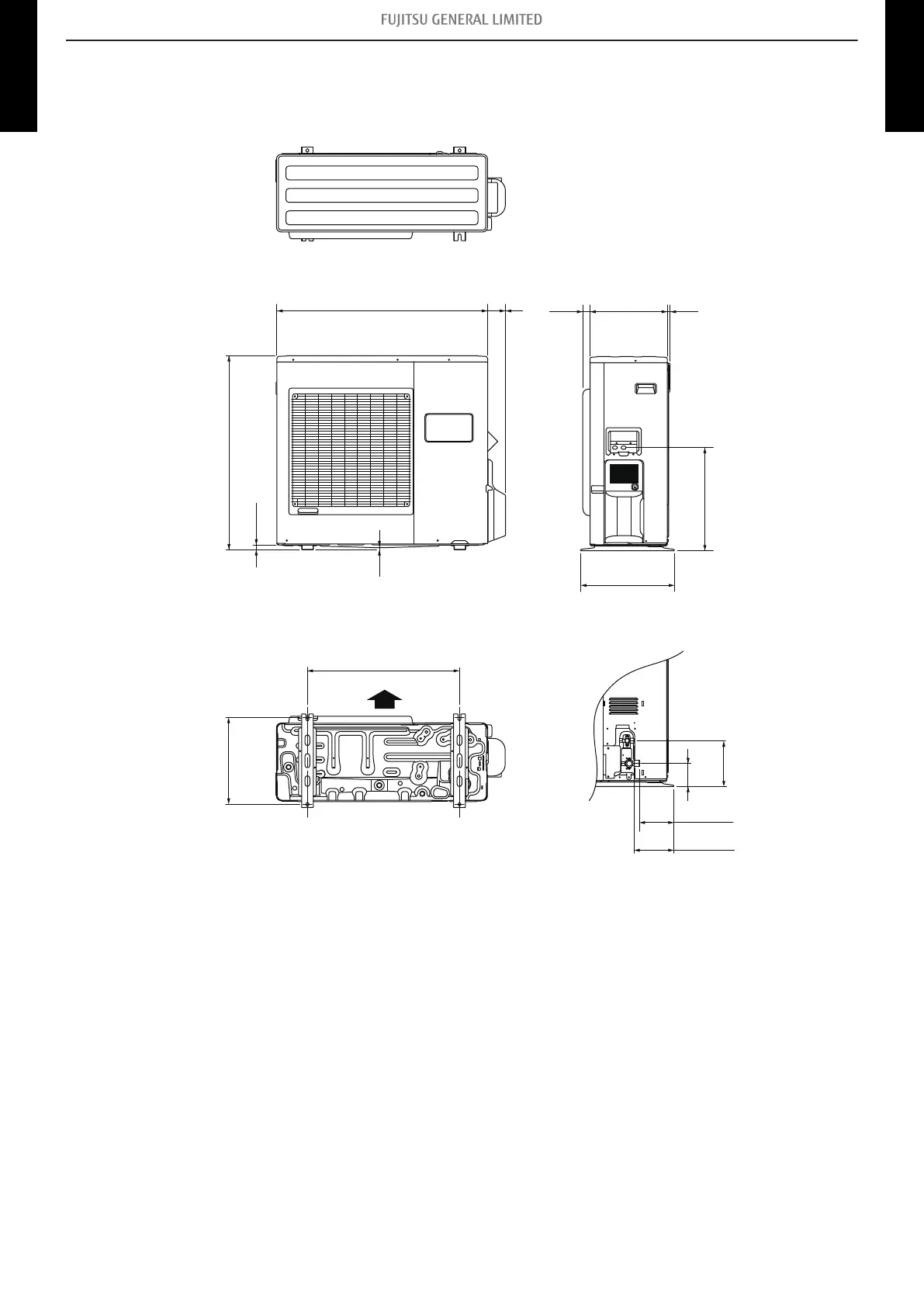

2-2. Outdoor unit
¢
Models: AOU24RGLX and AOU30RGLX
Unit: in (mm)
Top view
Front view
Side view
Bottom view
3(77)
35-7/16 (900)
32-11/16 (830)
17-3/8 (440)
7/8 (21)
15-3/4 (400)
13 (330)
7-3/4 (196)
5-3/4 (147)
6-3/4 (170)
14-5/8 (370)
25-5/8 (650)
Airflow
1-1/4
(31)
1/2
(12)
3-7/8
(99)
3/8
(9)
2-2. Outdoor unit - (01-8) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION
