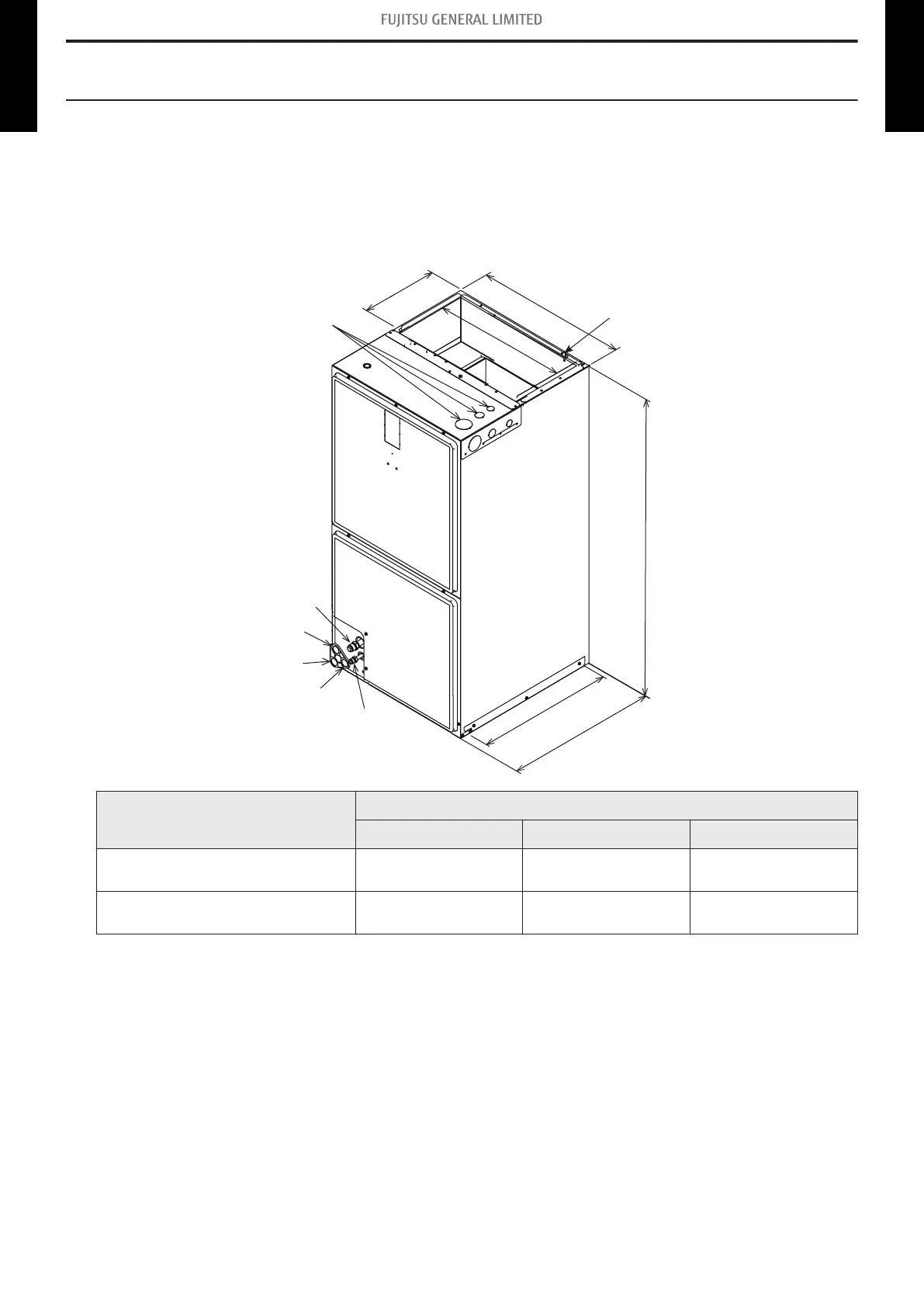

2. Dimensions
2-1. Indoor unit
¢
Models: AMUG24LMAS, AMUG30LMAS, AMUG36LMAS, and
AMUG48LMAS
Unit: in (mm)
Flanges are provided
H
W
A
10-5/16
(262)
2
1
-
1
1
/1
6
(
5
5
1)
1
9
-
1
/2
(
4
95)
for field installation Dia. knockouts.
7/8 (22),
1-1/16 (27),
1-15/16 (50)
Gas pipe
Auxiliary drain
connection
Primary drain
connection
Auxiliary drain
connection
Liquid pipe
Model
Dimension (Unit: in (mm))
A (Supply duct) W (Unit width) H (Unit height)
AMUG24LMAS
AMUG30LMAS
19-1/2 (495) 21 (533) 42-1/2 (1,080)
AMUG36LMAS
AMUG48LMAS
19-1/2 (495) 21 (533) 57 (1,448)
