1-2 OUTDOOR UNIT DISPLAY (AOUG36,48LMAS1)
03-03
F
1
2
3
4
5
6
7
8
9
A
C
F
J
P
U
EDC
For MONITOR
(A and B)
Display mode
LED on:
LED off:
Blink:
(0.5s Light on
/ 0.5s Light off)
Number
of blinking: ( )
A: 10 times
C: 11 times
F: 12 times
J: 13 times
P: 14 times
U: 15 times

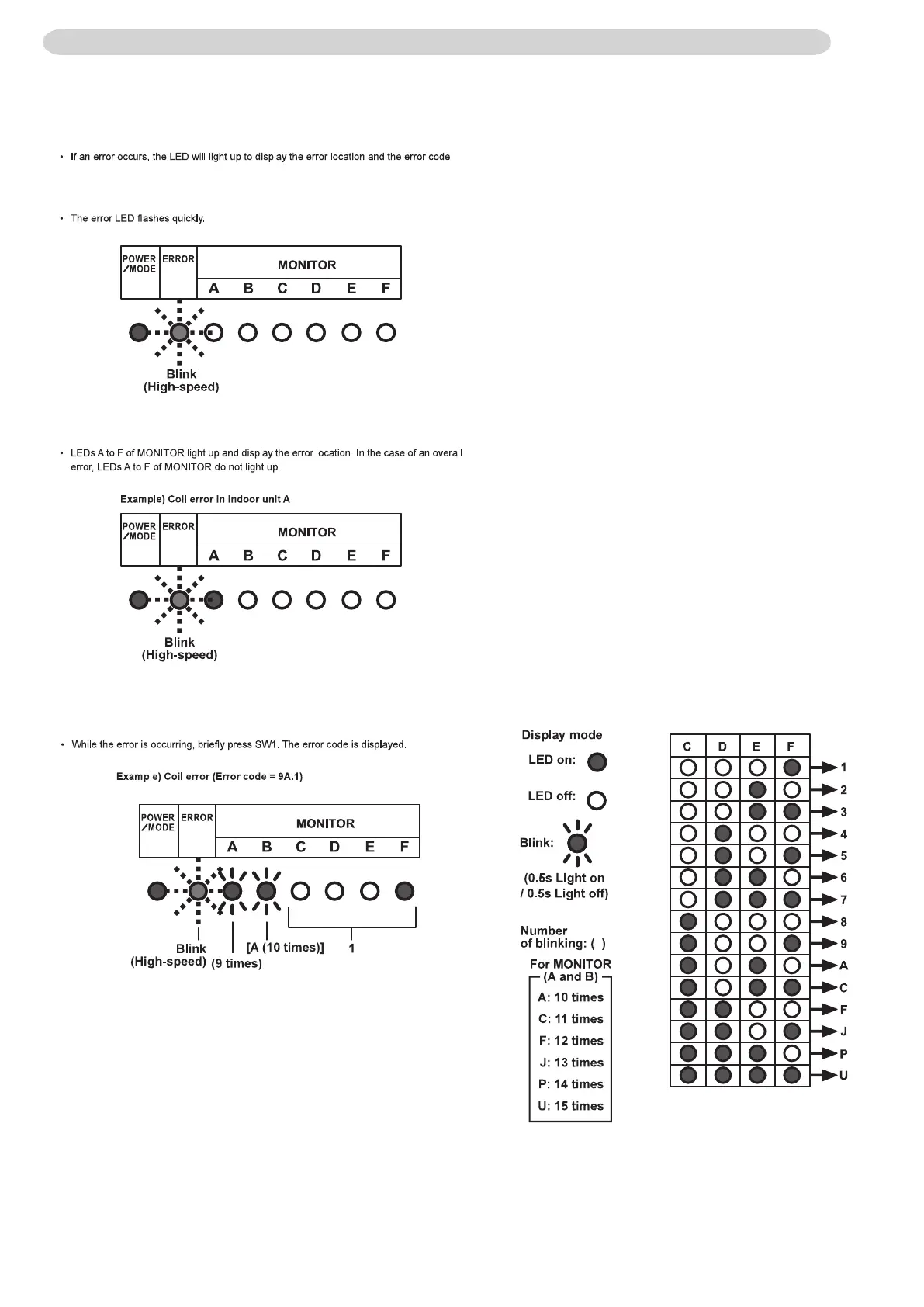

If an error occurs, the LED will light up to display the error location and the error code.
The error LED ashes quickly.
FEDC
MONITOR
ERROR
BA
POWER
MODE
Blink
(High-speed)
LEDs A to F of MONITOR light up and display the error location. In the case of an overall
error, LEDs A to F of MONITOR do not light up.
Example) Coil error in indoor unit A
FEDC
MONITOR
ERROR
BA
POWER
MODE
Blink
(High-speed)
Error code
In the event of an error
Error location display
While the error is occurring, brie y press SW1. The error code is displayed.
FEDC
MONITOR
ERROR
BA
POWER
MODE
[A(10)] 1
Blink
(High-speed)
[A (10 times)]
Example) Coil error (Error code = 9A.1)
(9 times)
Error code display
