Adjustment Super Wave

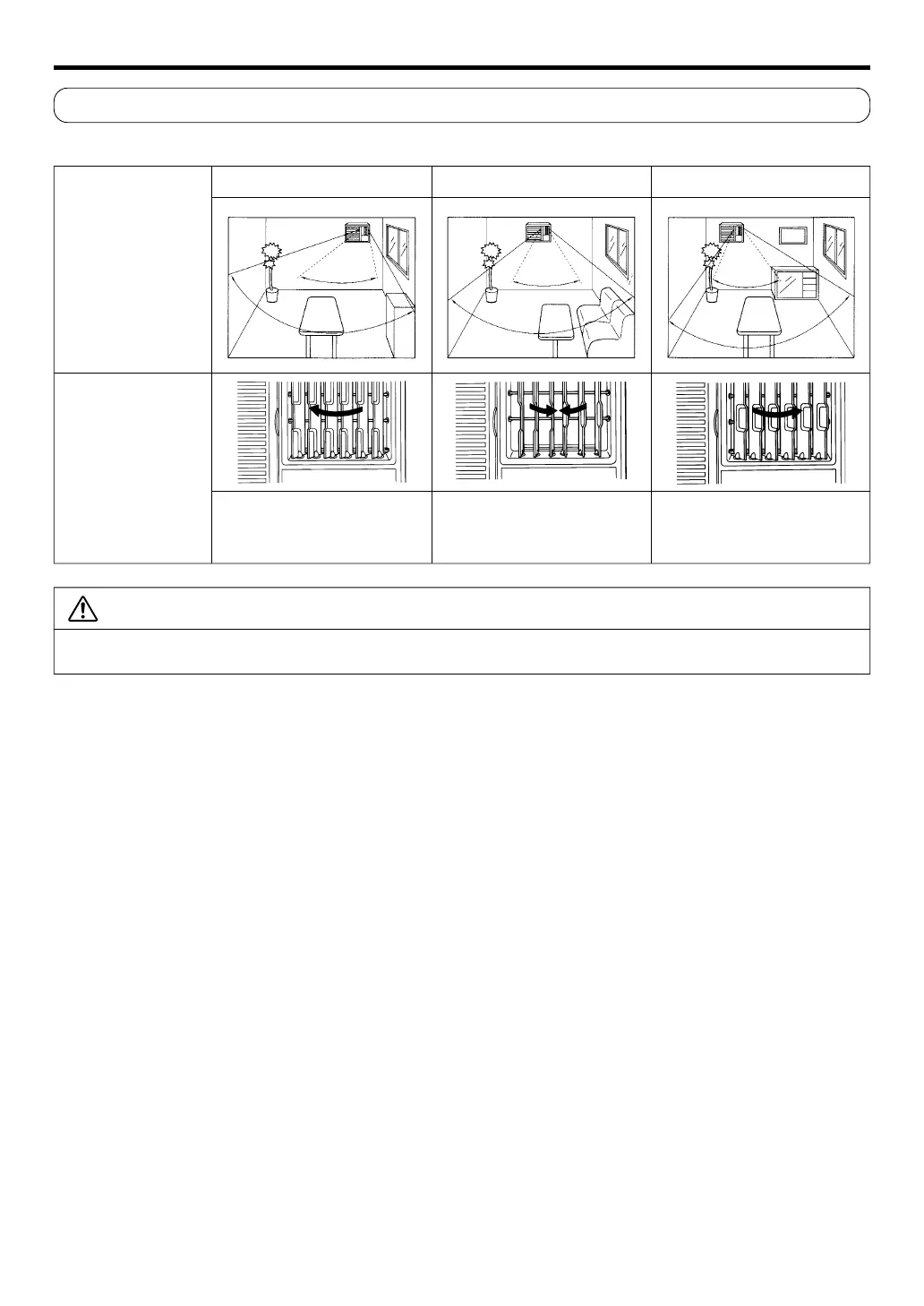

With this air conditioner, 3 Airflow-directions are available and for each direction, the required sweep angle can be set.
Blowing Direction
Adjusting the Right-
Left Airflow-direc-
tion Louvres
Left Side
Centre
Right Side
Lightly move the Right-Left
Airflow-direction Louvres to
the left until they stop.
Position the Right-Left
Airflow-direction Louvres
approx. at the centre.
Lightly move the Right-Left
Airflow-direction Louvres to
the right until they stop.
CAUTION!
Adjust the Right-Left Airflow-direction Louvres after SELECT LEVER is set to the “NEUTRAL” position.
AIR DIRECTION ADJUSTMENT
Minimum
Maximum
Minimum
Maximum
Minimum
Maximum
