Details of function


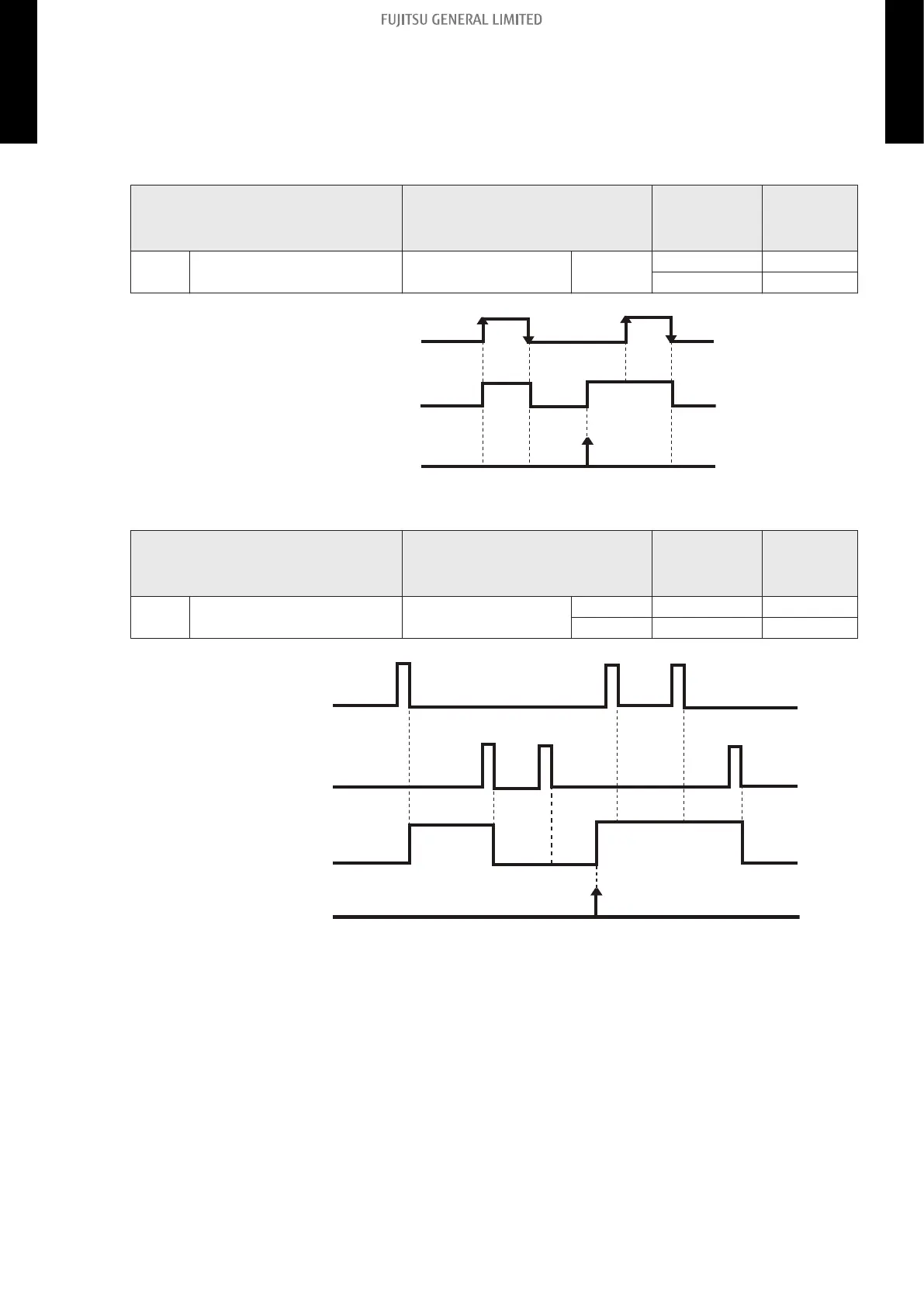

Control input function
• When function setting is "Operation/Stop" mode 1
– In the case of "Edge" input:
Function
setting /
Rotary SW on
External Input and
Output PCB
External input Input signal Command
46-00 60-00 / 1
External Input and
Output PCB
CN313
Off → On Operation
On → Off Stop
Operation
Stop
Remote controller
On
Off
Indoor unit
On
CN313
– In the case of "Pulse" input:
Function
setting /
Rotary SW on
External Input and
Output PCB
External input Input signal Command
46-00 60-00 / 1
External Input and
Output PCB
CN313 Pulse Operation
CN314 Pulse Stop
On
On
Off
Operation
Stop
Remote controller
On
Off
Indoor unit
CN313
CN314
NOTES:
• The last command has priority.
• The indoor units within the same remote controller group operates in the same mode.
- 209 -
12-3. Wall mounted type (KGTB, 18-24KMTB, KETA, and KETA-B)
12. External input and output
