1-1. COOLING OPERATION
1-1-1 COOLING CAPACITY CONTROL
A sensor (room temperature thermistor) built in the indoor unit will usually perceive
difference or variation between a set temperature and present room temperature, and
controls the operation frequency of the compressor.
The maximum frequency is limited in the range shown in Figure 1 based on the fan speed mode
and the outdoor temperature.
* If the room temperature is 2 degC higher than a set temperature,
the compressor operation frequency will attain to maximum frequen
cy.
* If the room temperature is 2.5 degC lower than a set temperature, the compressor will be stopped.
* When the room temperature is between +2 degC to -2.5 degC of the setting temperature,
the compressor frequency is controlled within the range shown in Table1.
minimum
frequency
maximum
frequency
20rps 100rps
Outdoor air
temperature
A zone
B zone
C zone
D zone
E zone
F zone
Hi Me Lo Quiet
A zone 111rps
60rps
74rps
45rps
60rps
34rps
29rps
20rps
B zone
C zone
D-F zone

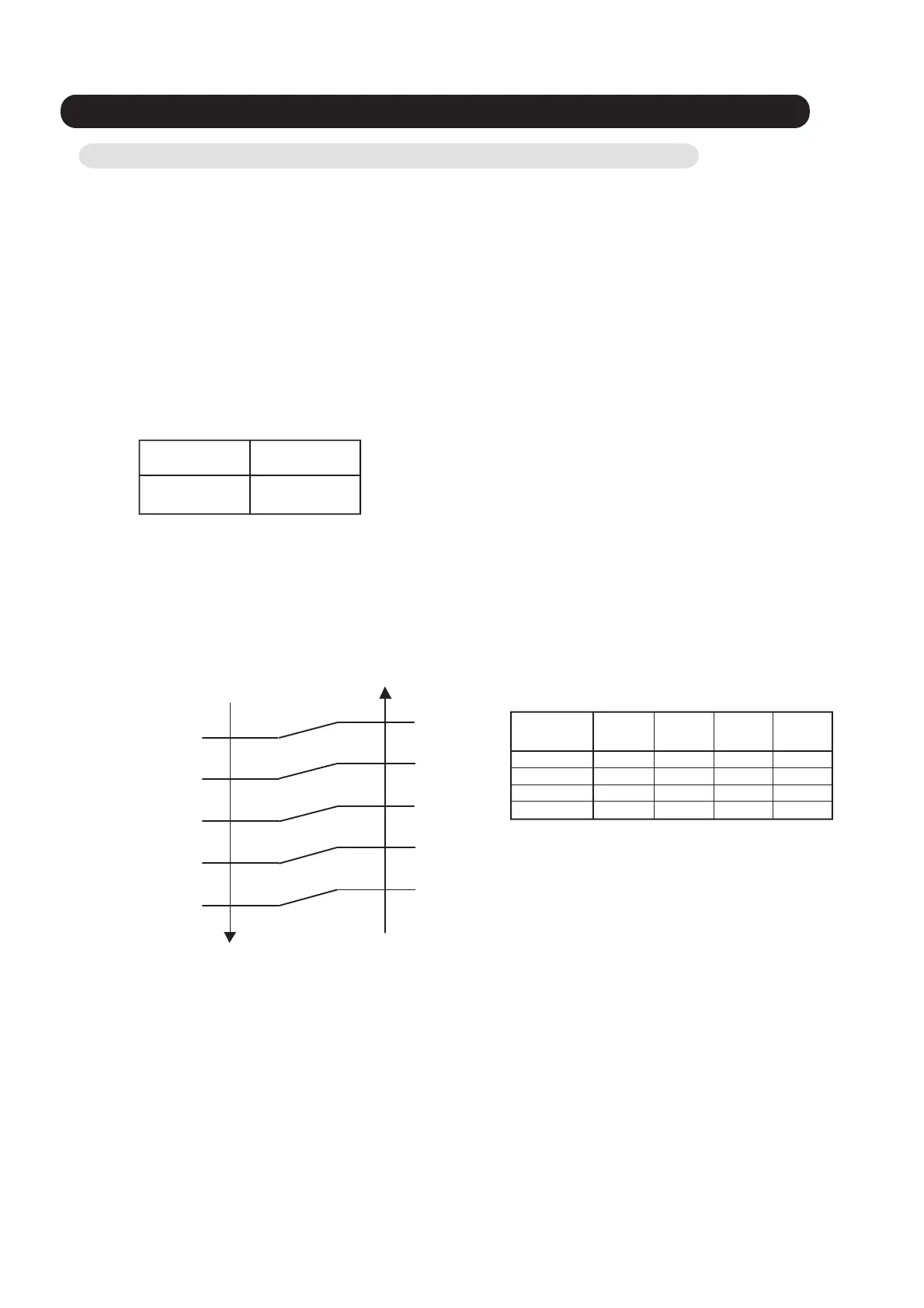

( Table 1 : Compressor Frequency Range )
( Fig. 1 : Limit of Maximum Frequency based on Outdoor Temperature )
01-01
Fan speed
mode
When the room
temperature rises
When the room
temperature drops
36°C
32°C
21°C
12°C
2°C
34°C
30°C
19°C
10°C
0°C
111rps 74
rps 60rps 29rps
80rps 60rps 45rps 29rps
