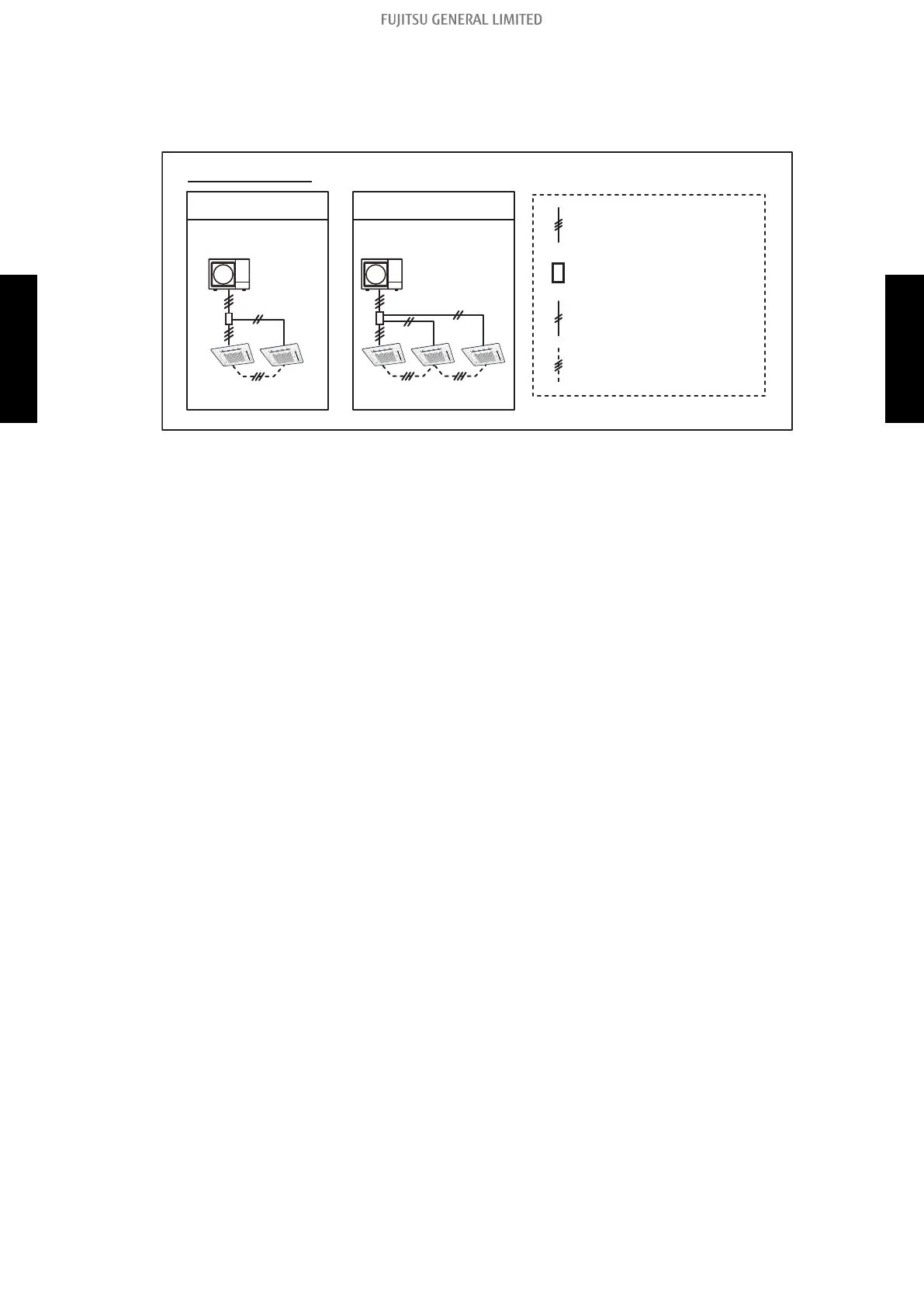

Recommended wiring connection
Up to 3 indoor units can be connected to one outdoor unit.
Operation of all indoor units is same.
The simultaneous multi system is effective for anomalistic floors and wide floors.
Junction box
(Local purchase)
Outdoor unit – indoor unit
connection cable
Twin connection type
Connection example
Triple connection type
Indoor unit – indoor unit
connection cable
Remote controller cable
- 121 -
4-2. Power supply cable wiring 4. Wiring design
SYSTEM DESIGN SYSTEM DESIGN
