Fujitsu AO G36KBTB Series User Manual

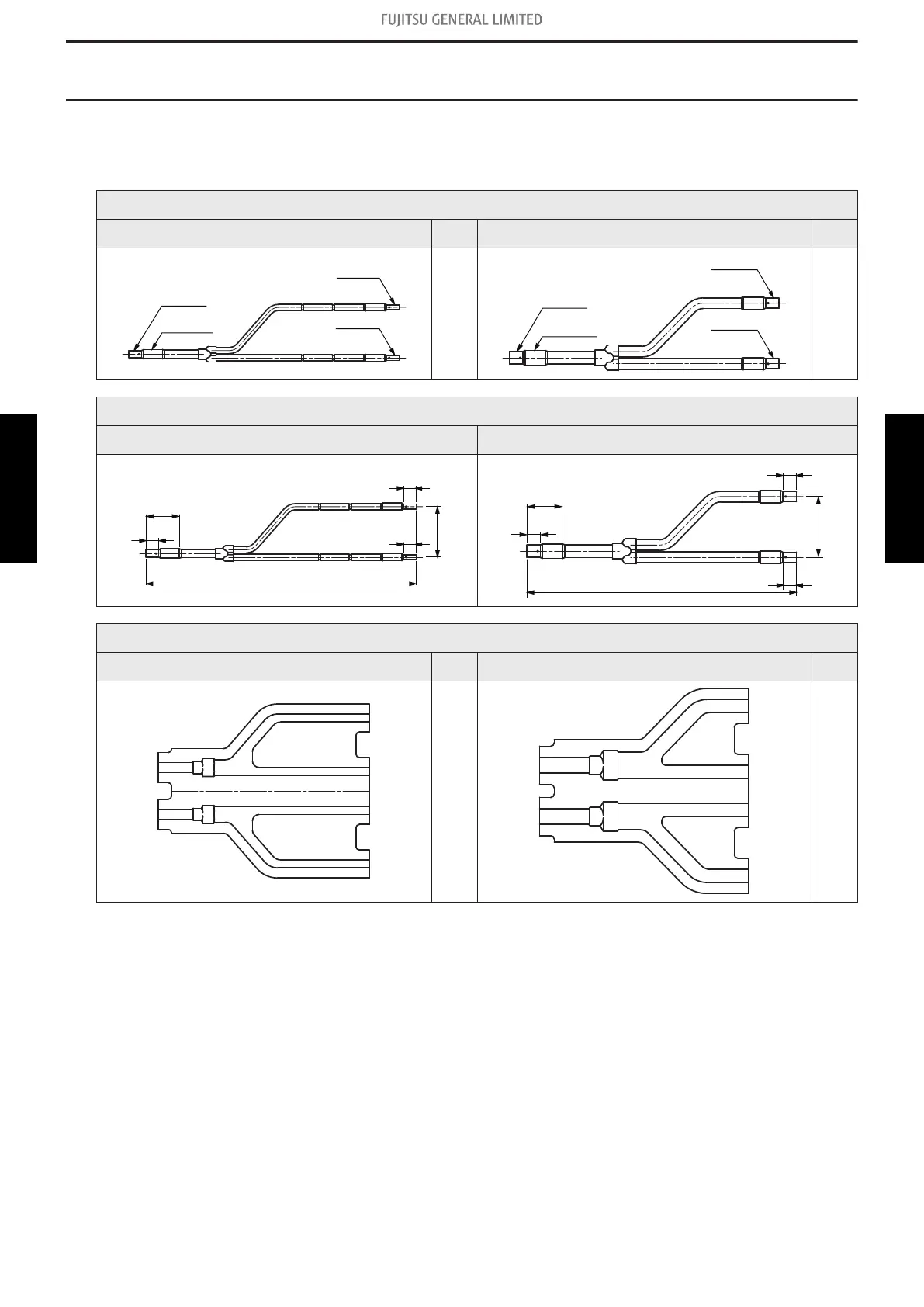

1. Branch pipes
1-1. Model: UTP-SX236A
Unit: mm
Port diameters
Liquid pipe Q’ty Gas pipe Q’ty
Ø9.52
Ø6.35
Ø6.35
Ø12.70
1
Ø12.70
Ø12.70
Ø15.88
Ø19.05
1
Dimensions
Liquid pipe Gas pipe
428
53
15
15
15
80
53
15
15
400
15
90
Heat insulation cover
Liquid pipe Q’ty Gas pipe Q’ty
1 1
- 214 -
1-1. Model: UTP-SX236A 1. Branch pipes
OPTIONAL
PARTS
OPTIONAL PARTS
