- (02 - 04) -
OUTDOOR UNIT
AOTG18-24KMCA
OUTDOOR UNIT
AOTG18-24KMCA

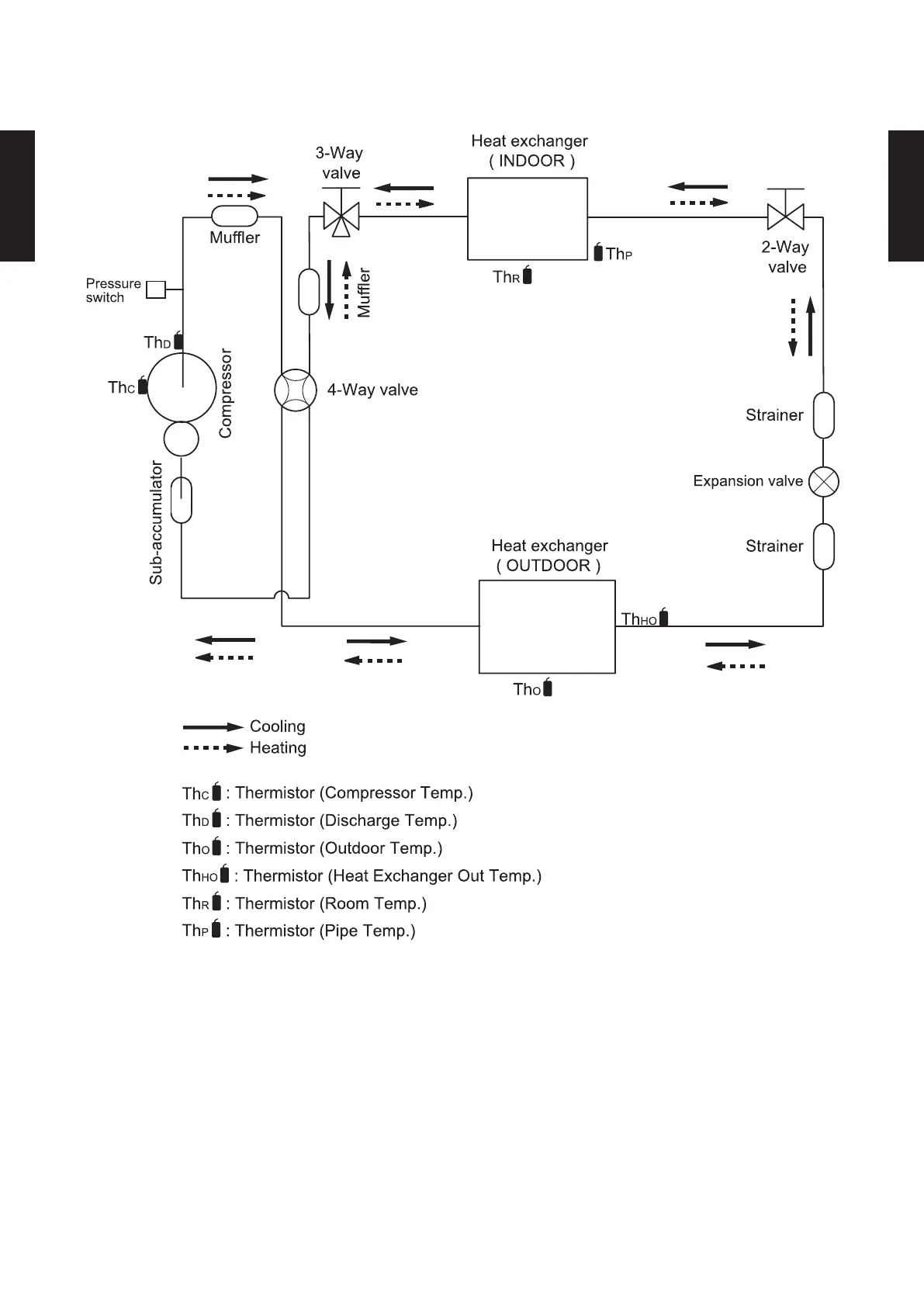

REFRIGERANT CIRCUIT3.
MODEL
: AOTG18KMCA, AOTG22KMCA, AOTG24KMCA
Refrigerant pipe diameter
Liquid: 1/4" (6.35 mm)
Gas: 1/2" (12.70 mm)
