Fujitsu AOTG54LCTL Service Manual

PARTS

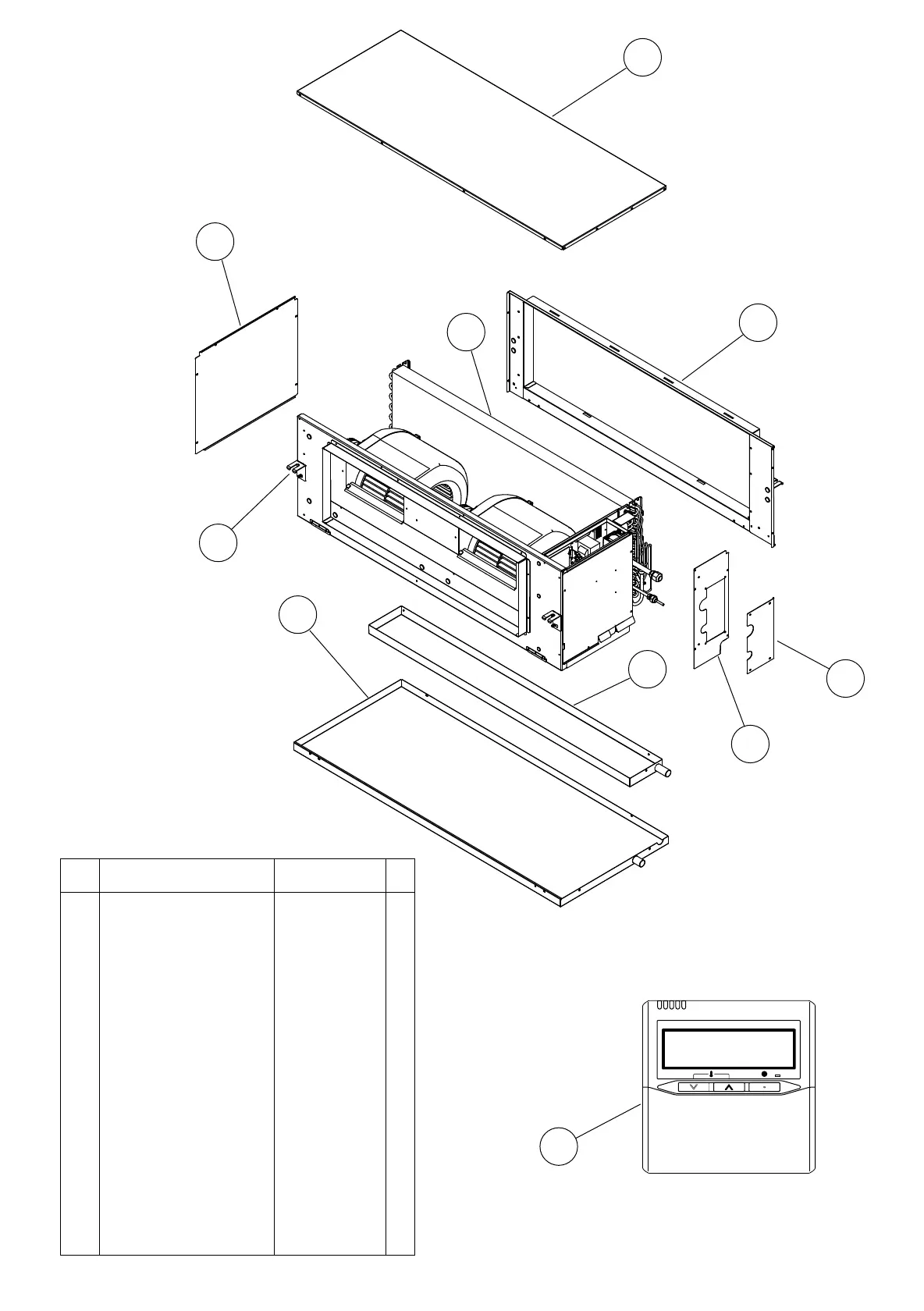

INDOOR UNIT
212012.05.10
8 Hook
7 S Drain Pan Sub Assy
6 Drain Pan Sub Assy 9380193005
9372055007
9 Evaporator Total Assy 9380206002
9380204008
4
Pipe Panel 93802620085
Panel Side L Sub Assy 9380203001
3 Panel Side R Sub Assy
10 Remote Control
2 Panel Rear Sub Assy 9380205005
9318593020
9380194002
1 Panel Top Sub Assy 9380191001
Description Parts numberRef.
1
8
7
6
2
3
5
4
10
9

Fujitsu AOTG54LCTL Specifications

General

Brand	Fujitsu
Model	AOTG54LCTL
Category	Air Conditioner
Language	English
