Fujitsu AOU12RLFW1 - COOLING OPERATION

REFRIGERANT

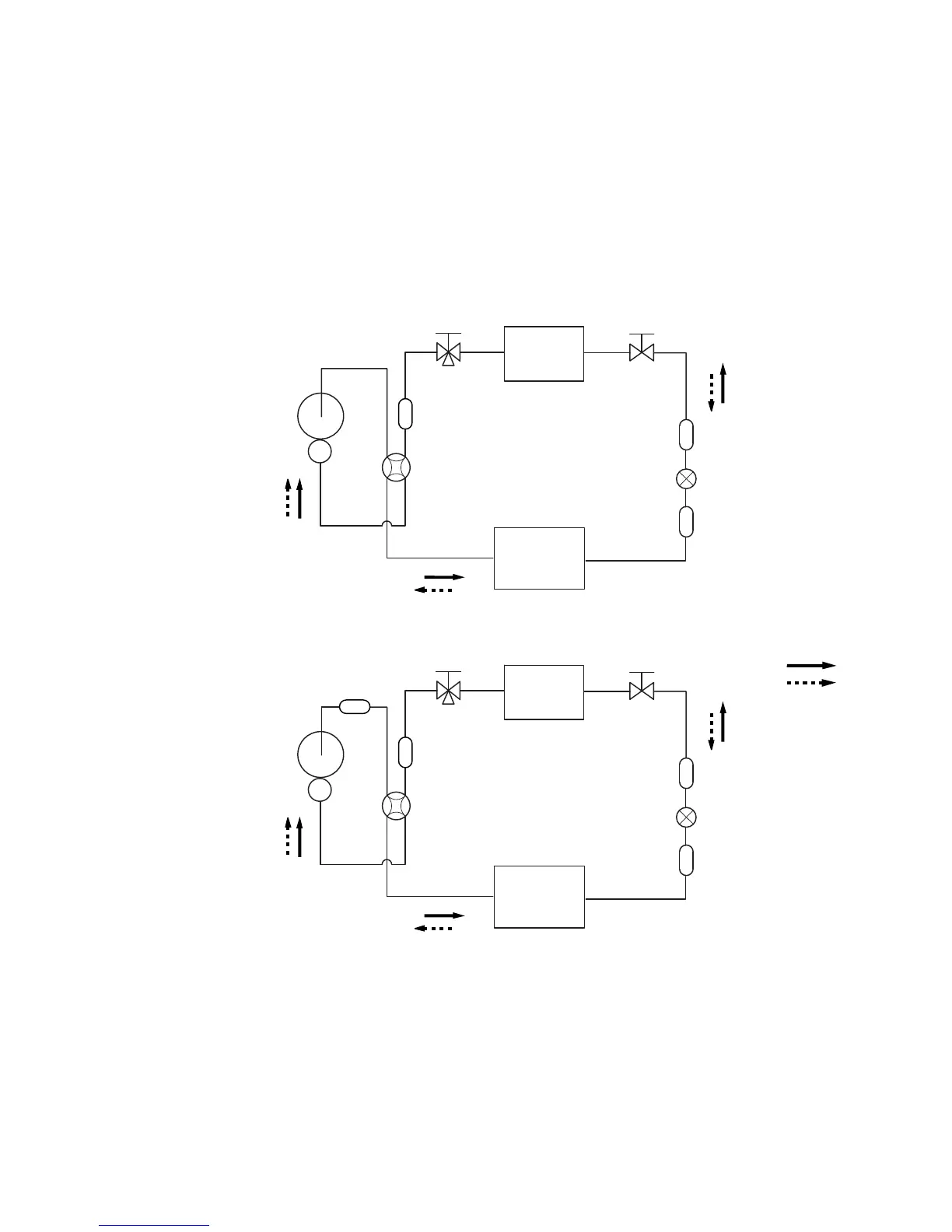

SYSTEM DIAGRAM
2-Way valve
Strainer
Strainer
3-Way valve
Muffler
4-Way valve
Expansion valve
Refrigerant direction
Heat exchanger
(indoor unit)
Heat exchanger
(outdoor unit)
Compressor
ASU9RLF1
AOU9RLFW1
ASU12RLF1
AOU12RLFW1
Cooling
Heating
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 3/8" (9.52 mm)
2-Way valve
Strainer
Strainer
3-Way valve
Muffler
Muffler
4-Way valve
Expansion valve
Heat exchanger
(indoor unit)
Heat exchanger
(outdoor unit)
Compressor
2013.11.04 3
