Fujitsu AOU15RLFFH User Manual

- (01 - 23) -
FLOOR TYPE AGU9-15RLF FLOOR TYPE AGU9-15RLF

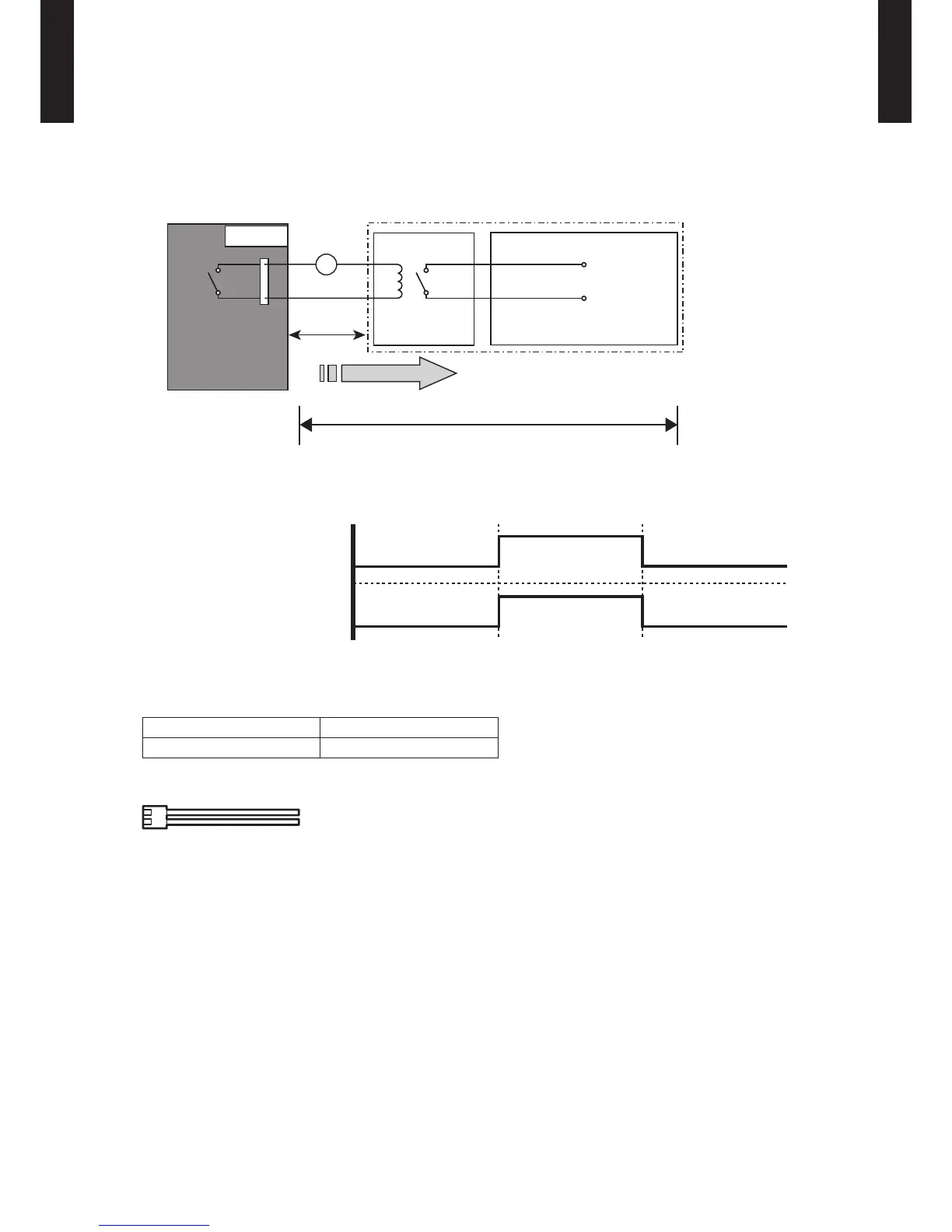

EXTERNAL OUTPUT11-2.
OPERATION STATUS OUTPUT

An air conditioner operation status signal can be output.
Circuit diagram example
z
Field supply
Ex.)Display
Indoor unit
control PC board
Connected unit
Ex.)Relay unit
1
2
Signal
Relay
power
supply
V
Connector
*33 ft.(10 m)
DC 24 V
*: Make the distance from the PC board to the connected unit within 33 ft.(10 m).
Relay spec.: Max. DC 24 V, 10 mA to less than 500 mA.
ON
OFF
Operation
Stop
Indoor unit
Output signal
Parts (Optional)
z
Parts name Model name
External connect kit UTY-XWZXZ5
Wire (External output) : UTY-XWZXZ5
