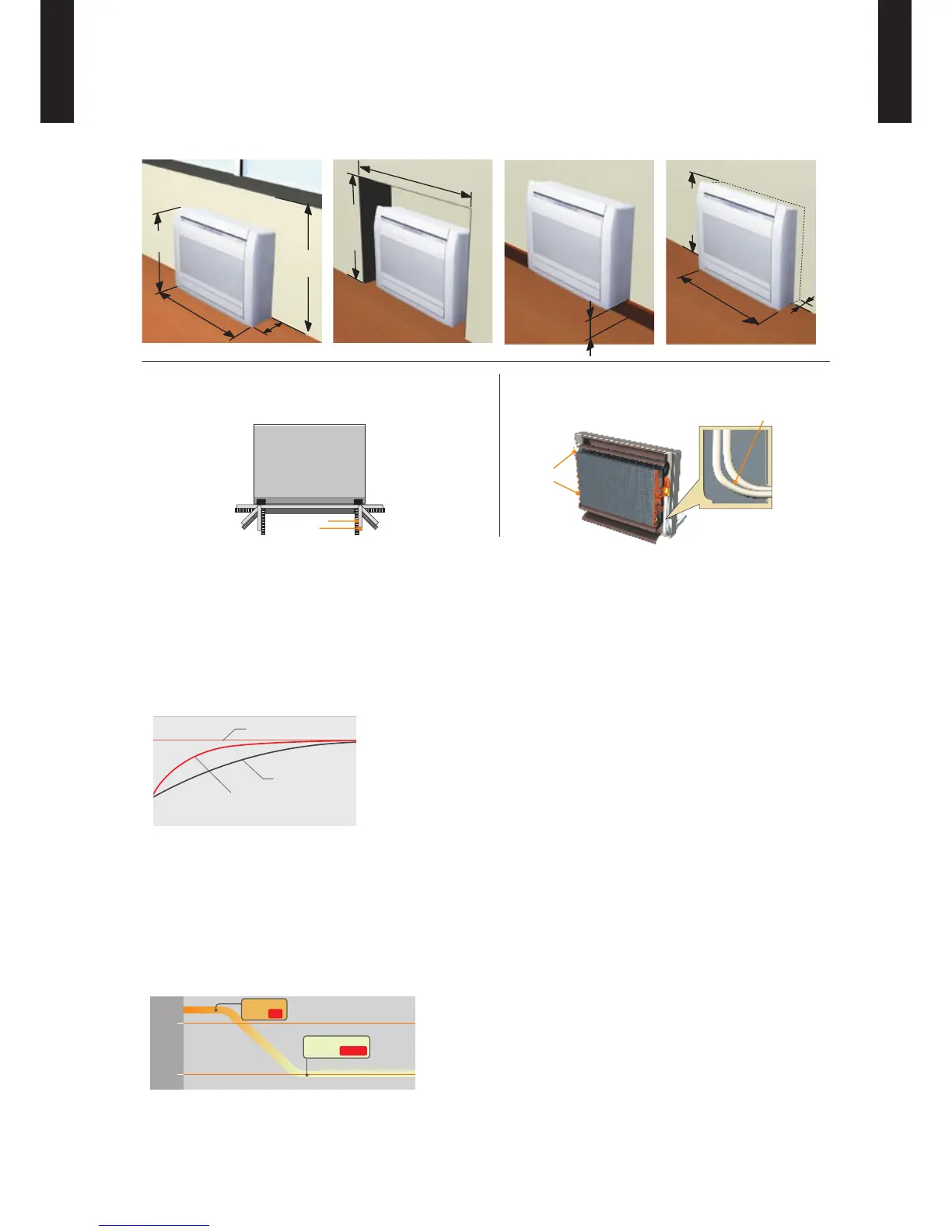

FLOOR TYPE AGU9-15RLF FLOOR TYPE AGU9-15RLF
Flexible & easy installation
z
Piping space is wide and connection work is easy.
Fan motor
Front view
Large piping
bend R
Beneath standard window Standard concave portion
Wall
Half concealed
Unit: mm(in.) Unit: mm(in.) Unit: mm(in.) Unit: mm(in.)
600
(23-5/8)
740
(29-1/8)
200
(7-7/8)
700
(27-9/16)
Min.
700
(27-
9/16)
Min.
590
(23-
1/4)
Min. 940(37)
Max. 150
(5-7/8)
Min. 730
(28-3/4)
Max.
80
(3-1/8)
Space is wide and
piping work is easy
Choice of 6-direction drain &
piping connection
Back view
Drain hose
Piping
1
6
52
3
4
Super quiet operation
z
Air ow mode can be set in 4 steps and more detailed air ow setting is possible.
Powerful operation
z
Continuous operation by maximum air ow and maximum compressor speed after a certain
period of time allows the temperature to reach the setting temp. quickly.
MIN. HEAT Operation
z
*Only available with Wireless RC.
The room temperature can be set to go no lower than 50°F (10°C),
thus ensuring that the room does not get too cold when not occupied
Caution)
When the room temperature is higher than 50°F (10°C), “ • MIN. HEAT” operation does not start. Operation starts and maintains the room
temperature at 50°F (10°C) when the temperature drops below 50°F (10°C).
When “
• MIN. HEAT” operation stops, the room set temperature quickly returns to the preset temperature.
Setting temp.
Normal mode
Time
Temperature
Powerful operation mode
“MIN. HEAT”
Button ON
Indoor unit
operation START
68
°F
(20
°C
)
50
°F
(10
°C
)
