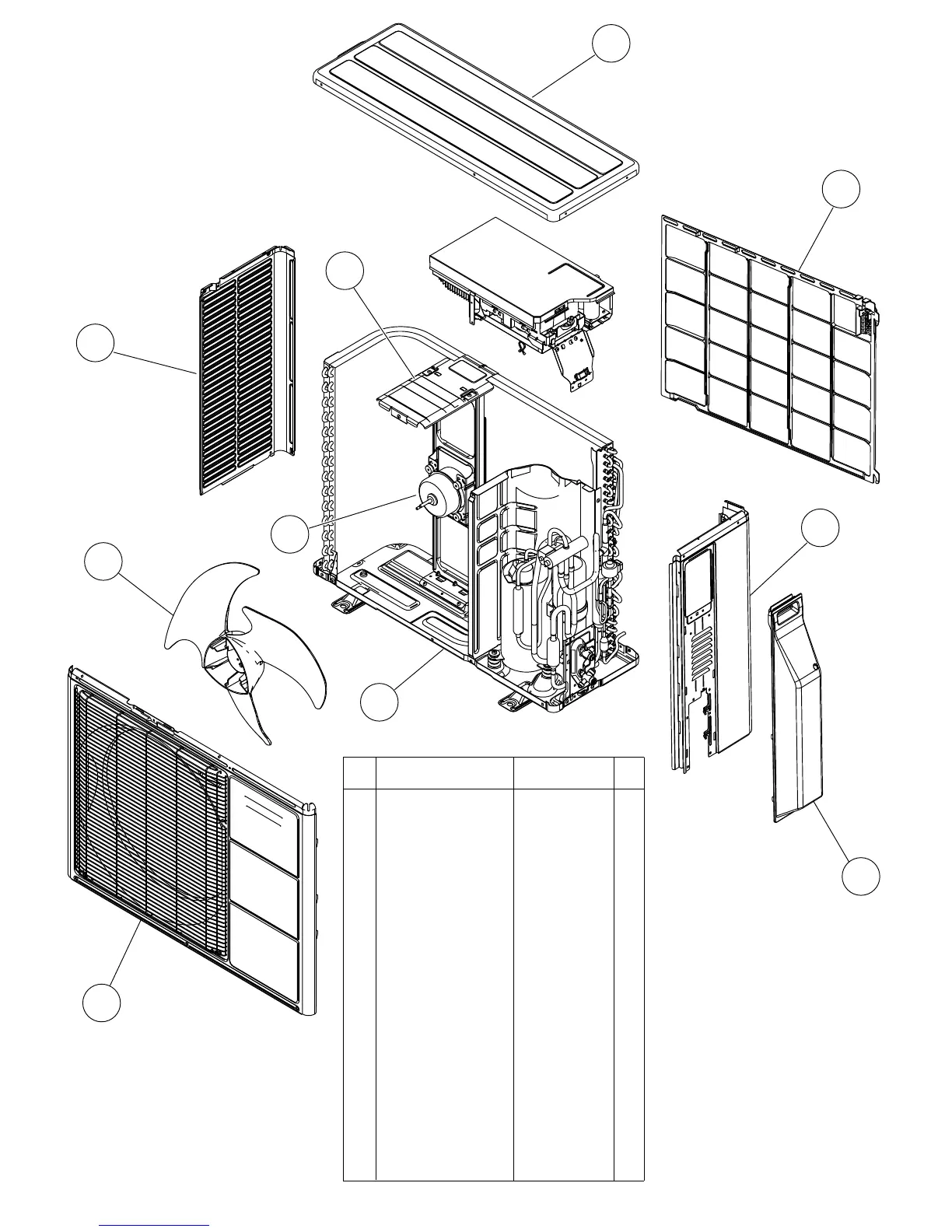

OUTDOOR UNIT
PARTS
2012.01.05 20
3 Front Panel Assy 9318463033
2 Top Panel Assy 9318464023
1 Protective Net 9331640008
4
6
Cabinet Left Assy 9318461015
-- Emblem 9317903011
-- Drain Assy 9303029022
Switch Cover 9317692021
7 Base Assy 9316885066
5 Cabinet Right Assy 9316044050
8 Motor Bracket Assy 9316041011
10 Propeller Fan 9313808013
9 Fan Motor 9602724000
Ref. Description Part number
5
6
10
8
9
4
7
3
2
1
