Fujitsu AOU18RLXFW Service Manual

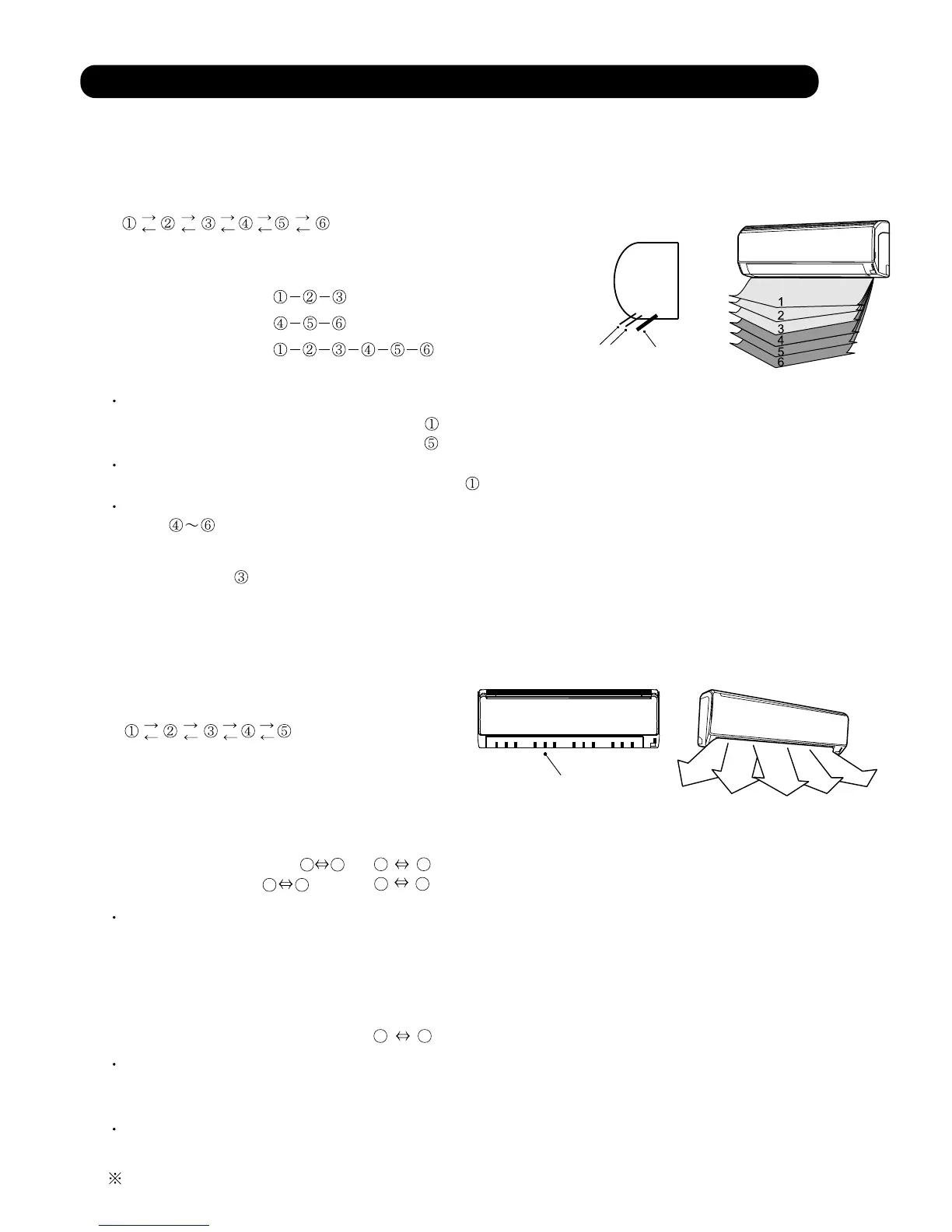

1-5. LOUVER CONTROL
Each time the button is pressed, the air direction range will change as follow:
(Function Range)
(Table9 : Operation Range)
01-07
Use the air direction adjustments within the ranges shown above.
The vertical airflow direction is set automatically as shown, in accordance with the type of operation selected.
Cooling / Dry mode : Horizontal flow
Heating mode : Downward flow
When the temperature of the air being blown out is low at the start of heating operation or during
defrosting, the airflow direction temporarily becomes to prevent cold air being blown onto the body.
During use of the Cooling and Dry modes, do not set the Air Flow Direction Louver in the Heating
range ( ) for long period of time, since water vapor many condense near the outlet louvers and
drop of water may drip from the air conditioner. During the Cooling and Dry modes, if the Air Flow
Direction Louvers are left in the heating range for around 30 minutes, they will automatically
return to position .
(Fig.7 : Virtical Air Direction Range)
Cooling / Dry / Fan mode( ) :
Heating / Fan mode( ) :
3. SWING OPERATION
When the swing signal is received from the remote controller, the vertical louver starts to swing.
(Swinging Range)
1 3
1
4
4
6
Vertical Airflow Swing Operation
Horizontal Airflow Swing Operation
When the swing signal is received from the remote controller, the horizontal louver starts to swing.
Cooling / Heating / Dry / Fan mode :
(Swinging Range)
5
1
Vertical and Horizontal Airflow Swing Operation
When the indoor fan is S-Lo or Stop mode, the swing operation is interrupted
and it stops at either upper end or bottom end.
When the indoor fan is S-Lo or Stop mode, the swing operation is interrupted
and it stops at either upper end or bottom end.
When the horizontal swing signal is input from remote control, the combination of the vertical
and horizontal swing operation is performed.
1
2
3
4
5
2. HORIZONTAL LOUVER CONTROL
Horizontal Louver
Each time the button is pressed, the air directionrange will change as follows.
(Function Range)
Cooling / Heating / Dry / Fan mode
(Fig.8 : Horizontal Air Direction Range)
Power Diffuser doesn't swing in any swing operation.
1. VERTICAL LOUVER CONTROL
Power DiffuserVertical Louver
<Wall Mounted Type>
ASU7/9/12RLF changes by manual.
3 6
Cooling / Dry mode
Heating mode
Fan mode
