Compressor status output
Signal on compressor operation status is generated when the compressor is running.

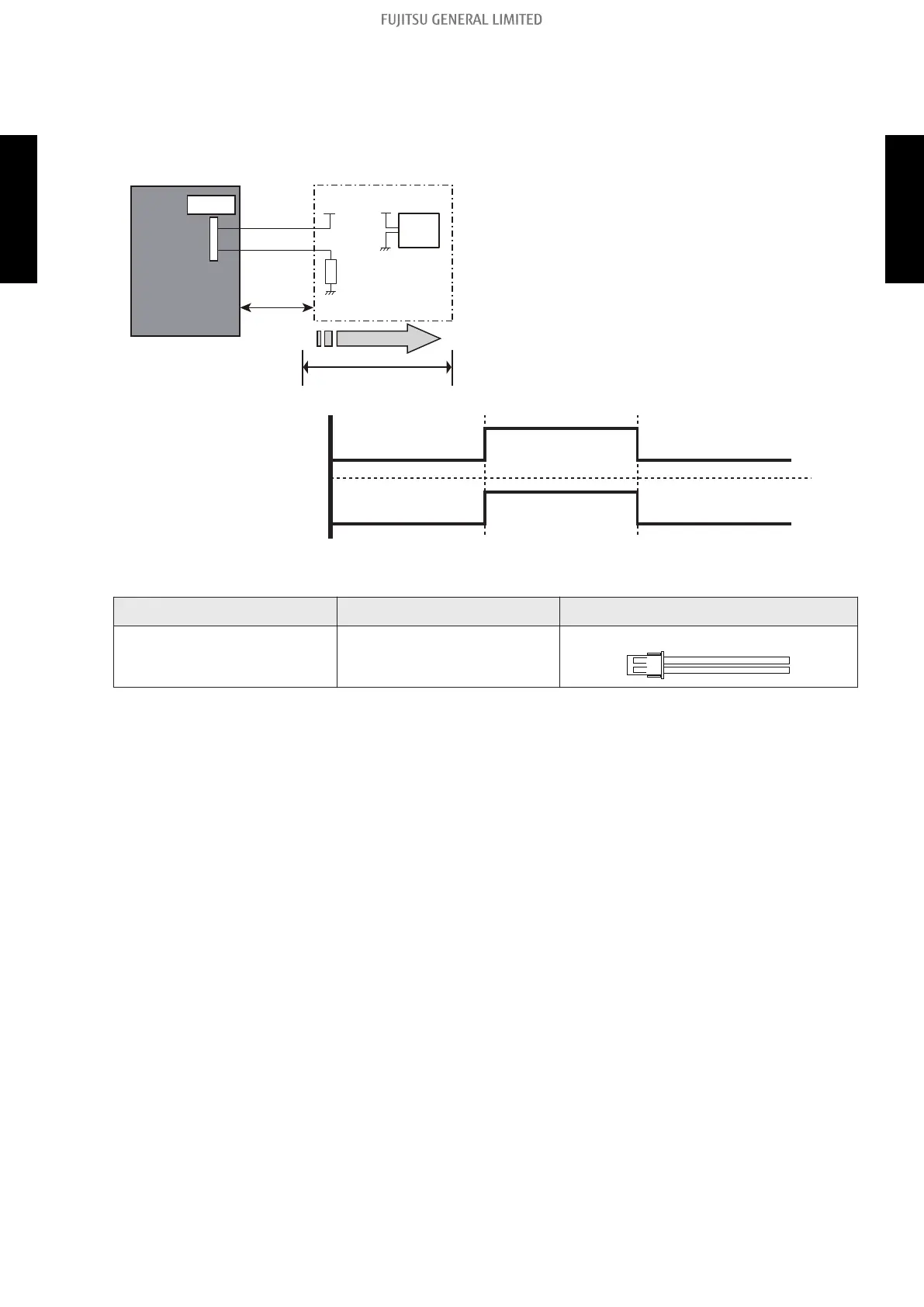

• Circuit diagram example
Signal
Outdoor unit
control PCB
Connected unit
Connector
1
2
Locally purchased
33 ft (10 m)*
Vcc
+
+
-
Load
Vcc
Power
supply
• 1: Power supply
Voltage (Vcc): DC 24 V or less
• 2: Load
DC 500 mA or less
• *: Make the distance from the PCB to the con-
nected unit within 33 ft (10 m).
Operation
Stop
On
Off
Compressor
status
Output signal
• Optional part
Part name Model name Exterior
External connect kit UTY-XWZXZ3
External output wire
- 138 -
12-2. External output 12. External input and output (For AOU42RGLX and AOU48RGLX)
