Evaporator

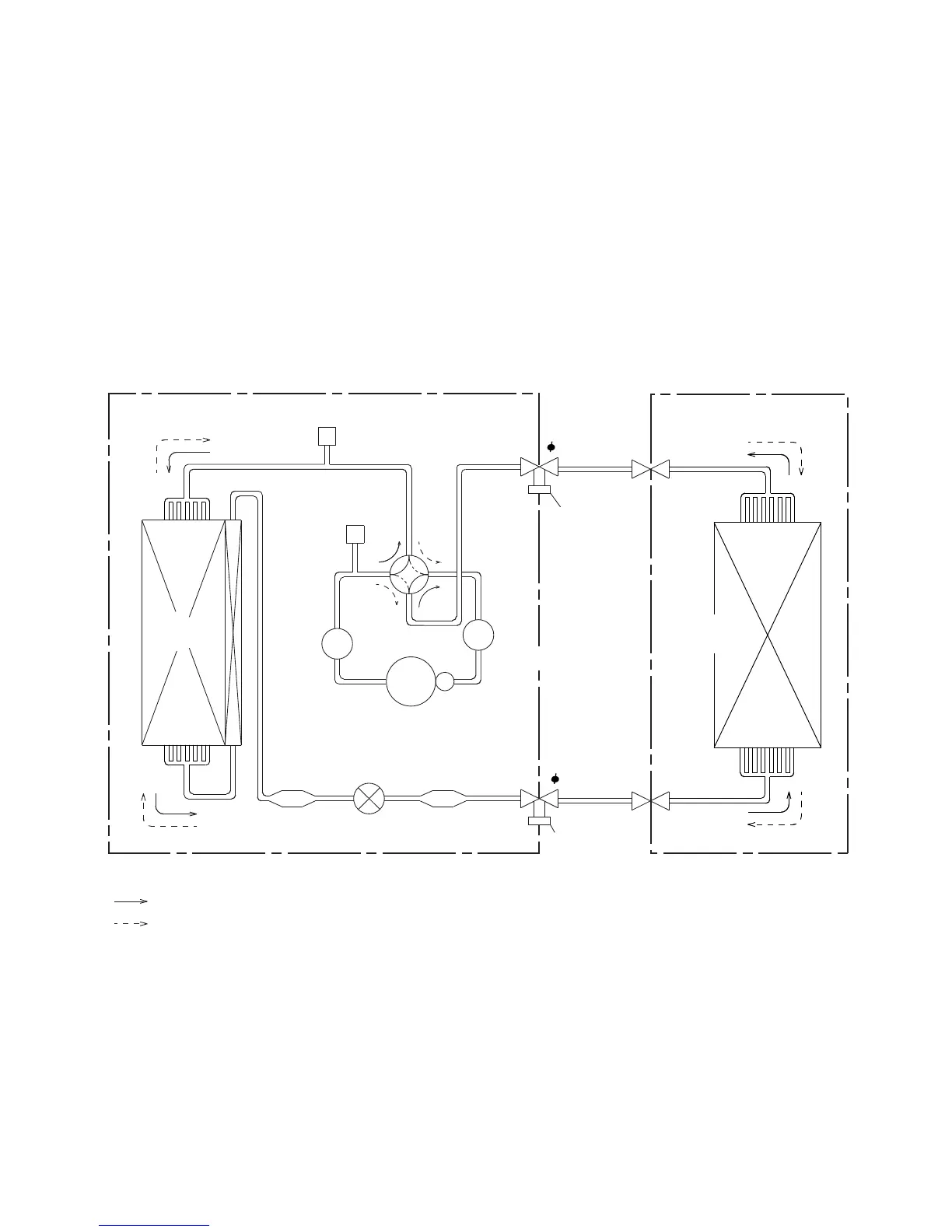

REFRIGERANT SYSTEM DIAGRAM
OUTDOOR UNIT
Pressure
Check Valve
Condenser
4-way
Valve
High Pressure
Switch
Accumulator
Muffler
Compressor
Expansion
Valve
Refrigerant Pipe
9.52mm (3/8")
Charging Valve
Charging
Valve
Refrigerant Pipe
15.88mm (5/8")
INDOOR UNIT
Strainer
Strainer
: COOL
: HEAT
Models : ABU36RSLX / AOU36RLX
2005.12.27 4
