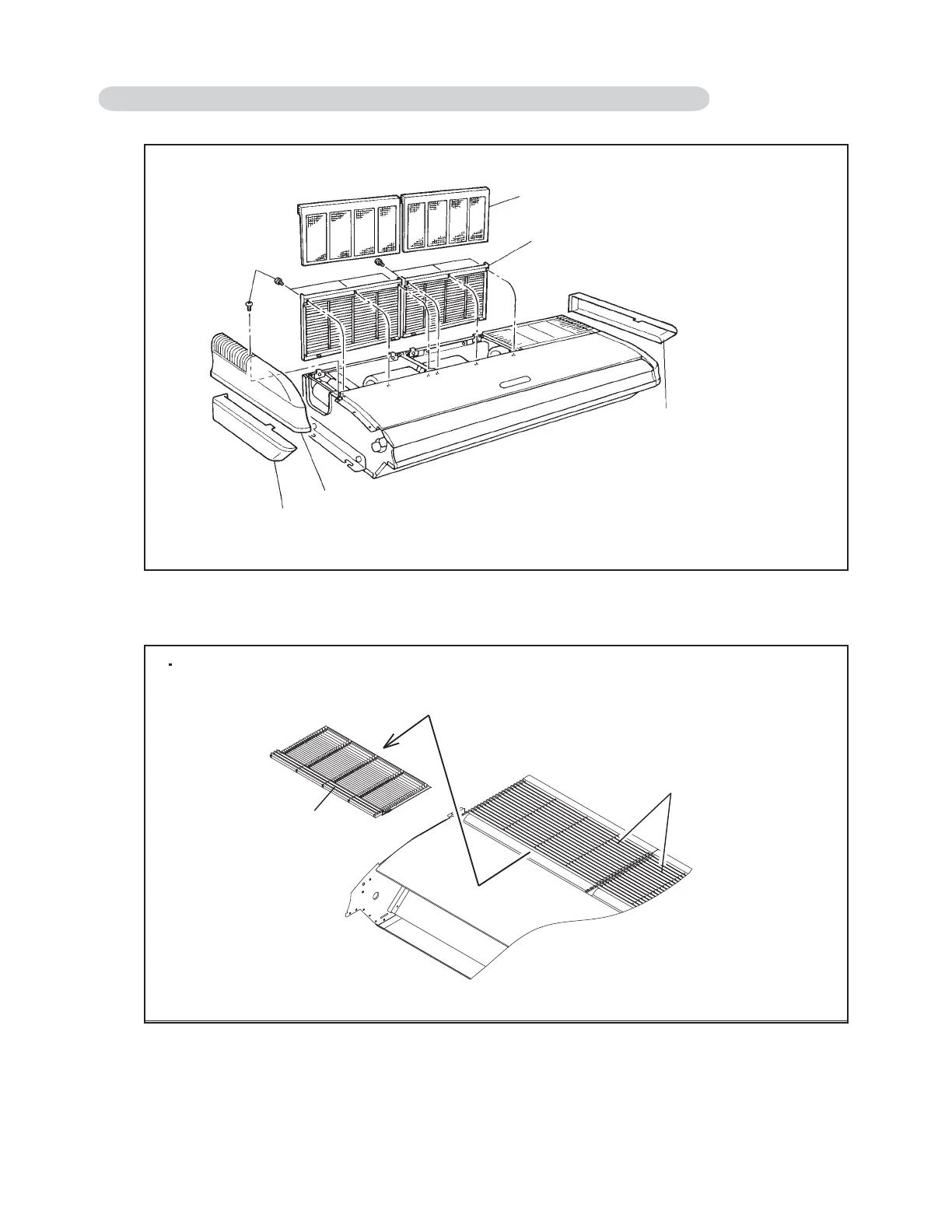

1. AIR FILTER removal
Remove the 2 AIR FILTERS.
INTAKE GRILLE
Tapping screw
AIR FILTER
INTAKE GRILLE
( 2 places )
AIR FILTER
( 2 places )
2-2 PARTS LAYOUT DRAWING ( For ABU36RSLX )
SIDE COVER A (RIGHT)
SIDE COVER B (RIGHT)
SIDE COVER B (LEFT)
