OUTDOOR UNIT AOU9-15RLFF OUTDOOR UNIT AOU9-15RLFF

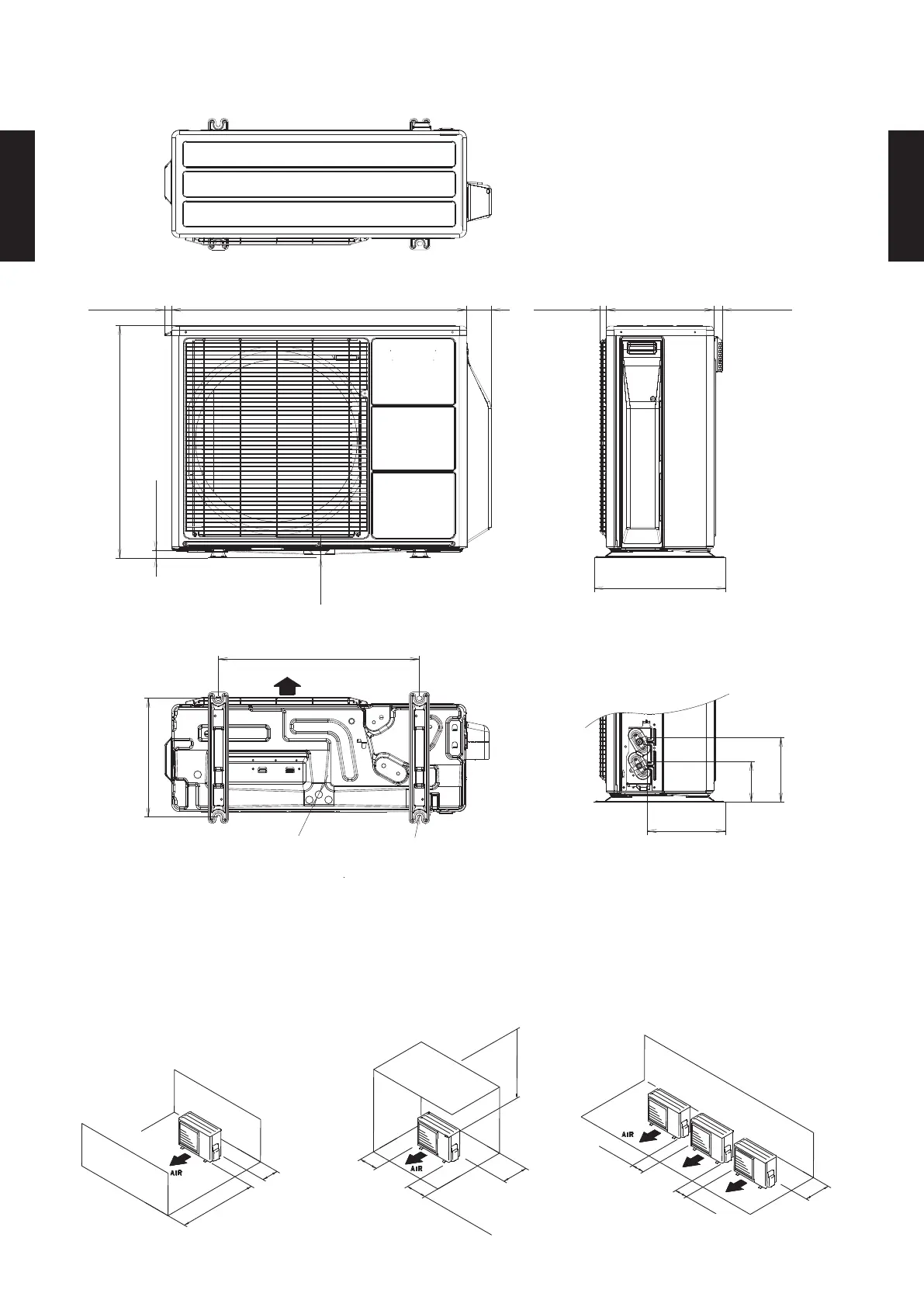

DIMENSIONS2.
MODEL

: AOU9RLFF, AOU12RLFF, AOU15RLFF
Unit: in. (mm)
INSTALLATION PLACE

Bottom view
Front view
Top view
Side view
Airflow
4-5/16
(110)
12-5/8 (320)
3/8 (9)
13/16 (20)
13/16 (20) 31-1/8 (790) 2-9/16 (65) 11/16 (18) 11-7/16 (290)
13-7/8 (352)
7/8 (23)
24-7/16 (620)
21-1/4 (540)
8-1/4 (209)
4-Ø7/16 (11.3) hole
6-7/8 (175)
Drain pipe
mounting place
Ø13/16 (20)
24 (600) or more
4 (100)
or more
24 (600) or more
12 (300)
or more
4 (100)
or more
12 (300) or more
(Service space)
10 (250)
or more
10 (250)
or more
12 (300)
or more
When there are obstacles at
the back or front sides.
When there are obstacles at
the back, side(s), and top.
When there are obstacles at the
back, side with the installation of
more than one unit.
