Fujitsu AOU9RLFF User Manual

- (02 - 04) -

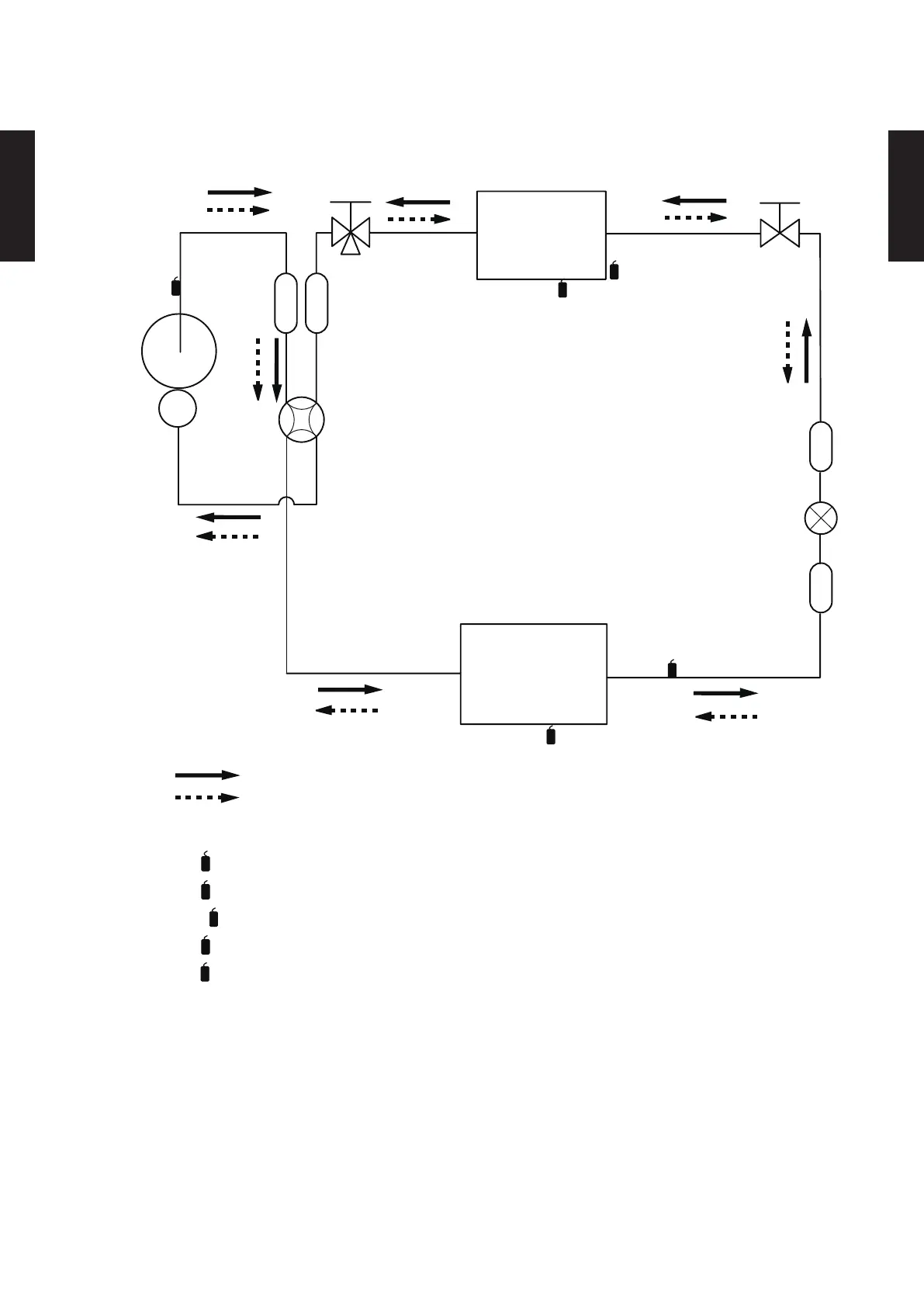

OUTDOOR UNIT AOU9-15RLFF OUTDOOR UNIT AOU9-15RLFF
MODEL

: AOU15RLFF
2-Way
valve
Strainer
Strainer
3-Way
valve
MufflerMuffler
4-Way valve
Expansion valve
Heat exchanger
( INDOOR )
Heat exchanger
( OUTDOOR )
Compressor
Cooling
Heating
Refrigerant pipe diameter
Liquid: 1/4" (6.35 mm)
Gas: 1/2" (12.70 mm): 15RLFF
Th
D
Th
R
Th
P
Th
HO
Th
O
: Thermistor (Discharge Temp.)
: Thermistor (Outdoor Temp.)
: Thermistor (Heat Exchanger Out Temp.)
Th
D
Th
O
Th
HO
: Thermistor (Room Temp.)
: Thermistor (Pipe Temp.)
Th
R
Th
P

Fujitsu AOU9RLFF Specifications

General

Brand	Fujitsu
Model	AOU9RLFF
Category	Air Conditioner
Language	English
