1. Compressor frequency control
1-1. Cooling operation
A sensor (room temperature thermistor) built in the indoor unit body will usually perceive difference
or variation between a set temperature and present room temperature, and controls the operation
frequency of the compressor.
• If the room temperature is 6.0 °C higher than a set temperature, the compressor operation fre-
quency will attain to maximum performance.
• If the room temperature is 1.0 °C lower than a set temperature, the compressor will be stopped.
• When the room temperature is within the range of +6.0°C to -1.0°C of the setting temperature, the
compressor frequency is controlled within the range shown in the table below. However, the maxi-
mum frequency is limited in the range shown in the figure below based on the indoor fan mode
and the outdoor temperature.
• Compressor frequency range
Model name Minimum frequency Maximum frequency
ASUG09LMAS 12 rps 67 rps
ASUG12LMAS 12 rps 89 rps
• Limit of maximum speed based on outdoor temperature
36°C
A zone
34°C
32°C
B zone
30°C
21°C
C zone
19°C
D zone
E zone
F zone
10°C
0°C
12°C
2°C
Outdoor
temperature drops
Outdoor
temperature rises
Unit: rps
Model name
Outdoor
temperature
zone
Indoor unit fan mode
HIGH MED LOW QUIET
ASUG09LMAS
A zone 67 47 36 26
B zone 67 47 36 26
C zone 67 47 36 26
D zone 54 42 34 26
E zone 54 42 34 26
F zone 54 42 34 26
ASUG12LMAS
A zone 89 54 38 26
B zone 89 54 38 26
C zone 89 54 38 26
D zone 62 44 38 26
E zone 62 44 38 26
F zone 62 44 38 26

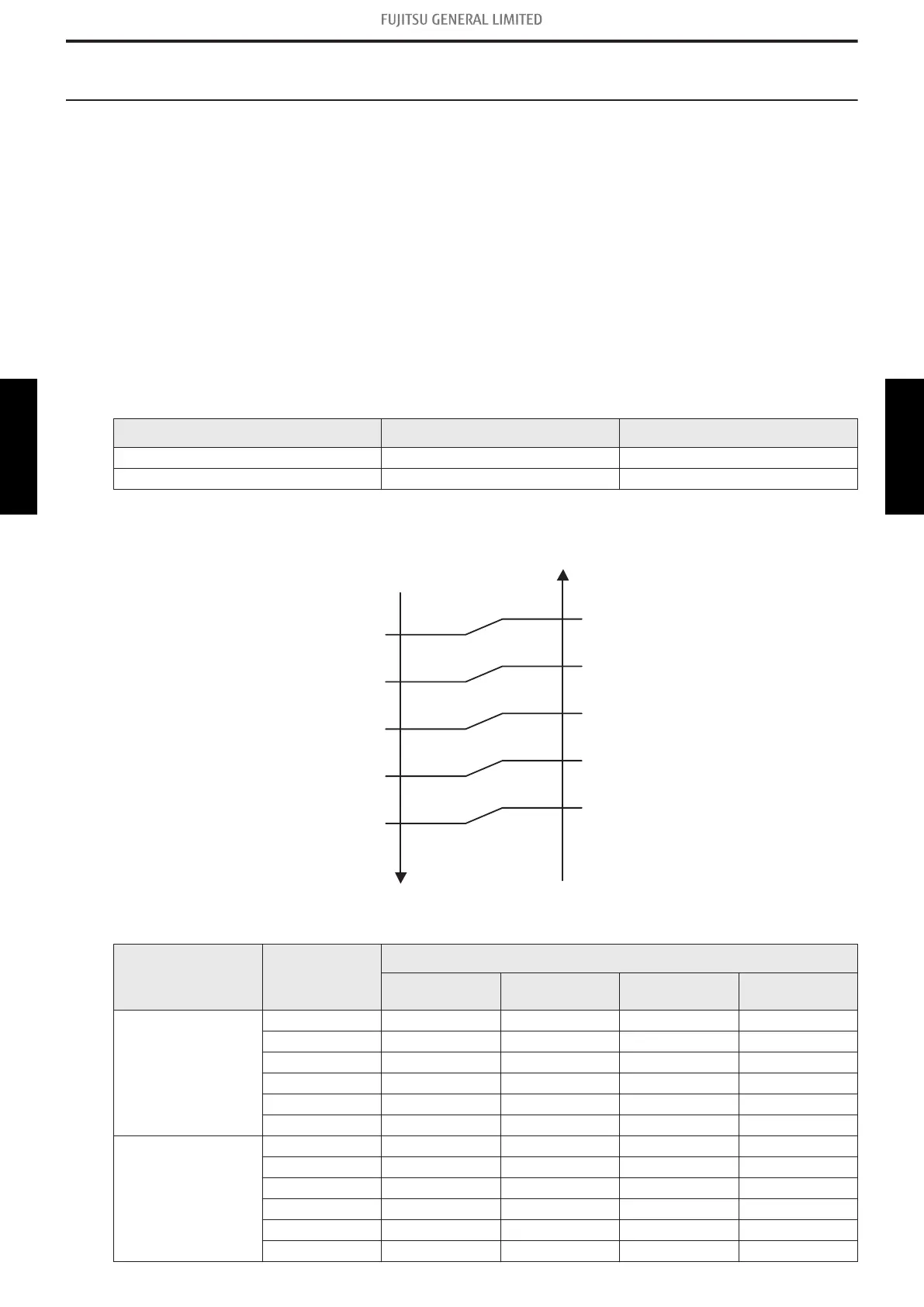

1-1. Cooling operation - (04-1) - 1. Compressor frequency control
