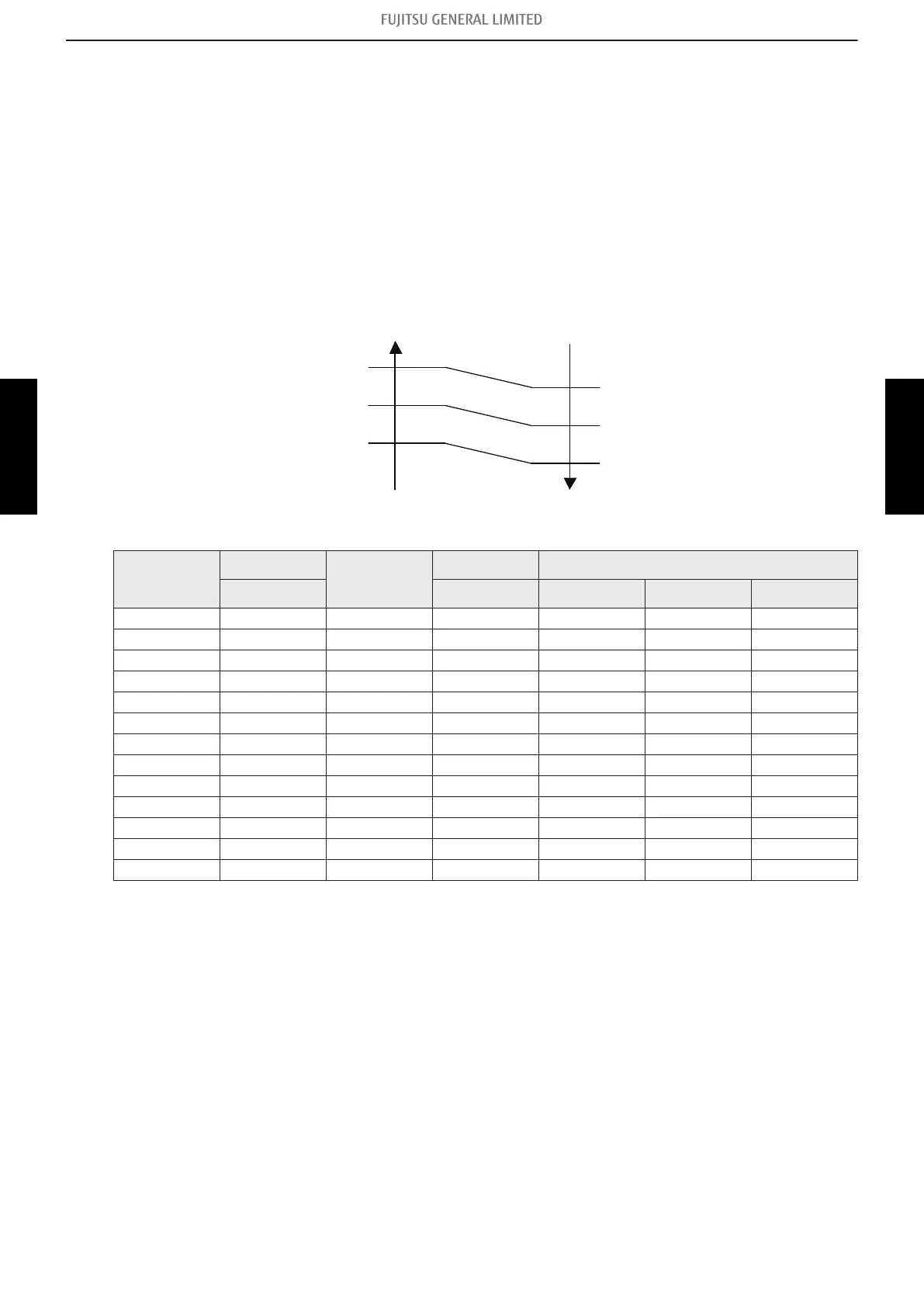

3-2. Outdoor fan control
¢ Outdoor fan motor
This outdoor unit has a DC fan motor. (Control method is different between AC and DC motors.)
¢ Fan speed
Model: AOUG09LMAS1
Fan speed is defined by outdoor temperature and compressor frequency.
Outside air temperature zone selection
21°C
Outside air
temperature rises
Z zone
Y zone
F zone
G zone
Outside air
temperature drops
12°C
2°C
19°C
10°C
0°C
Unit: rpm
Fan step
Cooling
Heating
Dry Cooling or dry
Y zone Y zone Z zone F zone G zone
S-HIGH2 1,070
S-HIGH1 990 1,070
HIGH1 990 1,070
10 1,070
9 990 1,070 990 350 260 200
8 990 1,070 990 350 260 200
7 820 1,040 820 350 260 200
6 820 820 820 250 200 170
5 820 700 820 220 200 170
4 740 610 740 220 200 170
3 660 510 660 220 200 170
2 610 510 610 220 200 170
1 600 510 600 220 200 170
NOTE:
After defrost control on the heating mode, the fan speed is kept higher regardless of the
compressor frequency.
Fan speed after defrost control: 1,070 rpm
