Fujitsu AOUG48LMAS1 User Manual

Parts information 8
Discharge pressure sensor (AOUG36/48LMAS1)
Check Point : Check Voltage from Main PCB
DC
With the connector connected to the PCB,
measure the voltage between CN92:2-3 of the Main PCB.

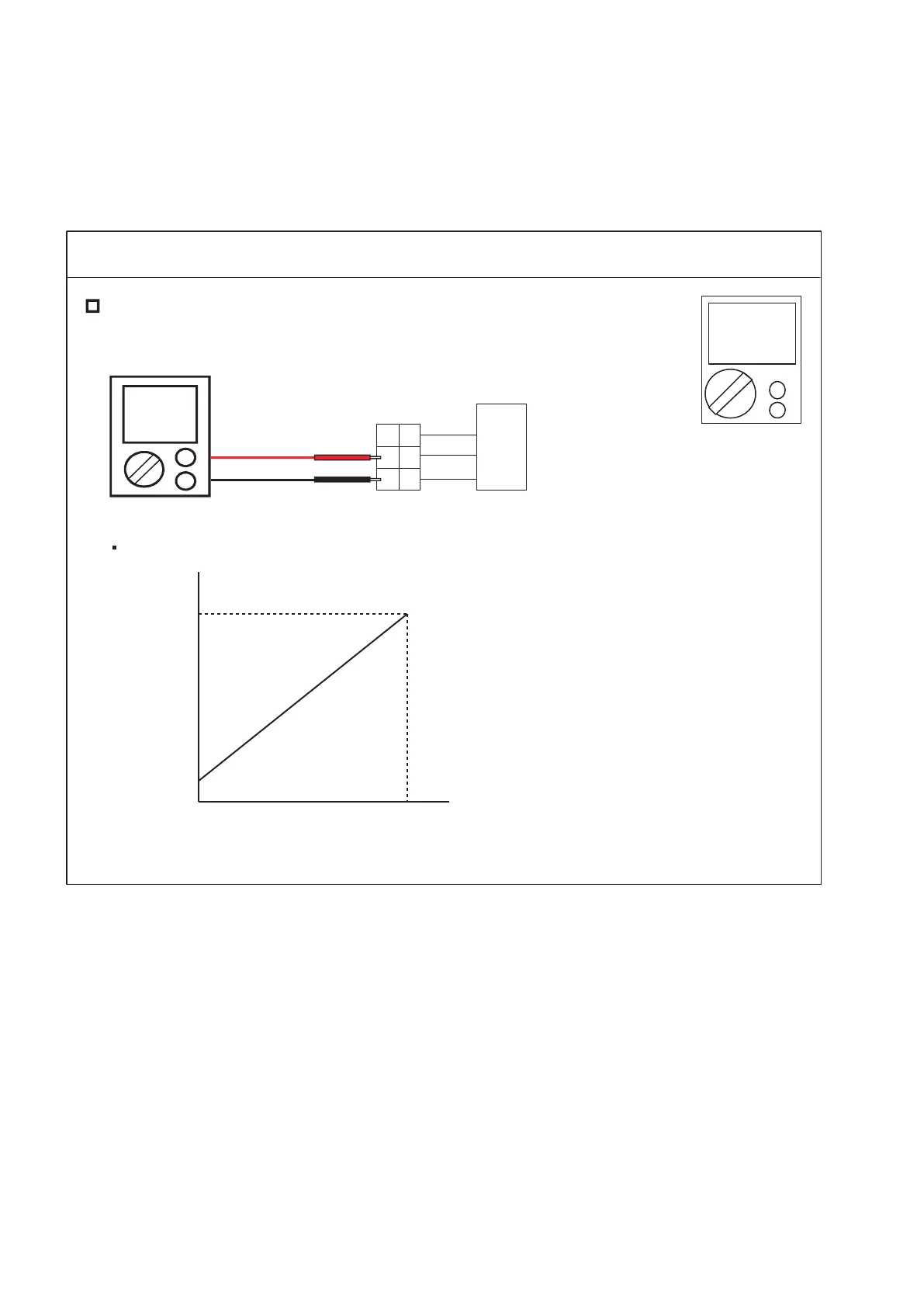

Characteristics of pressure sensor
4.5
5.0
0.5
0
Output [DCV]
Pressure [MPa]
DC
03-56
1
2
3
1
2
3
WHITE
DISCHARGE
PRESSURE
SENSOR
BLACK
RED
PS
CN92
+
-
