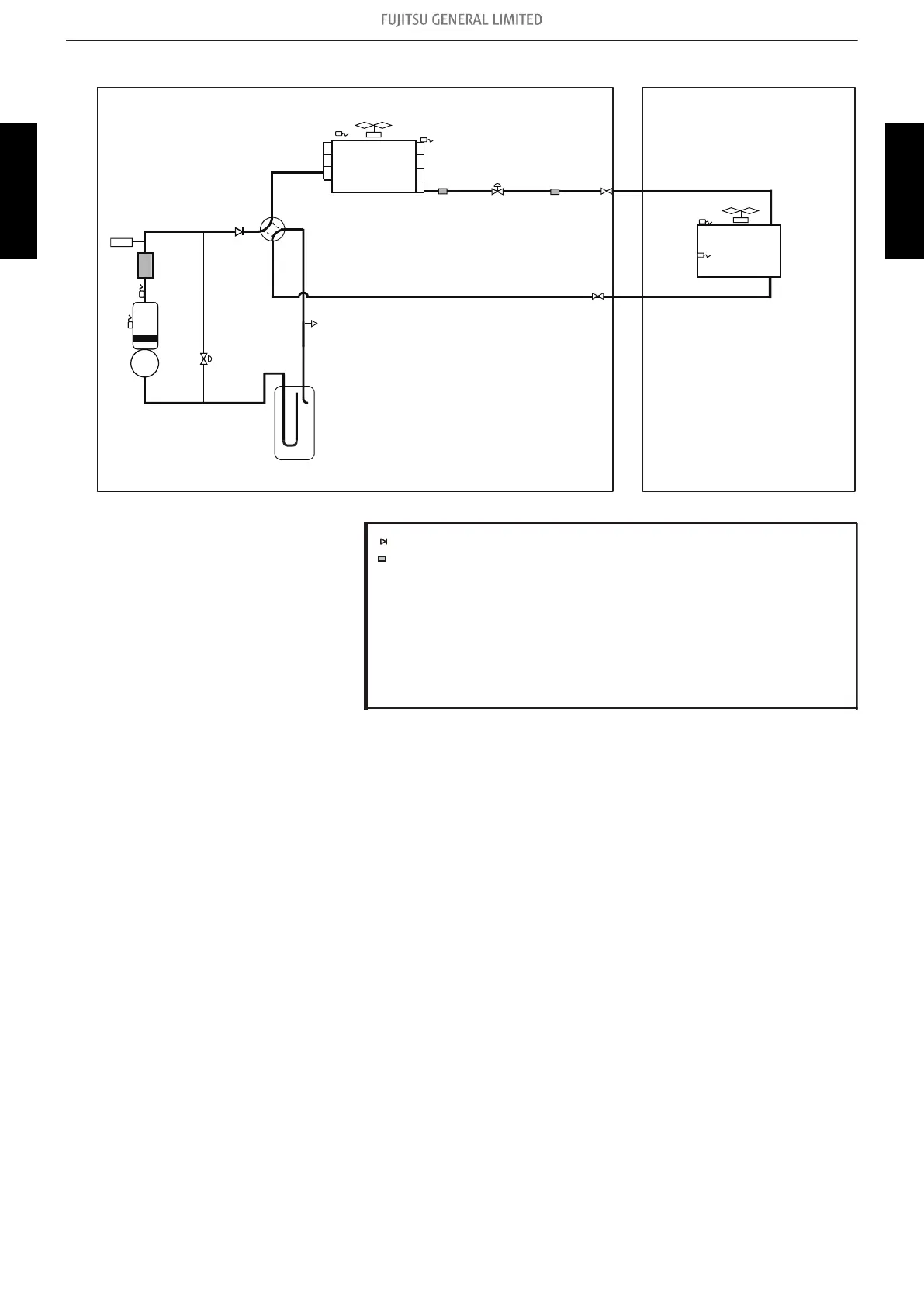

6-2. Models: AOUG36LMAS1 and AOUG48LMAS1
: Check valve
: Strainer
Outdoor unit
FAN
EEV
TH4
HPS
ACM
INV
HEX
4WV
CMP
ACM
CMP
INV
Indoor unit
HEX
FAN
Muffler
3WV
3WV
TH3
TH5
TH6
TH1
Fusible plug
EEV
: Thermistor (Outdoor temperature)
: Thermistor (Heat Exchanger Out temperature)
: Thermistor (Room temperature)
: Thermistor (Heat Exchanger Med temperature)
㼀㻴㻢
㼀㻴㻝
: Thermistor (Shell)
㼀㻴㻟
㼀㻴㻡
㼀㻴㻠
: Thermistor (Discharge temperature thermistor)
㼀㻴㻞
TH2
㻴㻱㼄
: Heat exchanger
㻭㻯㻹
: Accumulator
㻴㻼㻿
: High pressure sensor
㻠㼃㼂
: 4-way valve
㻱㻱㼂
: Electric expansion valve
㻯㻹㻼
: Compressor (Inverter type)
㻟㼃㼂
: 3-way valve
Belt heater
6-2. Models: AOUG36LMAS1 and AOUG48LMAS1 - (02-24) - 6. Refrigerant system diagrams
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Fujitsu AOUG48LMAS1 Specifications

General

Brand	Fujitsu
Model	AOUG48LMAS1
Category	Air Conditioner
Language	English
