10. Remote controller
10-1. Wireless remote controller
¢

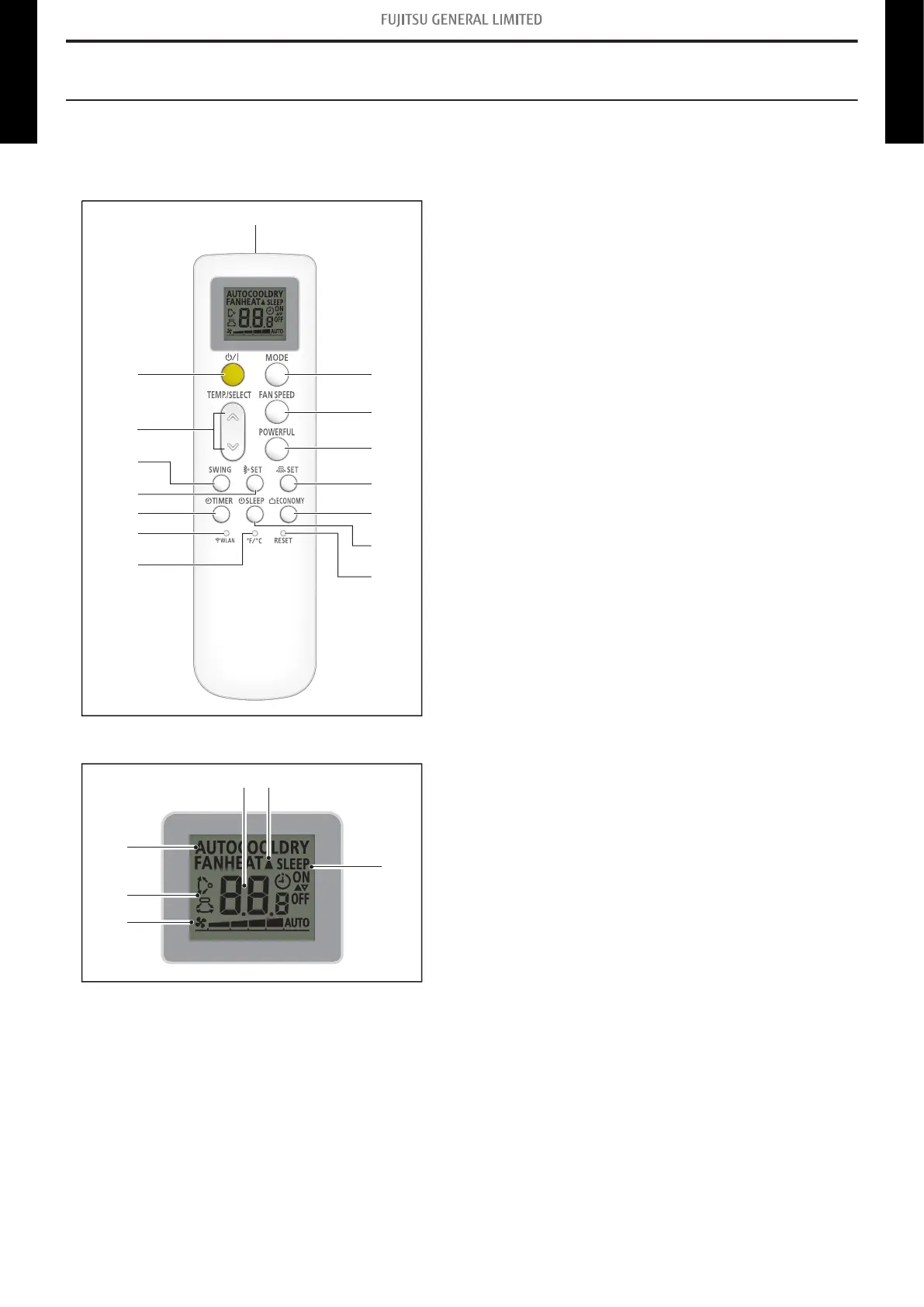

Overview
o
a
b
c
d
e
f
g
n
l
j
k
i
m
h
Display panel
p q
r
s
t
u
NOTES:
• Functions may differ by type of the indoor
unit. For details, refer to the operation manu-
al.
• This figure depicts all indicators that the re-
mote controller can display on the screen for
the functional explanation.
In actual operation, the remote controller
shows only the indicators that are appropriate
for the current process.
a MODE button
• Switches operation mode (AUTO, COOL, DRY, FAN, and
HEAT).
• Starts/ends the remote controller custom code (max. 4
types) change.
b FAN SPEED button
• Press the FAN SPEED button while the air conditioner is
operating, to control fan speed.
• Press and hold the FAN SPEED button for more than 5
seconds while the air conditioner is stopped, switch the en-
ergy saving fan control.
c POWERFUL button
d SET button (Left/right airflow)
e ECONOMY button
f SLEEP TIMER button
g RESET button
h °F/°C button
• Switches the temperature unit on the remote controller dis-
play.
• Press and hold the °F/°C button for more than 5 seconds to
enter Service check mode.
– Do not use Service check mode in normal use.
– If there seems to be a problem, check the error code by
referring to the Operation manual.
i WLAN button
• Starts the wireless LAN setting.
• Press and hold the WLAN button for more than 5 seconds
while the air conditioner is operating, to enter test run
mode.
j TIMER button
k SET button (Up/down airflow)
l SWING button
m TEMP./SELECT button
• Adjusts the setting temperature.
• Adjusts the value of the timer settings.
• Sets the remote controller code.
n START/STOP button
o Signal transmitter
p Temperature and time indicator
• Displays set temperature.
• In timer setting, it displays the timer time. After finishing the
timer setting, set temperature will reappear.
q Signal transmit indicator
r Timer mode indicator
s Fan speed indicator
t Swing indicator
u Operating mode indicator
