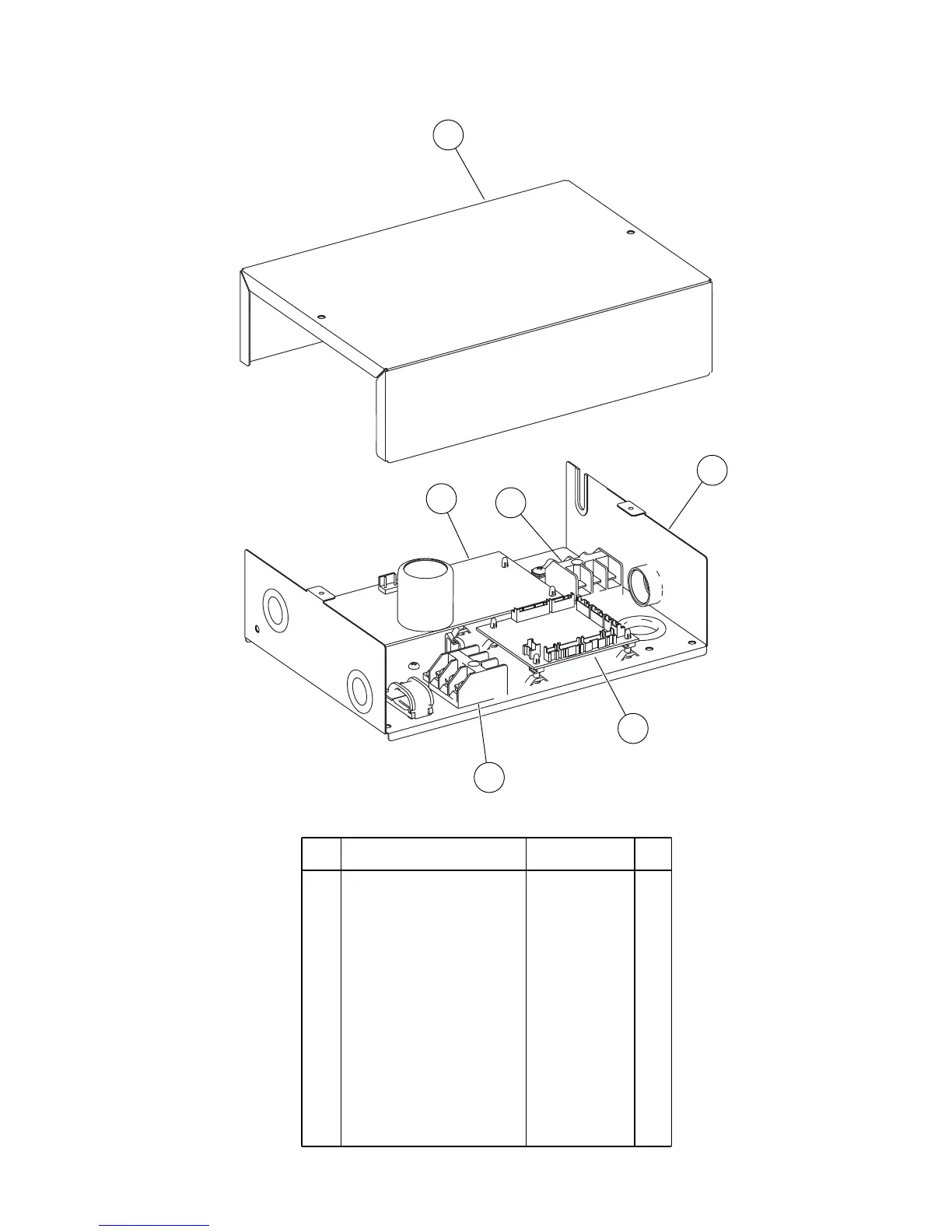

INDOOR UNIT
Control unit
61
62
63
64
65
66
61 Control Box Cover 9375512019
62 Control Box A 9375511012
63 Controller PCB Assy (09)
9707393194
63 Controller PCB Assy (12)
9707393200
63 Controller PCB Assy (14)
9707393217
63 Controller PCB Assy (18)
9707393224
64 Puwer Supply PCB Assy
9707398021
65 Terminal
9306489045
66 Terminal
9703345012
-- Pipe Thermistor
9703297014
-- Room Thermistor
9703299223
