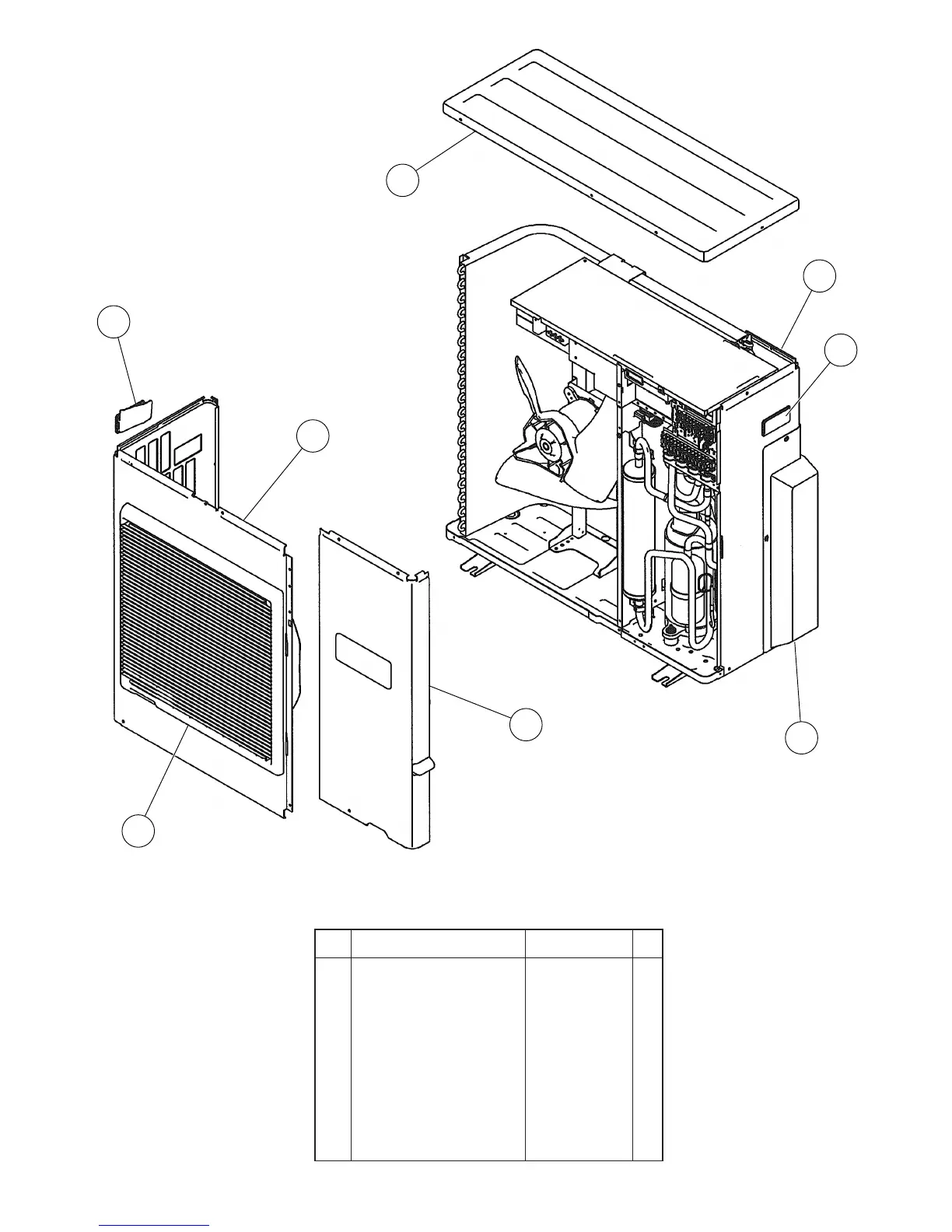

OUTDOOR UNIT
2007.12.11 22
4
2
1
5
7
9
6
3
1 Top Panel Sub Assy
2 Front Panel
3 Fan Guard
4 Grip Side
5 Service Panel Assy
6 Right Panel M
7 Valve Cover Sub Assy
9 Grip
9374417025
9374094066
9374330010
9374173013
9374415038
9374599028
9374827015
9374172016
Ref. Description Part number
