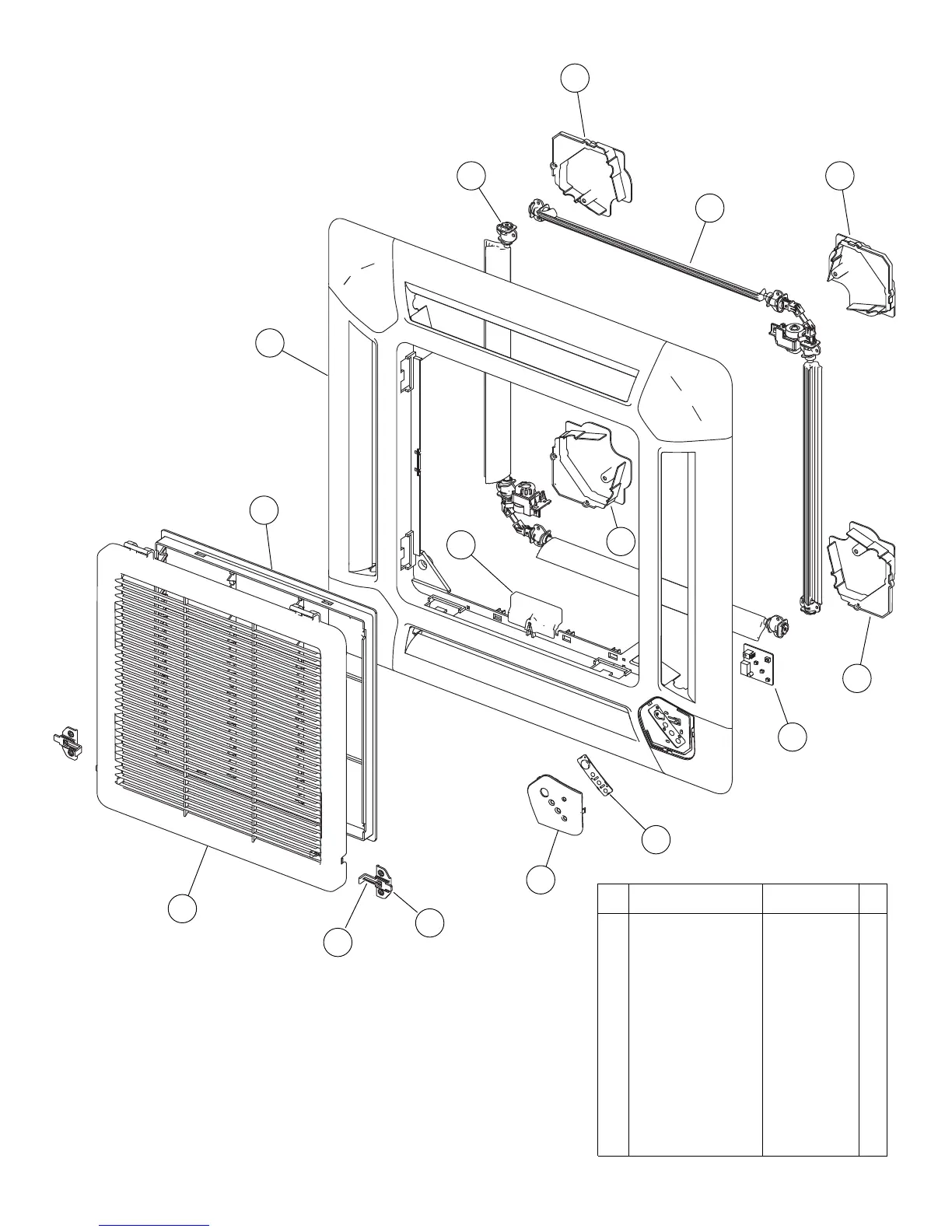

PARTS
DECORATION PANEL
UTG-UFYB-W
Ref. Description
1 Decoration Panel
without Insulations
9375525026
2 Display Panel 9375529055
3 Receiver Window 9375547011
4 Intake Grille 9375531027
5 Long Life Filter 9375533014
7 Flap Total Assy 9377760012
8 Hook Bracket
9375546014
9375532024
9375530013
9 Grille Hook
10 Panel Cover
without Insulations
11 Indicator PCB Assy 9707371024
12 Connector Cover 9375549015
Part number
