6
8
7
5
2
4
3
1

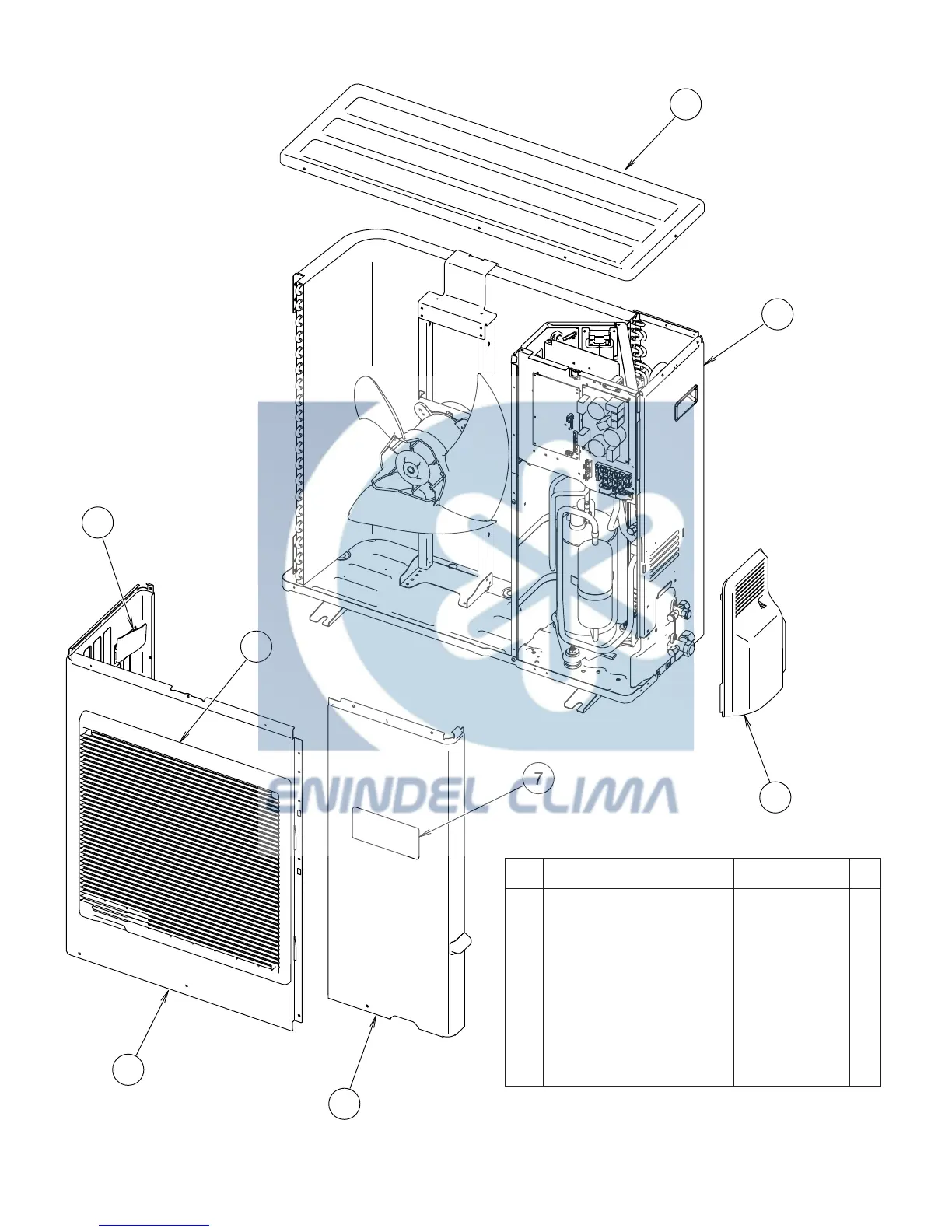

OUTDOOR UNIT
2008.01.18 23
1 Top Panel Sub Assy 9374417032
2 Front Panel 9374094066
3 Fan Guard 9374330010
4 Grip Side 9374173013
5 Service Panel Sub Assy 9374415052
6 Right Panel Sub Assy 9374416127
7 Emblem Rear 9351355005
8 Valve Cover 9374174010
