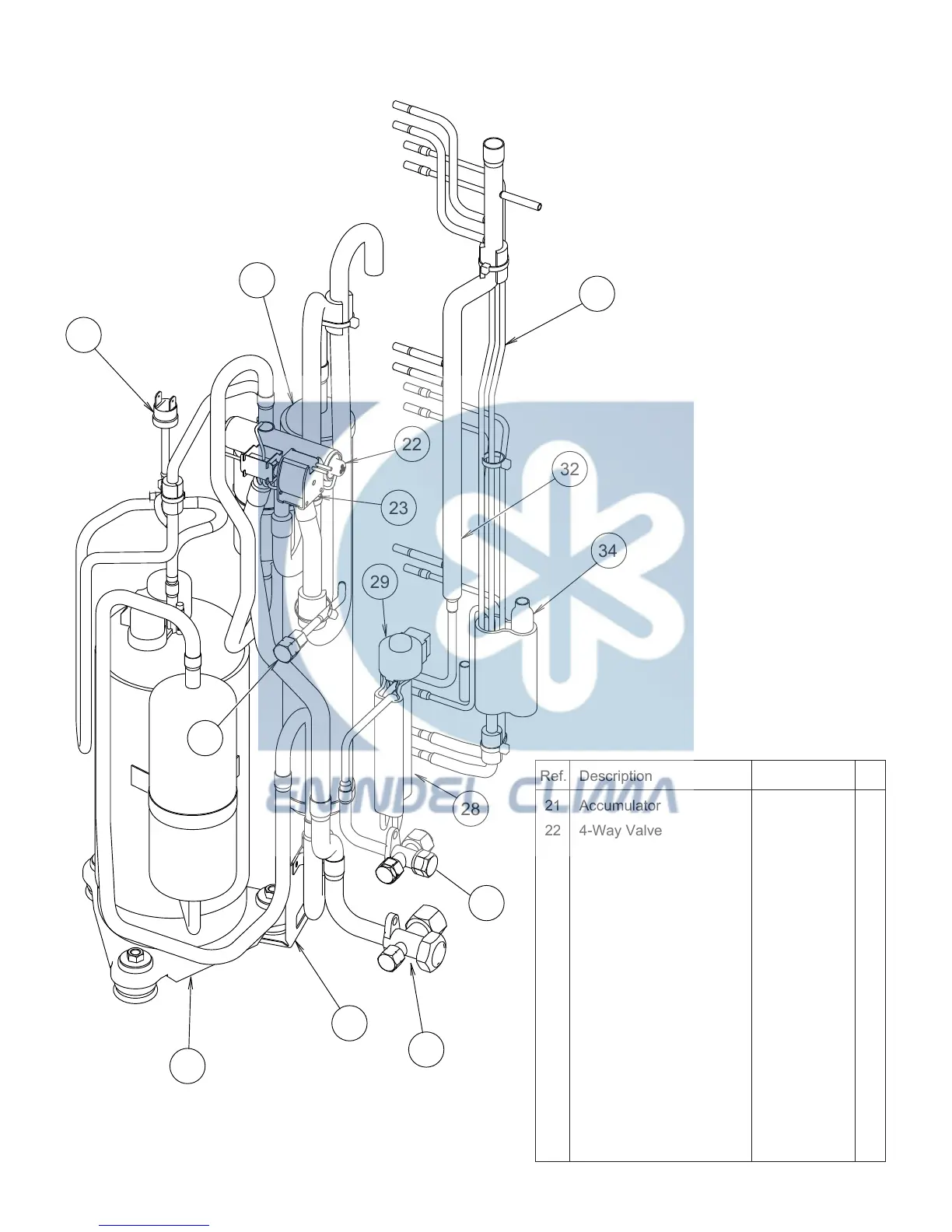

OUTDOOR UNIT
2010.05.07 25
Ref.
34 Strainer Assy 9372524015
-- Discharge Pipe Assy 9372264249
31 3-Way Valve Assy 9377958013
30 3-Way Valve Assy 9377959010
27 Check Joint Assy 9372802038
25 Compressor Assy 9810135001
21 Accumulator 9385005006
22 4-Way Valve 9900164010
23 Solenoid 9970055034
24 Pressure Switch 9900186012
32 Inlet Pipe (Cond) A Assy 9373461067
26
Accumulator Support Assy
9355351003
33
Outlet Pipe (Cond) A Assy
9374266104
28 Expansion Valve Assy 9370947144
29 Coil (Expansion Valve) 9900057039
