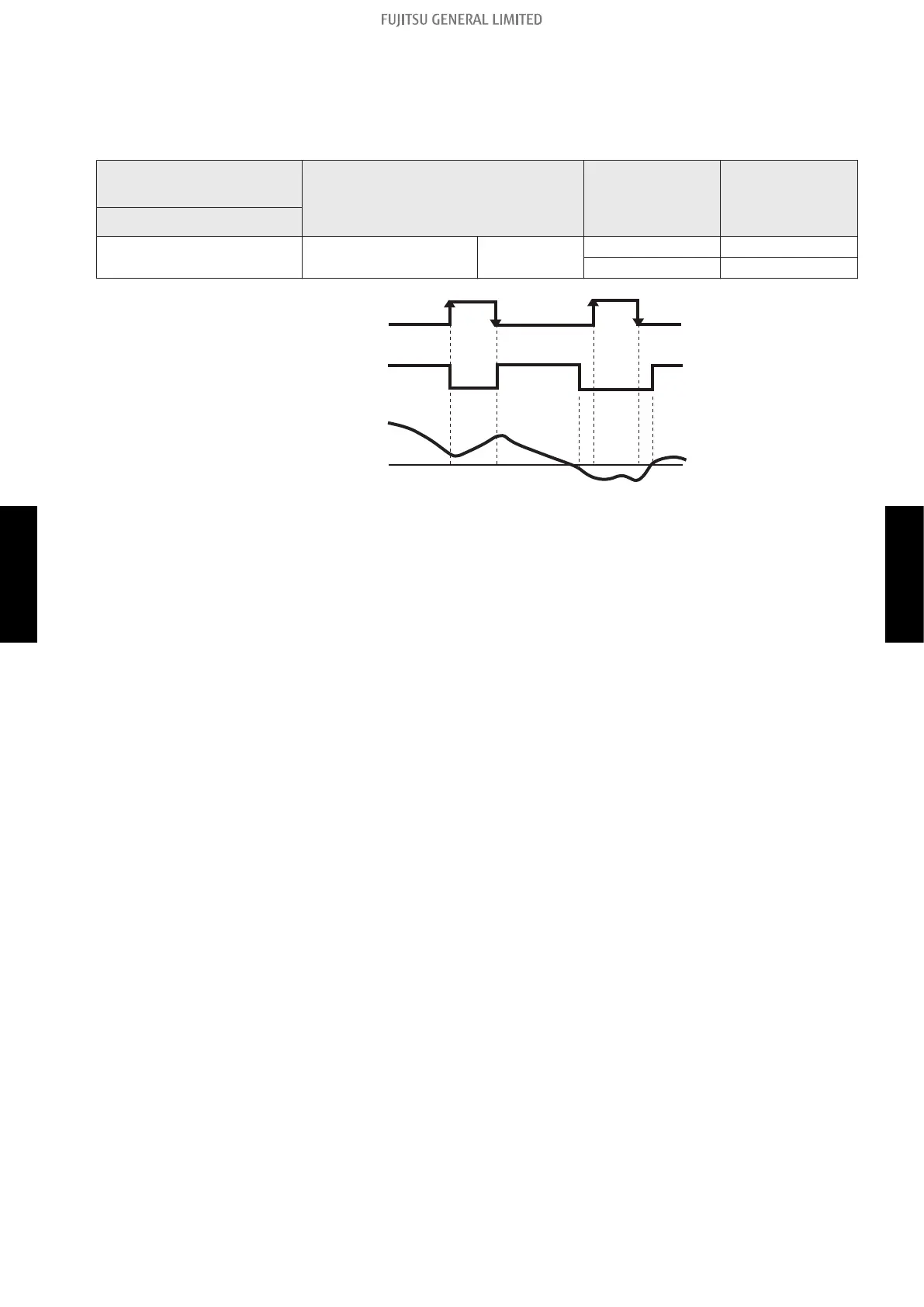

NOTE: →hen “Operation/Stop” mode 2 function is used with forming a remote controller group,
connect the same equipment to each indoor unit within the group.
¢
Forced thermostat off
External input and output
PCB
External input Input signal Command
Rotary switch
2, B, C
External input and
output PCB
CN313
Off  On Thermostat off
On  Off Normal operation
On
Off
On
Off
Compressor
Room temp.
Set temp.
CN313
2-4. Details of control input function - (05-19) - 2. External input and output
FIELD
WORKING
FIELD
WORKING
