Input signal type
• Indoor unit
Input signal type is only "Edge".
• External Input and Output PCB
The input signal type can be selected.

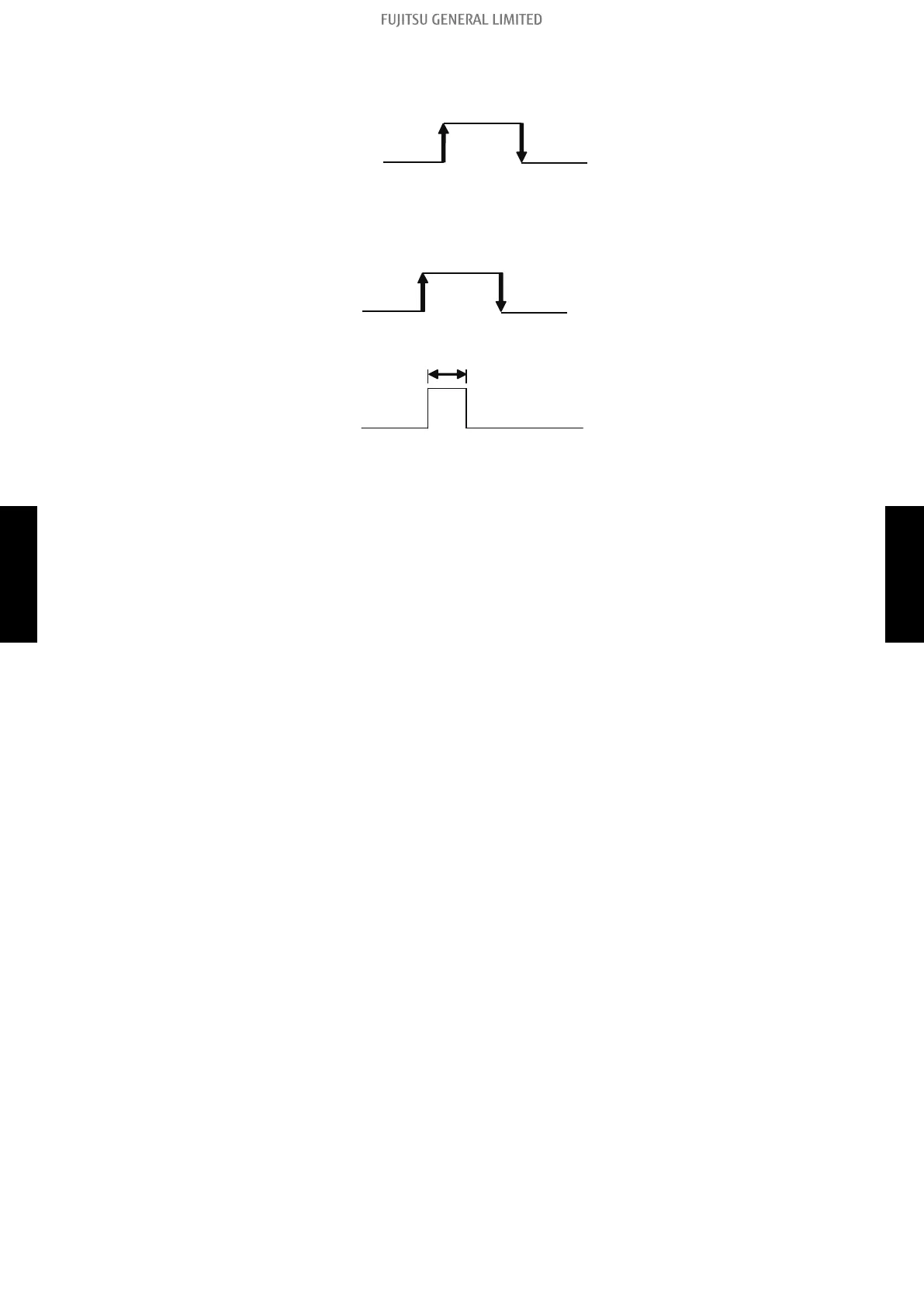

Signal type (edge or pulse) can be switched by the DIP switch 2 (SW302) on the External Input
and Output PCB.
Edge
Pulse
The width of pulse must be
longer than 200 msec.
NOTE: The input signal supports the following switch type:
• Edge: Alternate type switch
• Pulse: Momentary type switch
2-1. External input - (05-12) - 2. External input and output
