18
2011.12.12

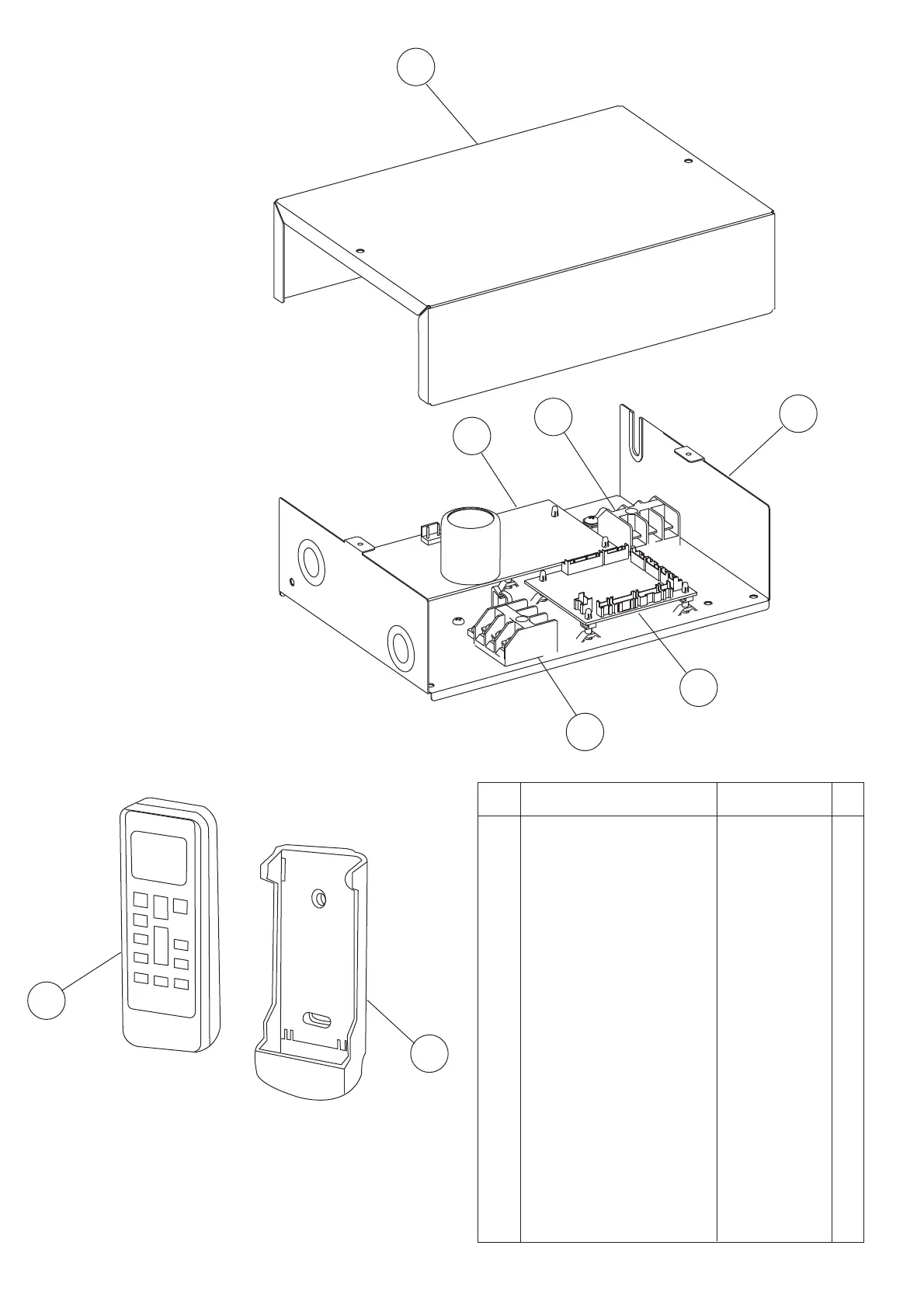

INDOOR UNIT
Control unit
41
42
43
44
47
48
45
46
41 Control Box Cover 9375512019
42 Control Box A 9375511012
43
43
Controller PCB Assy (12) 9707393927
43 Controller PCB Assy (14) 9707393934
Controller PCB Assy (18) 9707393941
44 Power Supply PCB Assy 9707398250
45 Terminal 9306489045
46 Terminal 9703345012
-- Pipe Thermistor 9703297014
-- Room Thermistor
9900502003
47 Remote Control 9379219006
48 Remote Control Holder 9305642045
