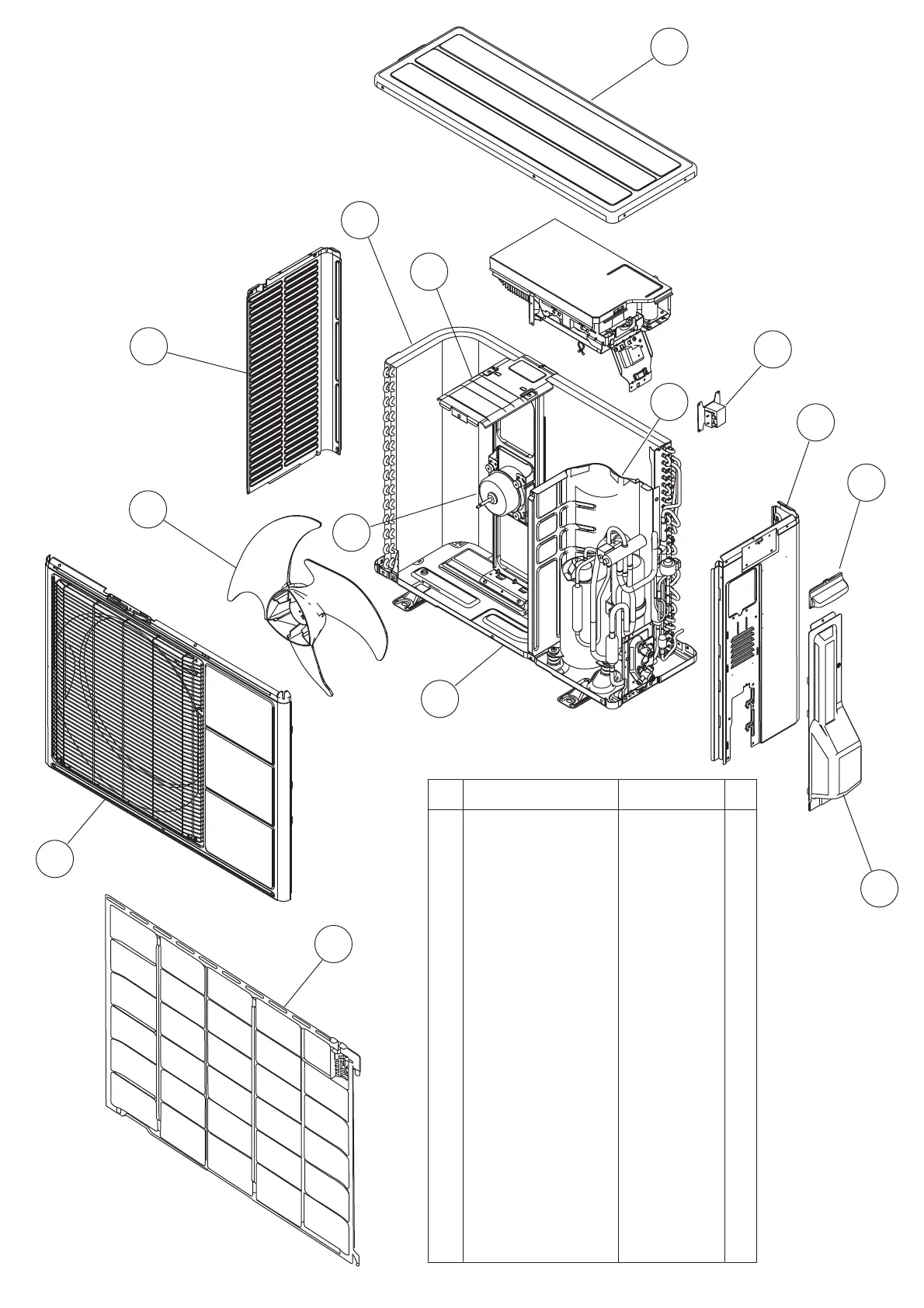

OUTDOOR UNIT
PARTS
2011.03.17 15
2 Front Panel Assy 9318463026
1 Top Panel Assy 9318464030
13 Protective Net 9331640015
14
Condenser Sub Assy
9317089029
3
6
Cabinet Left Assy 9318461008
-- Emblem 9319151007
-- Drain Assy 9303029022
Switch Cover Assy 9318499001
7 Base Assy 9316885028
4 Cabinet Right Assy 9318462012
10 Motor Bracket 9316041011
12 Propeller Fan 9313808013
8 Separator Sub Assy 9331722001
9 Reactor Assy 9900641016
5 Grip 9317588003
11 Fan Motor 9602724017
Ref. Description Part number
4
9
6
12
10
11
5
8
3
14
7
2
13
1
To Next Page
