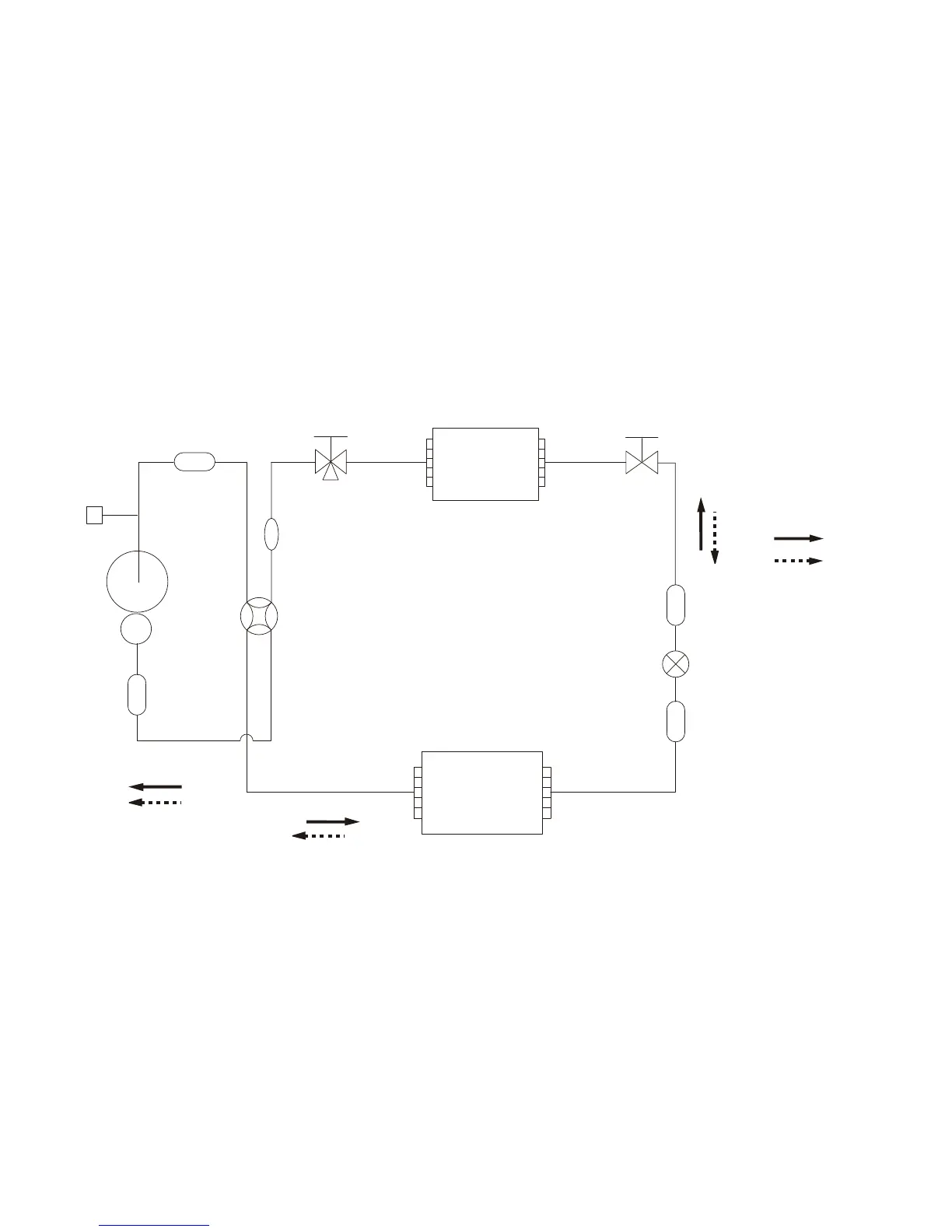

REFRIGERANT

SYSTEM DIAGRAM

2-way valve

Strainer

3-way valve

Muffler

Pressure

switch

4-Way valve

Expansion valve

Heat exchanger

(Indoor unit)

Heat exchanger

(Outdoor unit)

Sub-accumulator

Compressor

Cooling flow

Heating flow

Refrigerant pipe diameter

[18]

Liquid : 1/4” (6.35 mm)

Gas : 1/2” (12.7 mm)

[24]

Liquid : 1/4” (6.35 mm)

Gas : 5/8” (15.88 mm)
