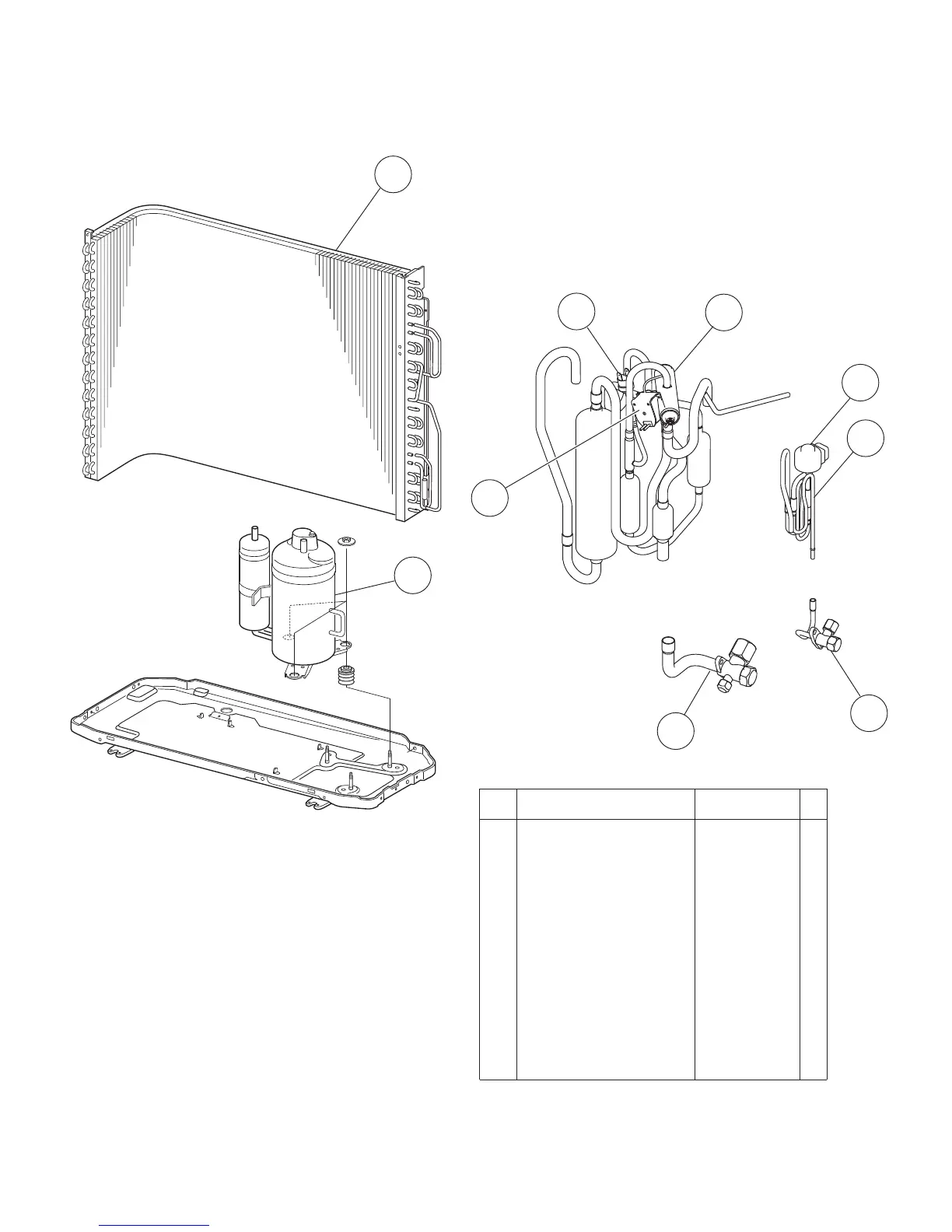

OUTDOOR UNIT
19
2011.02.18
23
22
25
26
24
27
29
21
28
Ref
Parts number
Description
27
9315311061
4-way Valve Assy
26
9970095030
Expansion Valve Coil
28
9970055065
Solenoid
22
9313062019
2-way Valve Assy
21
9315414014
3-way Valve Assy
29
9900186012
Pressure Switch
25
9314494048
Pulse Motor Valve Assy
24
9315297068
23
9312069163
Condenser Sub Assy
Compressor Assy
19
21
Table of Contents
Table of Contents
1
Room Air Conditioner
1
Wall Mounted Type
1
Specifications
2
Dimensions
3
Refrigerant System Diagram
4
Circuit Diagram
5
Indoor Pcb Circuit Diagram
6
Outdoor Pcb Circuit Diagram
9
Error Detection
14
Parts (Indoor Unit)
15
Parts (Outdoor Unit)
19
Accessories
22
