Fujitsu AOYG24LFL User Manual

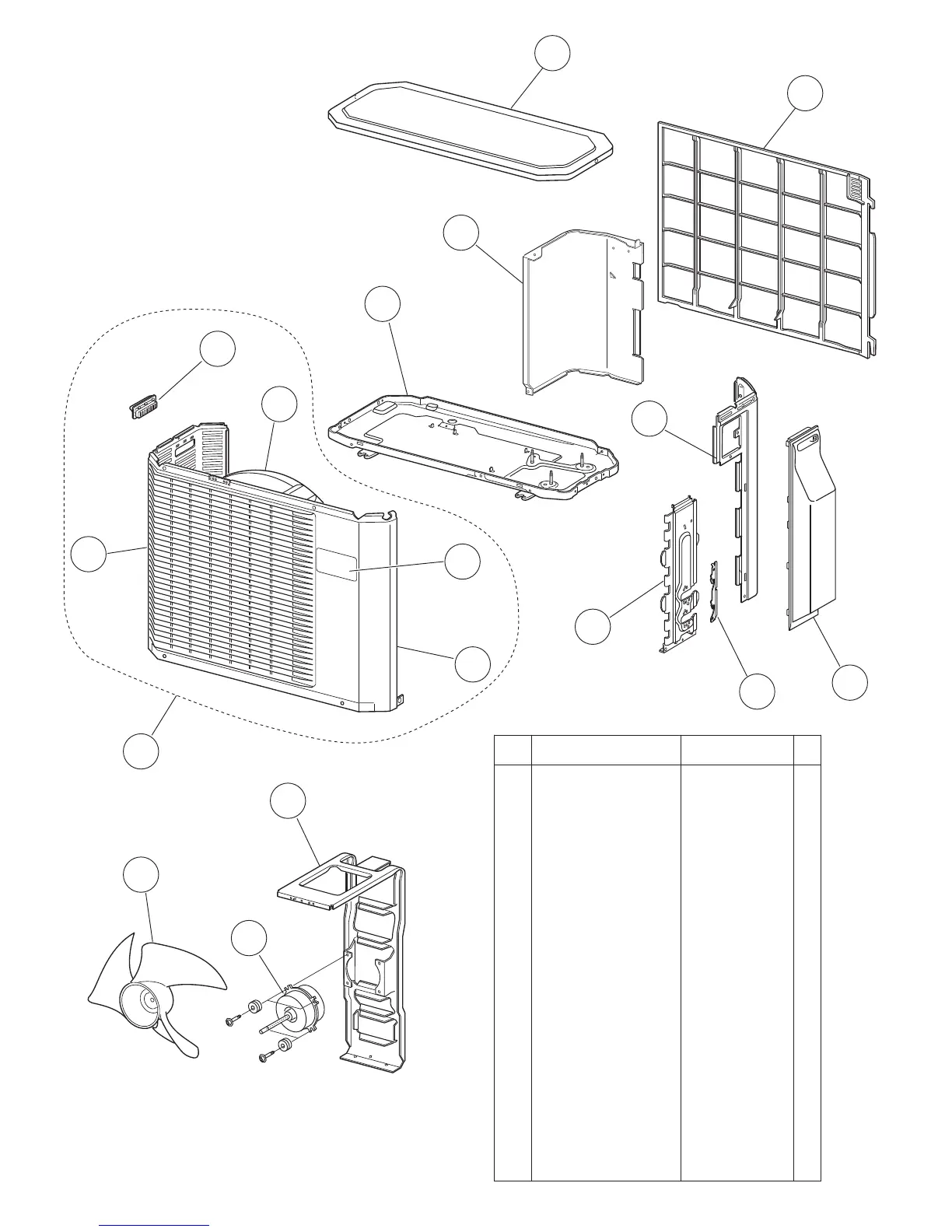

OUTDOOR UNIT
PARTS
18
2010.04.23
9
10
11
17
12
13
4
6
5
7
16
3
15
14
2
1
8
12 9315296054Base Assy
13 9315213013Separator
9 9309237032Switch Cover Assy
3 9312799398Cabinet Assy
7 9308880017Grip
16 9309909014Propeller Fan
8 9319151007Emblem Rear
14 9313432027Motor Bracket Assy
6 9308885012Fan Ring
5 9308884015Blow Grill
15 9603019006DC Brushless Motor
1 9315033017Protective Net
2 9309230064Top Panel Assy
10 9309236028Cabinet Right Assy
11 9308870070Valve Bracket
17 9316884007Valve Cover
4 9314809019Cabinet Sub Assy
