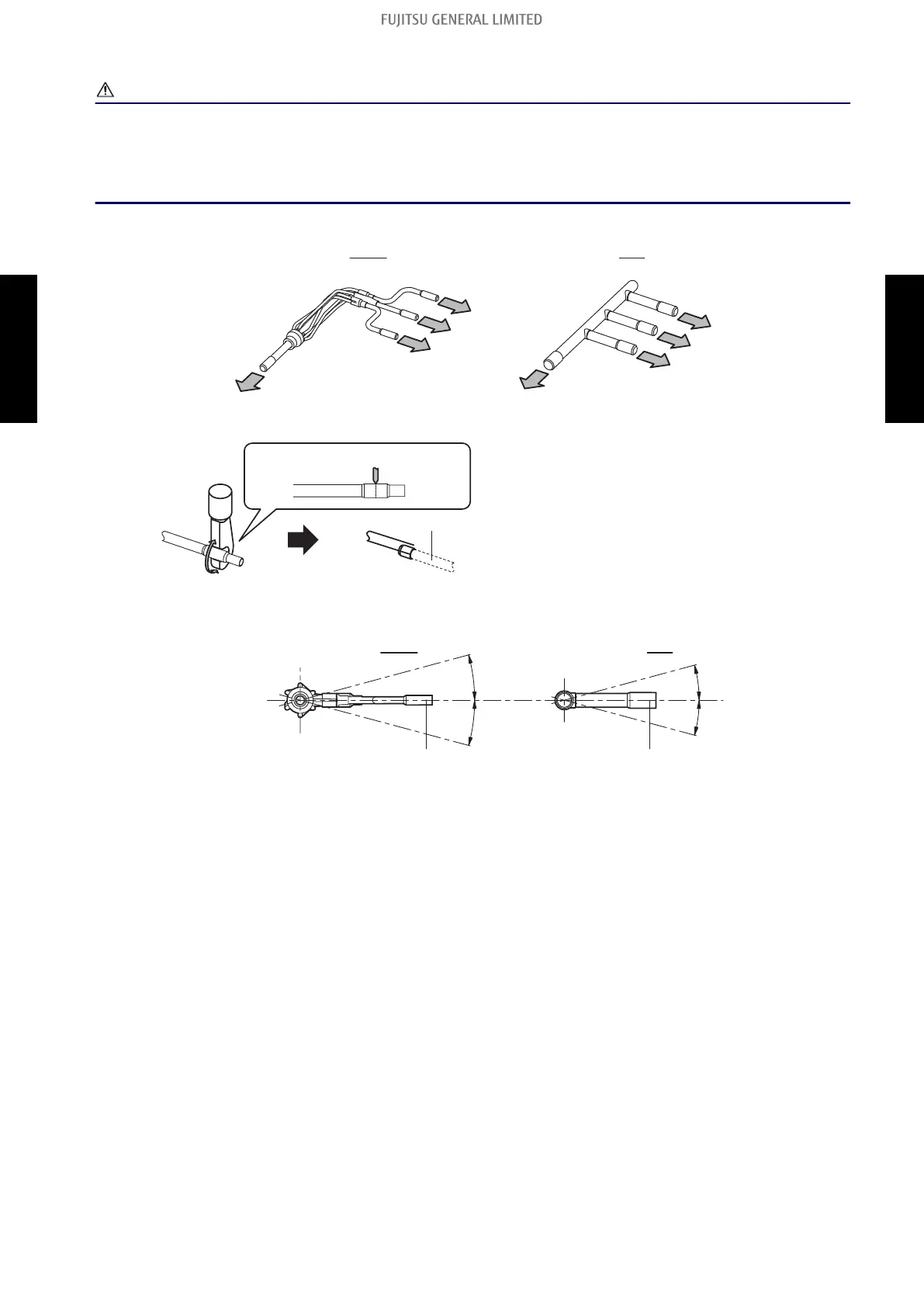

Installation procedure for Triple type
CAUTION
• Do not mistake the direction of connection.
•
Set the piping from the branch pipe to the indoor units to be the same length. (Max. difference: 8
m)
• Shorten the length of the piping after branching as much as possible. (Max. length: 20 m)
1. Check the direction of connection.
Indoor unit
I
ndoor unit
Indoor unit
Indoor unit
Indoor unit
Indoor unit
Outdoor unit
Outdoor unit
Liquid
Gas
2. If the diameter of the connection piping is too large, use a pipe cutter to cut as shown below.
Cut in the center of the connections
locally purchase
d
• Always use a pipe cutter.
• After cutting, remove the burr and clean the cut section.
3. Check the positioning of branch pipes.
If it is placed horizontally, keep it within ±15°. Otherwise, it will not separate the refrigerant
evenly, causing a reduction in performance.
Liquid Gas
To indoor unit
To indoor unit
°51+°
51+
°51-°51-
- 111 -
3-4. Branch pipes 3. Pipe installation
SYSTEM
DESIGN
SYSTEM
DESIGN
